Sheet Metal Tile Curving Machine

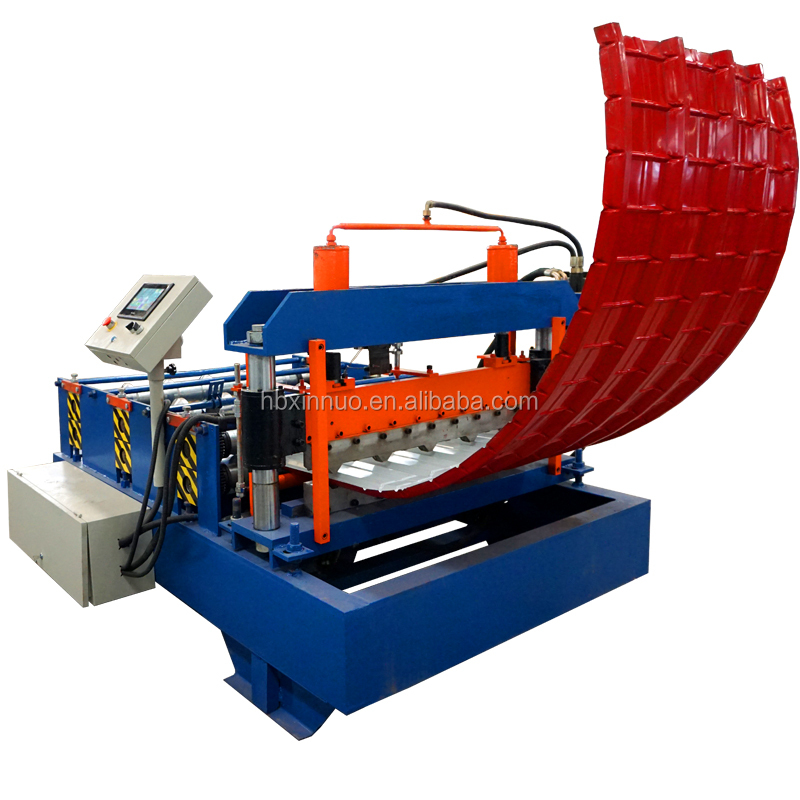

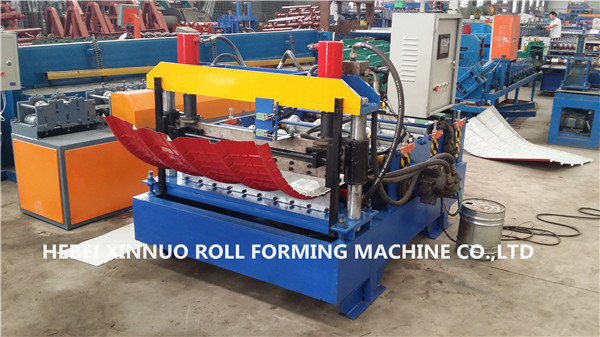

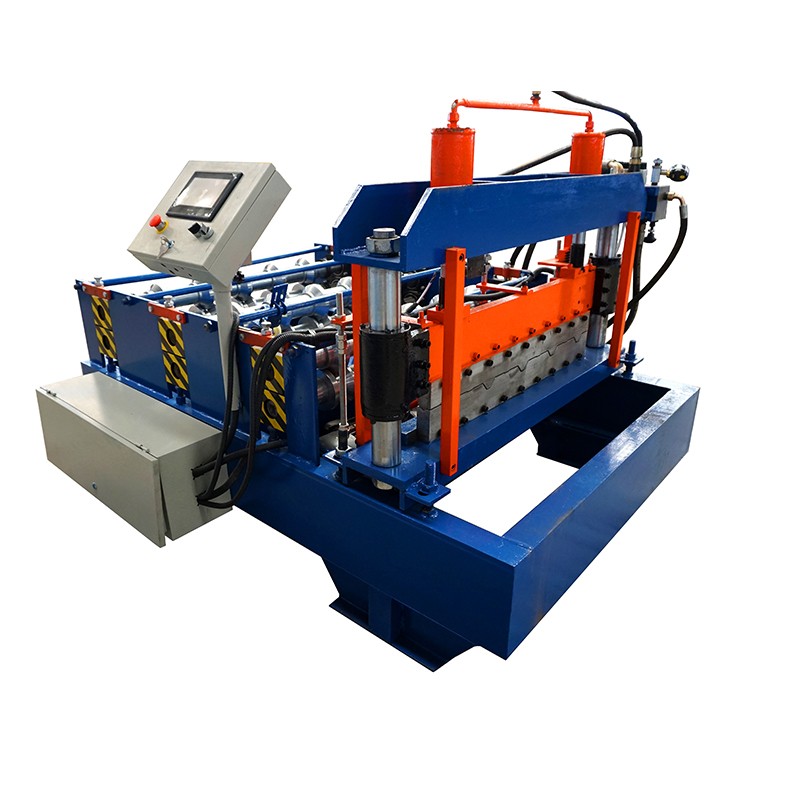

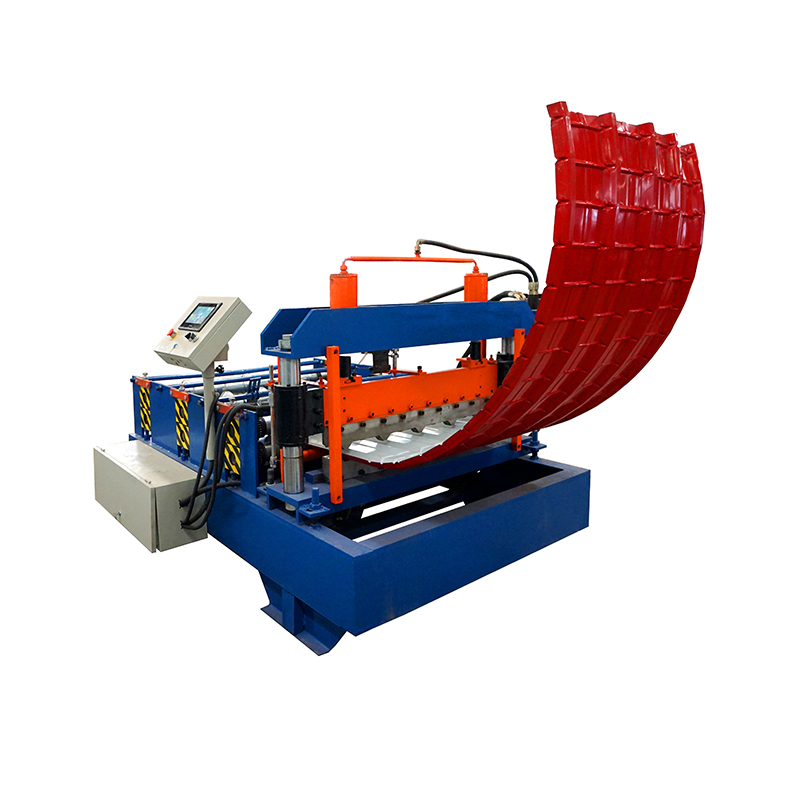

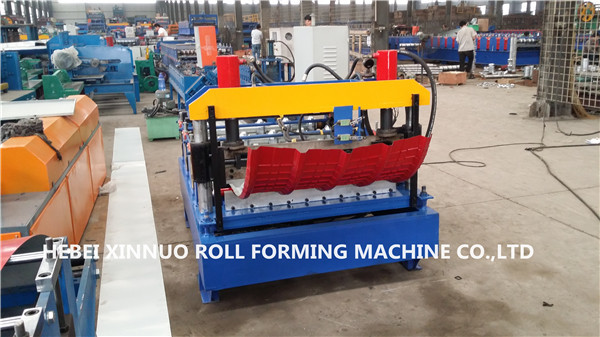

This automated machine curves sheet metal to manufacture tiles. It utilizes rollers and hydraulic systems to form precise tile profiles.
Technical Specifications
Overview
High-Efficiency Sheet Metal Curving Solution
This industrial-grade sheet metal curving machine is engineered for the precise manufacturing of curved tile profiles. It serves as a comprehensive tile-making plant, capable of bending, folding, straightening, and leveling color steel plates with high consistency. Designed for high-volume B2B production environments, it combines robust mechanical construction with an advanced automated control system to ensure reliable long-term performance.
Key Performance Metrics
Performance Highlights
30 m/min
Max Production Speed
3 kW
Main Power
4 kW
Pump Power
5 rows
Roller Stands
Material Specifications
- Suitable Steel Plate
- Color steel plate
- Plate Thickness Range
- 0.8 mm
- Processing Precision
- Within 1.00mm
Technical Components

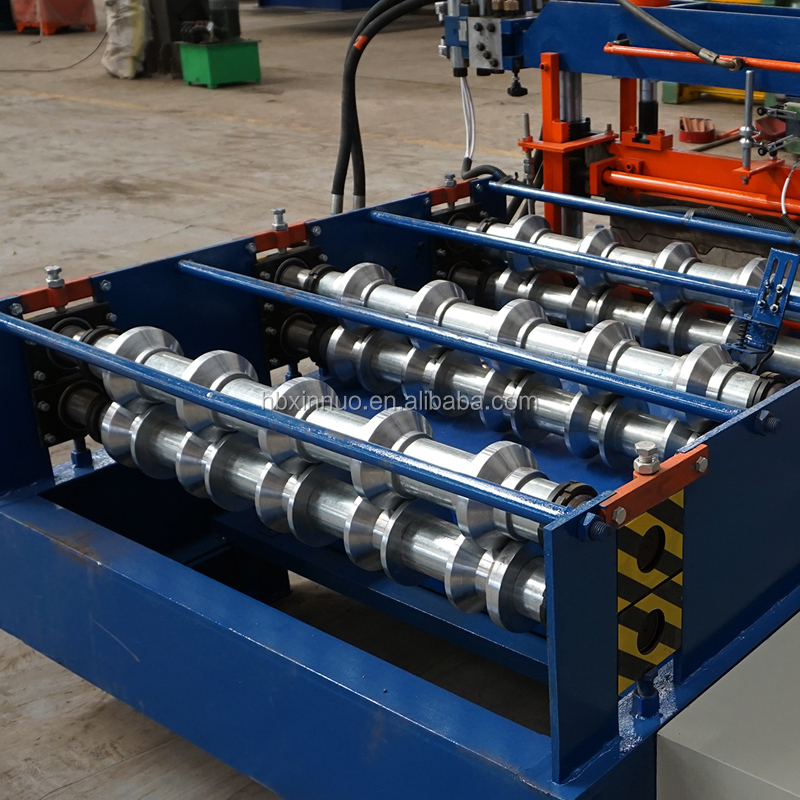

- Roller Material
- Carbon Steel 45#
- Blade Material
- Cr12, quenched
- Roller Diameter
- 70 mm
- Side Panel Thickness
- 14 mm

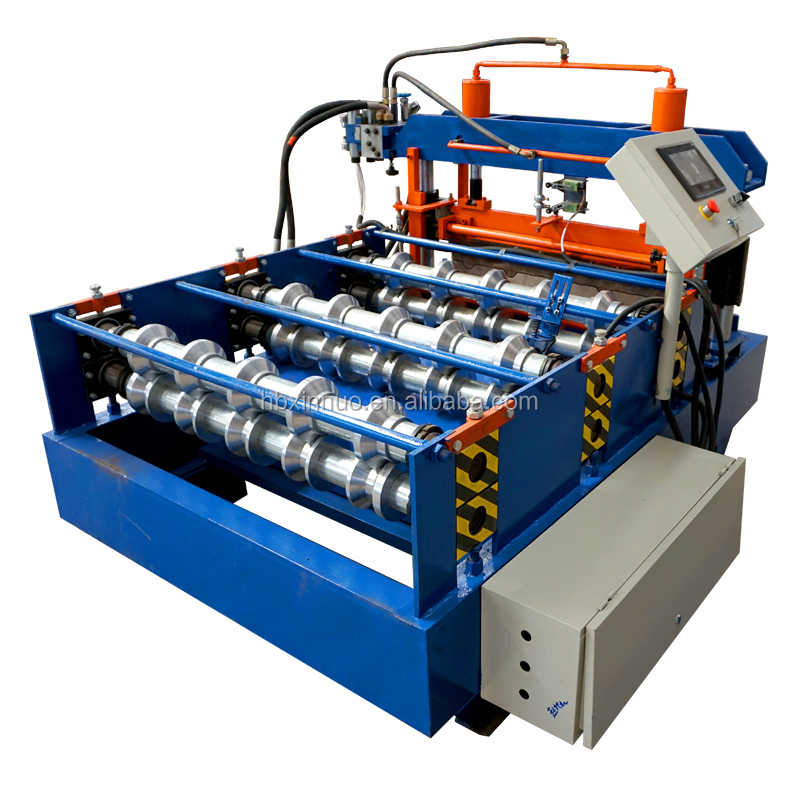

Control & Power
- Control System
- Delta PLC control
- Electrical Requirement
- 380V 50Hz 3-Phase (Customizable)
Compliance & Quality
- Quality Standards
- ISO 9001:2008GB/T19001-2008CE Certified
Capabilities
Core Functions
- Bending
- Folding
- Straightening
- Leveling
- Precision Curving
