Sheet Metal Round Downpipe Forming Machine
This machine forms round downpipes from sheet aluminum and stainless steel. It utilizes rollers to gradually shape the metal and includes a cutting mechanism for precise length control.
Technical Specifications
Product Overview
High-Efficiency Downpipe Forming System

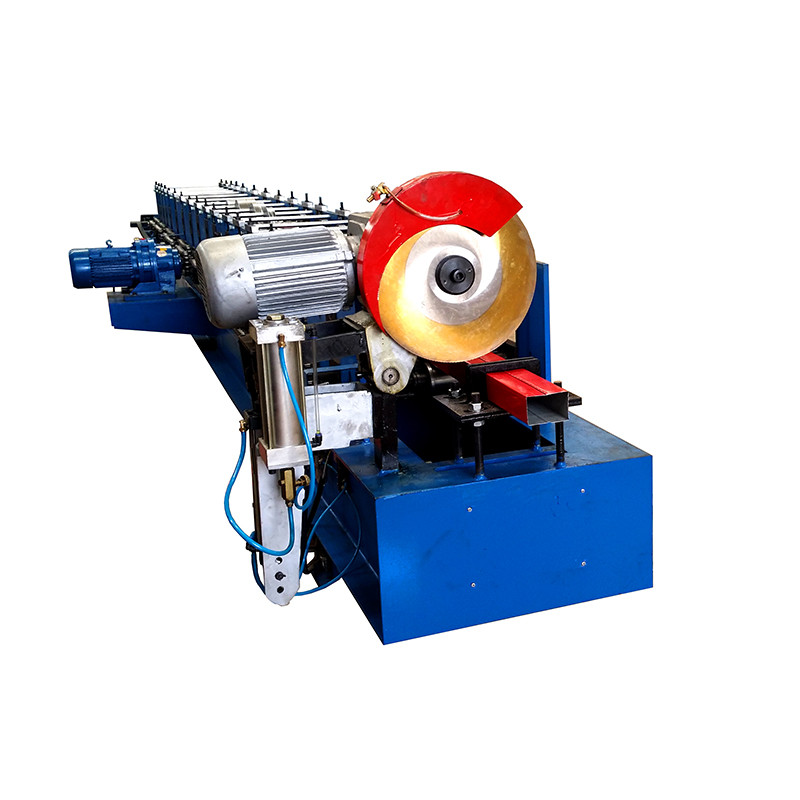

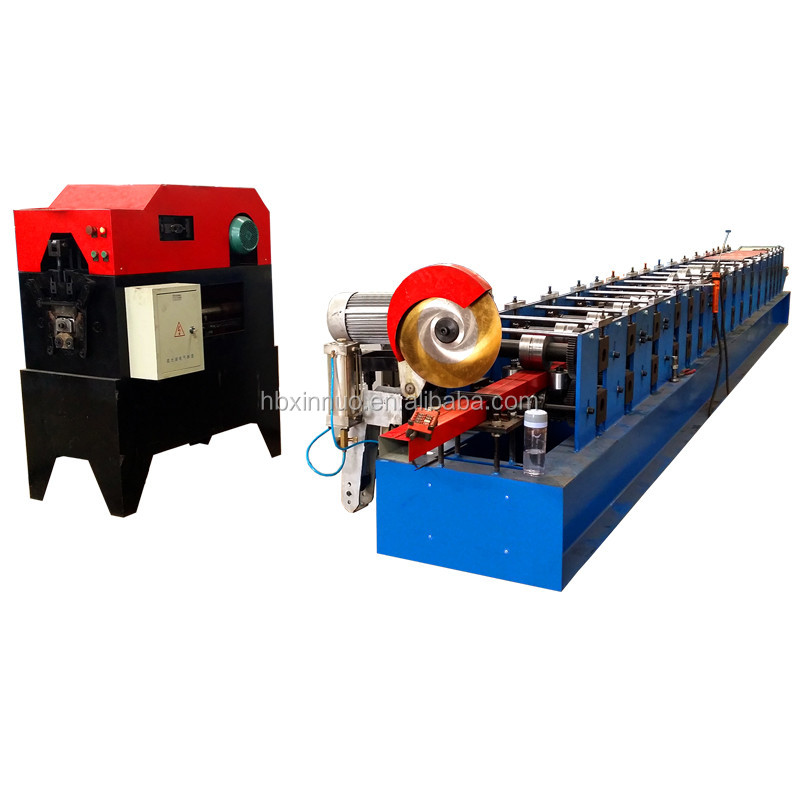

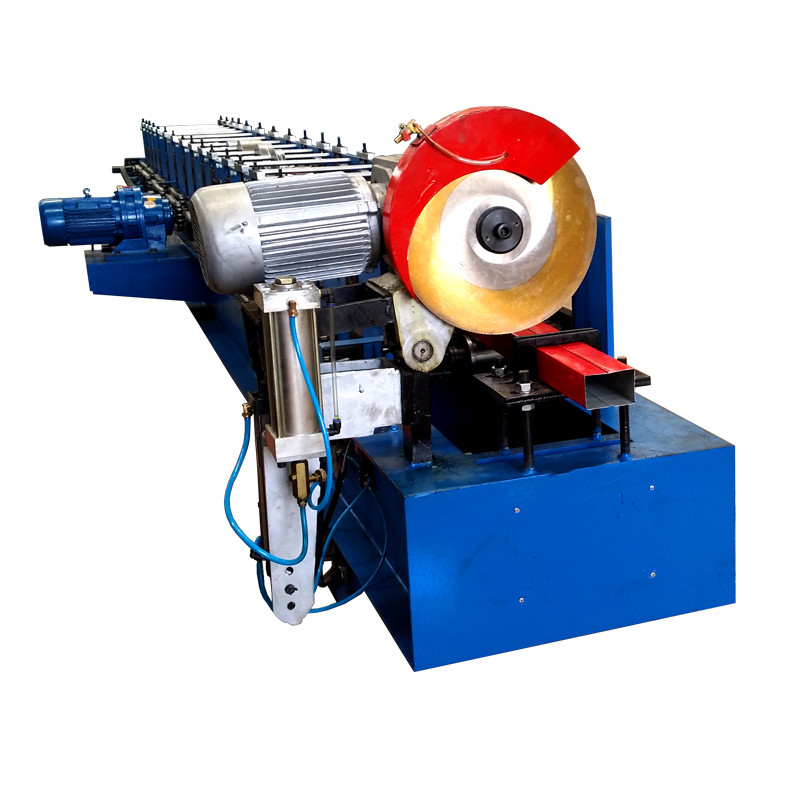

This advanced industrial roll forming machine is engineered for the high-volume production of round downpipes from sheet aluminum and stainless steel. It utilizes a precision 12-row roller system and a high-performance flying saw cutting mechanism to ensure consistent dimensional accuracy and output quality. With a programmable PLC control cabinet and hydraulic drive, the system supports both automatic and manual operation modes, making it highly adaptable for professional construction and industrial manufacturing environments.
Technical Specifications
Processing Range
200 mm
Min Plate Width
600 mm
Max Plate Width
0.3 mm
Min Thickness
0.8 mm
Max Thickness
- Compatible Materials
- Sheet AluminumStainless SteelColor Steel Plate
- Production Speed
- 12 m/min
- Roller Rows
- 14-16 rows
- Total Power
- 4+3 kw
- Physical Dimensions
- 8.6m x 0.8m x 1.2m
Operational Features
Operating Modes
AutomaticManual
- Supported Control Languages
- EnglishChineseSpanishRussian
