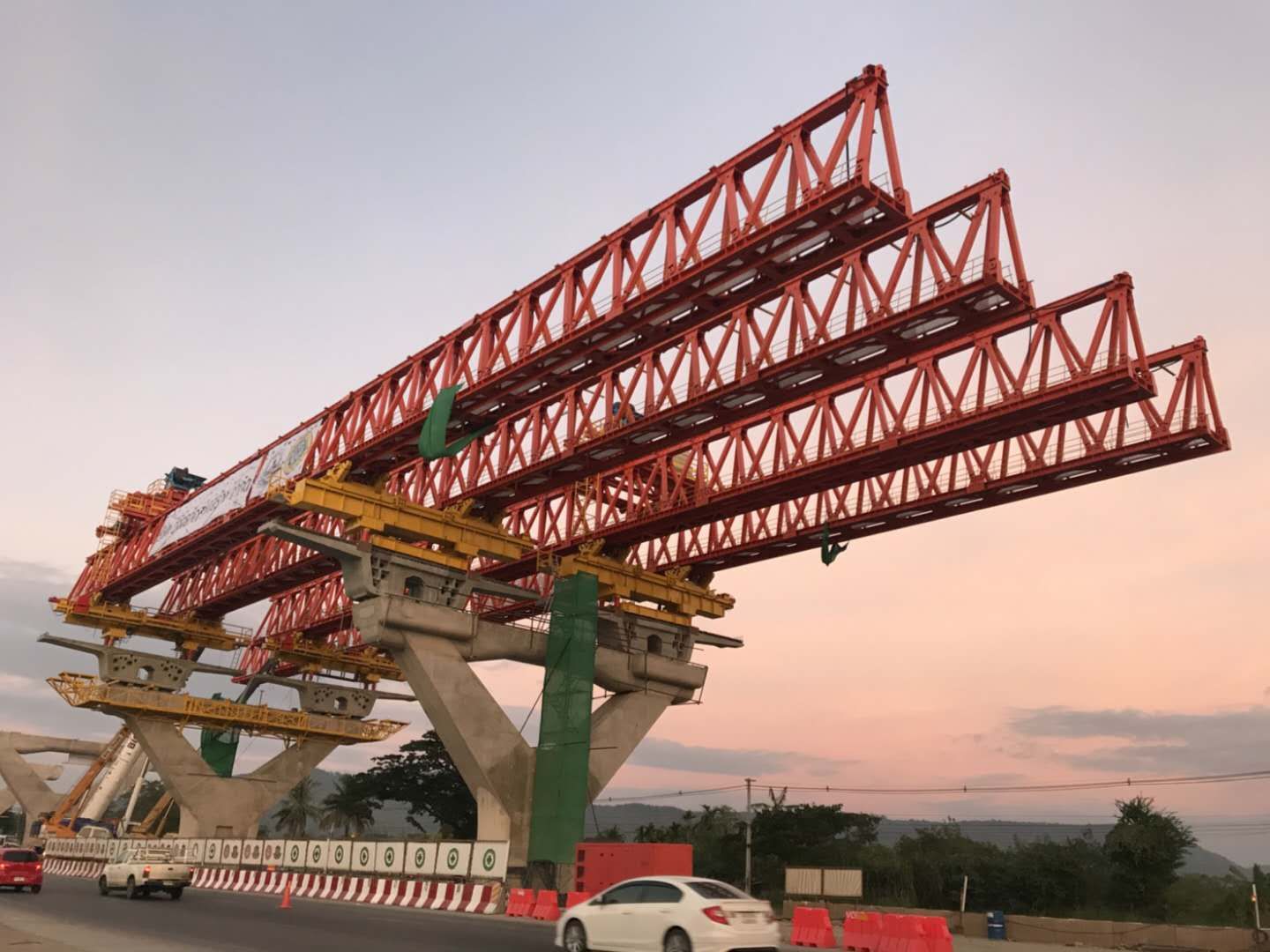

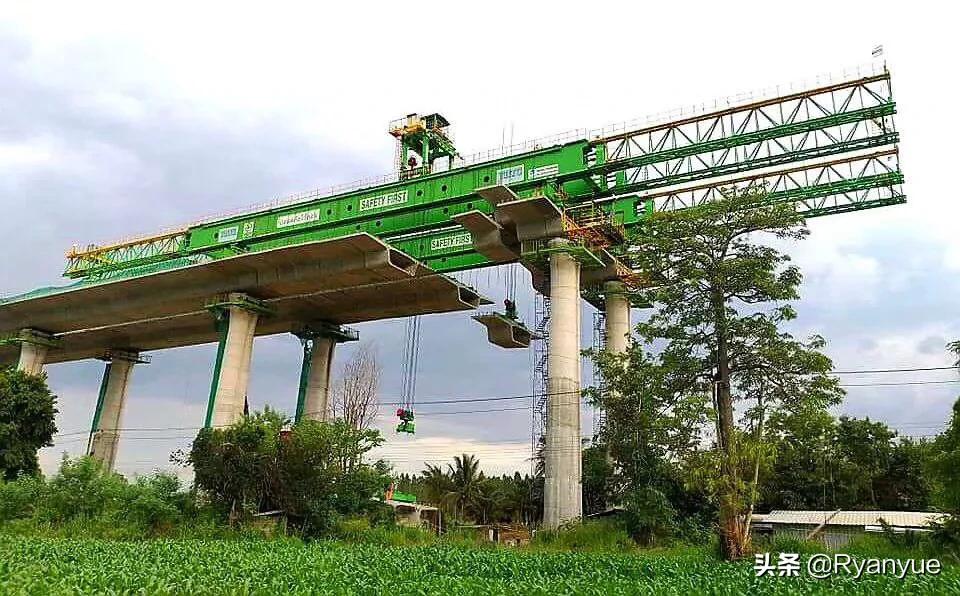

Segmental Bridge Launching Gantry
This specialized construction equipment erects precast concrete bridge segments. The self-launching system moves forward, placing segments into position to form the bridge deck.
Technical Specifications
Overview
Professional Bridge Construction Solution
This segmental launching gantry is a specialized heavy-duty crane engineered for the efficient erection of precast concrete bridge segments. Utilizing advanced self-launching systems, the equipment allows for precise placement of segments in challenging environments using both balanced cantilever and span-by-span methods. Designed for high-capacity performance, this solution minimizes traffic disruption while ensuring safety and structural accuracy during bridge assembly.
Technical Capabilities
Maximum Lifting Capacity
1,700 t
Max Capacity
- Supported Methods
- Balanced CantileverSpan-by-Span
Comprehensive Solutions
Included Construction Equipment
- Launching gantry
- Girder transporter
- Gantry crane
- Formwork
- Straddle carrier
- Segment lifter
- MSS (Moveable Scaffolding System)
- Form traveller
Operational Safety
Safety Compliance
SAFETY FIRSTHigh Precision Positioning
