Technical Specifications
Overview

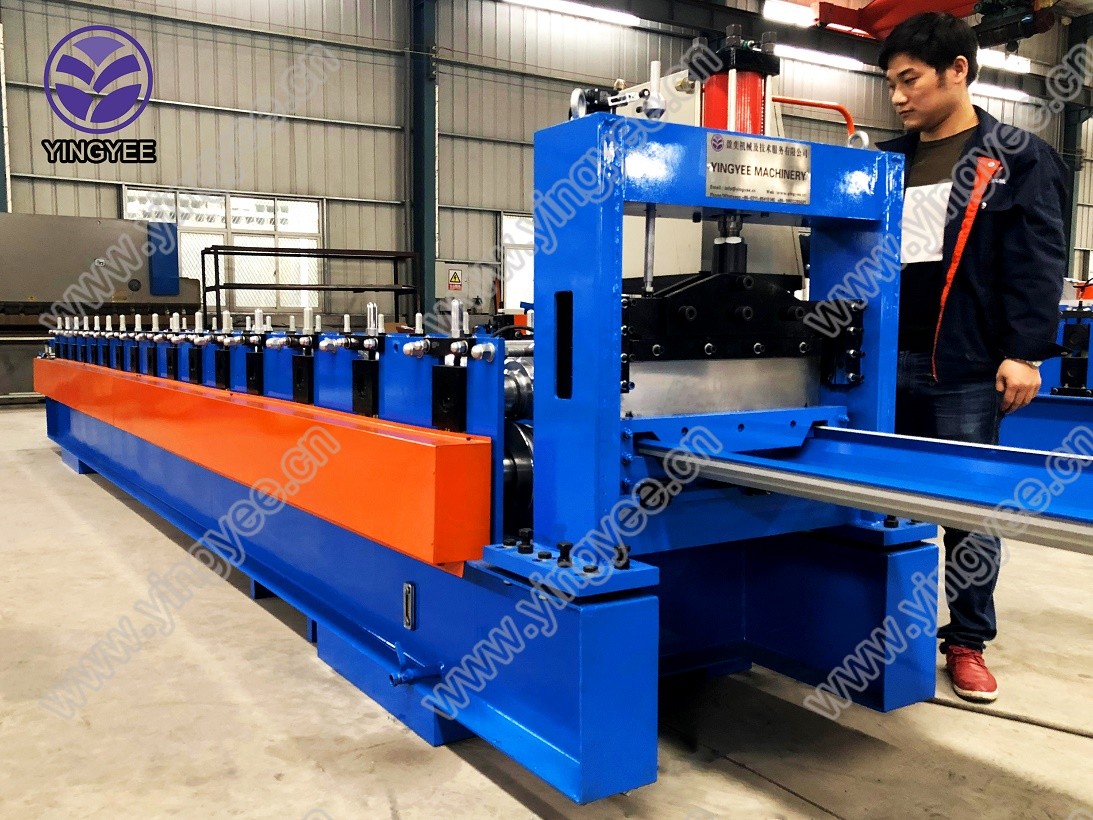

High-Efficiency Seam Lock Roll Forming System
This professional-grade seam lock roll forming machine is engineered for the high-precision manufacturing of architectural metal roofing and wall panels. The system features a fully automated process including a manual decoiler, advanced roll forming stations, a hydraulic cutting system, and an integrated PLC control unit to ensure consistent dimensional accuracy. Designed for robust operation with high-quality components, it provides a reliable, automated solution for industrial metal profile production.
Key Components
Equipment Included
- 3-ton manual de-coiler
- Main roll forming machine
- Seam lock machine (x2)
- Hydraulic cutting system
- Hydraulic station
- PLC control system
- Collection table
- Manual seamer (x2)
Performance Metrics
Performance Highlights
16 m/min
Forming Speed
7.5 kW
Motor Power
9 tons
Machine Weight
Technical Specifications
Production Parameters
| Feature | Specification |
|---|---|
| Material Thickness | 0.5-1.0 mm (PPGI) |
| Output Width | 200-600 mm |
| Forming Rollers | 16 |
| Shaft Diameter | 75 mm |
| Cutting Tolerance | ±1.5 mm |
- Control System Components
- Delta PLCWinview Touch ScreenSchneider InverterOmron Encoder
- Electrical Specs
- 380V / 3-Phase / 50Hz
