Scaffolding Plank Roll Forming Machine

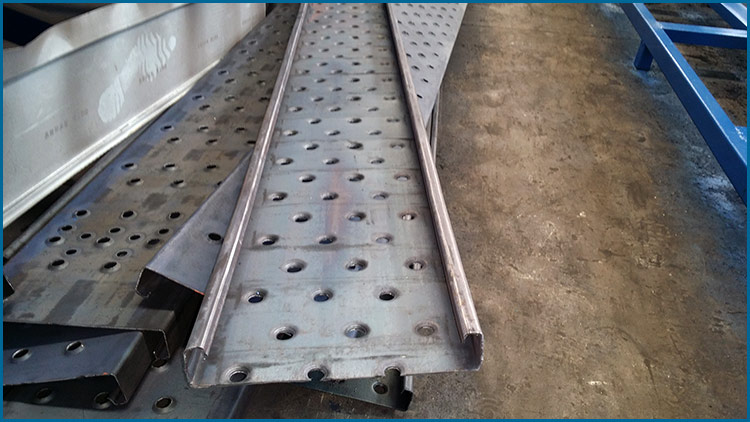

This roll forming machine automatically produces scaffolding planks and decks from sheet steel. It is designed for high-volume production with consistent quality and precise dimensions.
Technical Specifications
Product Overview
Industrial Scaffolding Plank Production
This automated roll forming machine is engineered for the high-volume production of sheet steel scaffolding planks, deck boards, and structural walkways. It features a high level of automation with integrated measuring, cutting, and punching systems, ensuring exceptional flatness and compressive strength in the finished components. Designed for versatility, it supports various materials including color steel plates, galvanized sheets, and aluminum coils, making it an ideal solution for large-scale construction, warehouse, and industrial infrastructure projects.
Technical Specifications
- Suitable Materials
- Color Steel PlateGalvanized SheetAluminum Coil
- Max Feeding Width
- 1250 mm

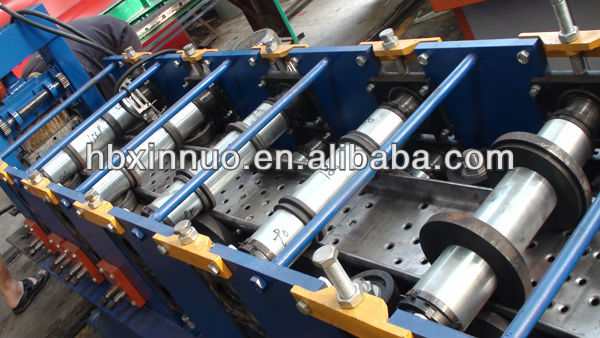

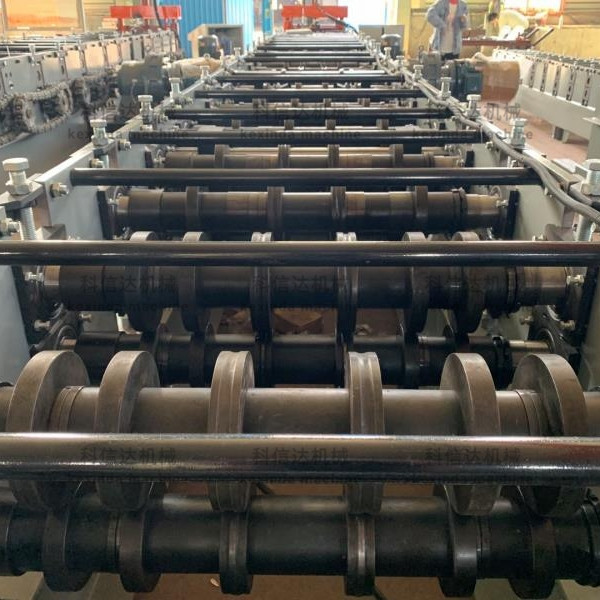

- Forming Stations
- 14 rows

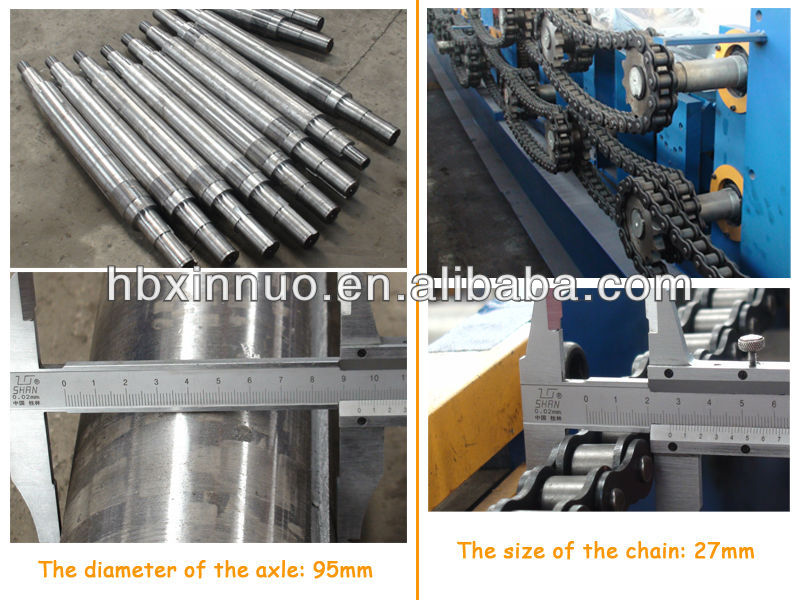

- Axle Diameter
- 95 mm
- Chain Size
- 27 mm
Features & Capabilities
Automation Capabilities
- Automatic measurement

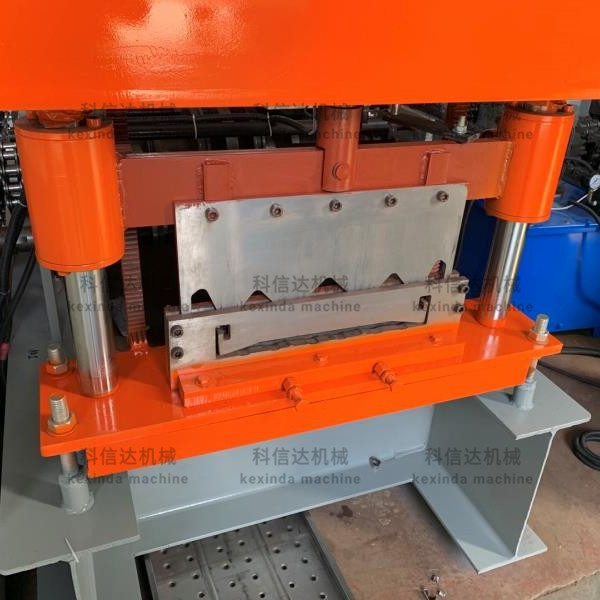

- Automatic cutting
- Automatic punching
- Programmable Logic Control
- Hydraulic forming and cutting system
