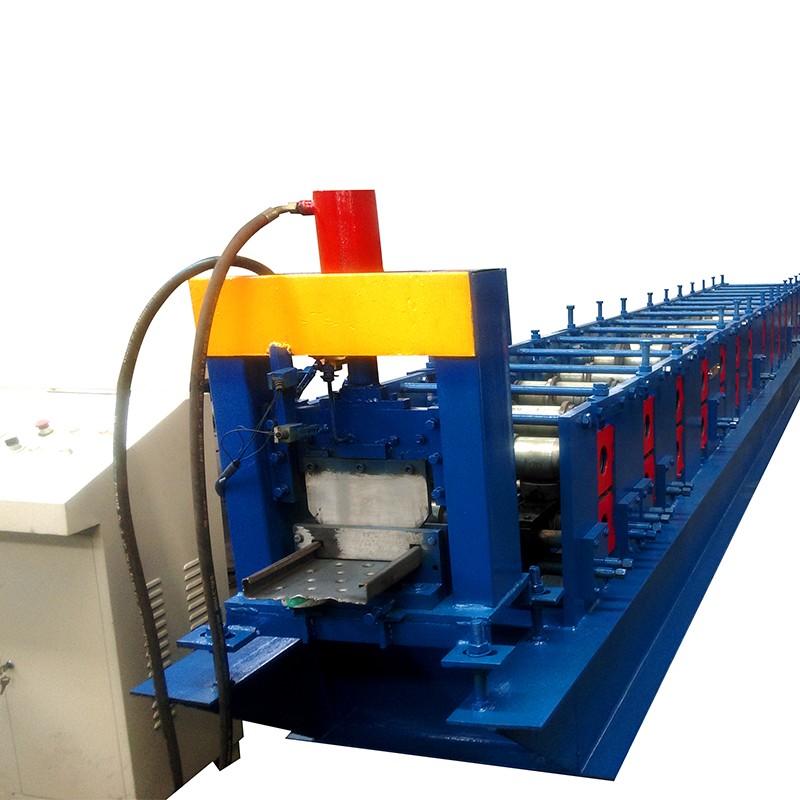

Scaffolding Foot Plate Roll Forming Machine

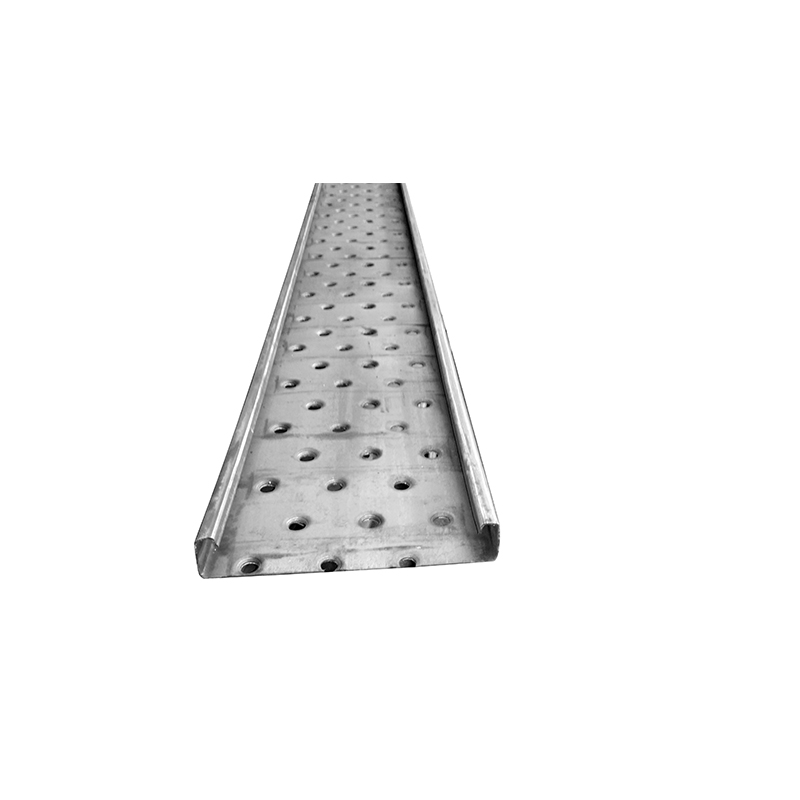

This roll forming machine produces foot plates for scaffolding systems. It shapes metal sheets into the required profile using a series of rollers.
Technical Specifications
Product Overview
High-Efficiency Production

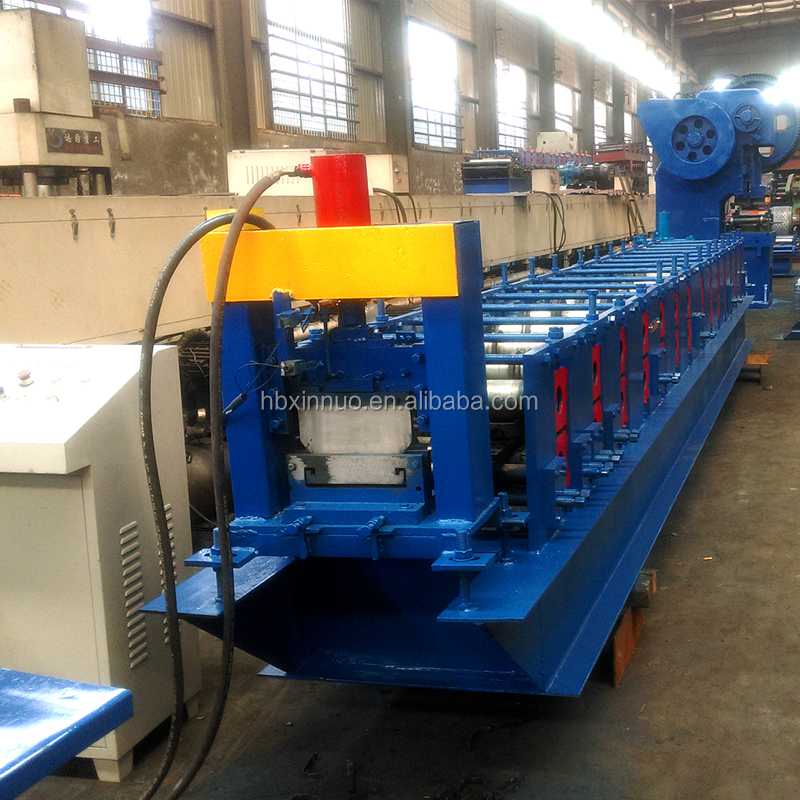

This industrial-grade roll forming machine is engineered for the high-volume production of scaffolding foot plates. Featuring robust construction with high-strength steel components and a precision PLC control system, it ensures consistent dimensional accuracy and structural integrity. Designed for durability, the machine utilizes premium materials for rollers and shafts to maintain long-term performance in demanding manufacturing environments.
Technical Specifications
Shaft Diameter
- 75
- 80
- Main Machine Body Material
- High strength H300 or H350 steel
- Roller Material
- GCr15
- Cutting Material
- Cr12 steel with quenched treatment
- Active Shaft Material
- High grade No.45 forged steel
- Control System
- PLC ControlImported Components
Packaging & Delivery
Packaging Method
| Component | Packaging Type |
|---|---|
| Main Machine | Nude |
| Control Box | Wooden Frame |
