Product Overview

Industrial Sandwich Panel Production Line

This automated roll forming machine is engineered for the high-volume production of insulated sandwich panels and sheet metal profiles. Featuring a robust construction and advanced PLC control system, it provides high-precision forming with consistent output for roofing and walling applications. The system supports various core materials and offers reliable, efficient performance suitable for large-scale industrial construction needs.

Overview of industrial sandwich panel roll forming machine — Fully automated production line for roof and wall panels.

Technical Specifications

Sheet Plate Thickness: 0.8 mm
Core Material Thickness: 20-300mm
Production Capacity: 2-4.5m/min
Total Power Output: 30 KW
Machine Weight: 25 ton
Overall Dimensions (L x W x H): 35000 x 2500 x 2600 mm

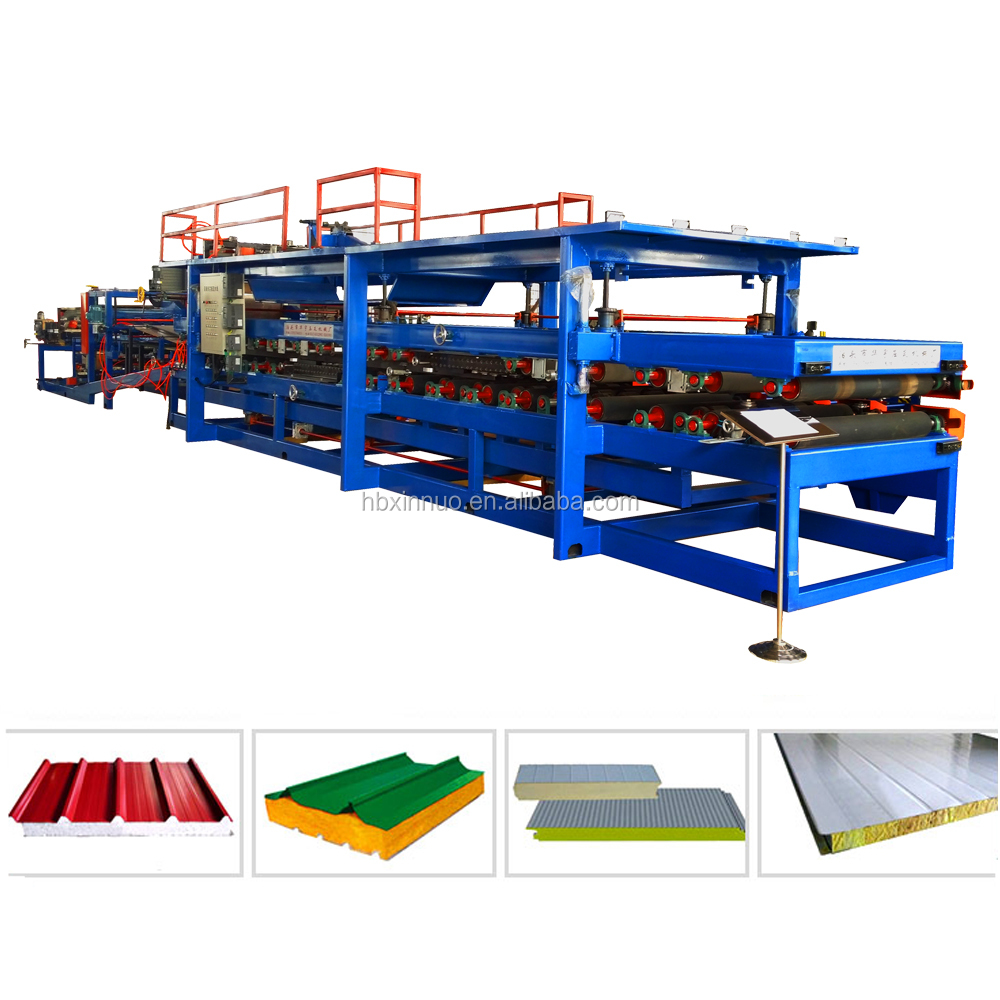

Multi-stage roll forming process detail — Multi-stage forming process for high-precision panel production.

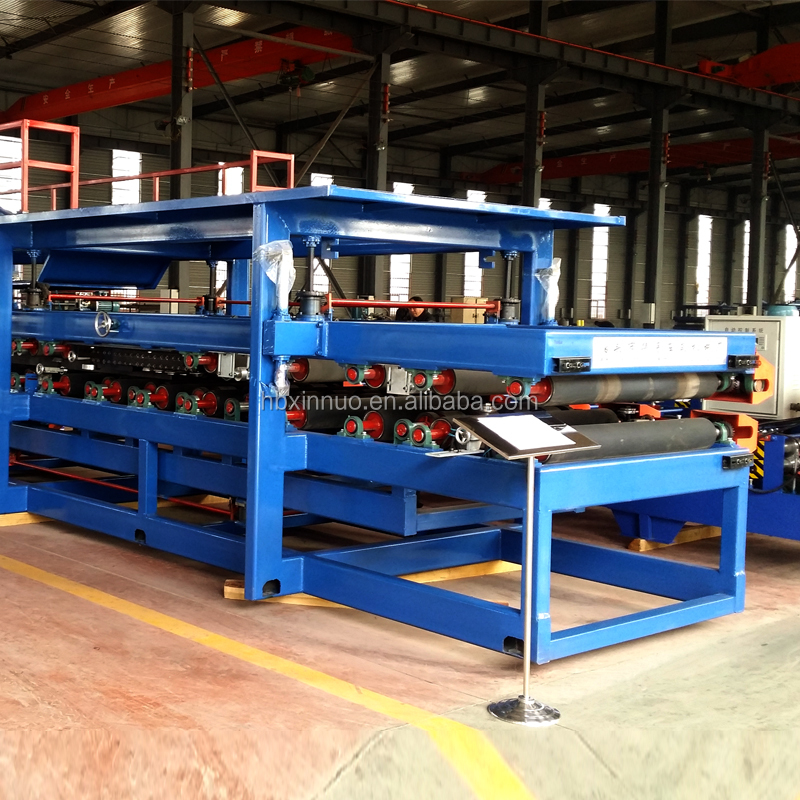

Roll forming machine control panel view — Control station for monitoring and adjusting the roll forming process.

Material & Process

Production Stages

Composite Decoiler
Roll Forming
Laminating System (Ribbon, Gelatinizing, Heating, Compounding)
Crimping & Notching
Edge Trimming
Cutting System
Runout Table

Compatible Core Materials: EPSRock WoolGlass Silk Floss

Commercial Terms

Terms of Payment: 30% down payment by T/T; 70% balance by T/T after inspection before delivery
Delivery Time: 60 days after receipt of advance payment
