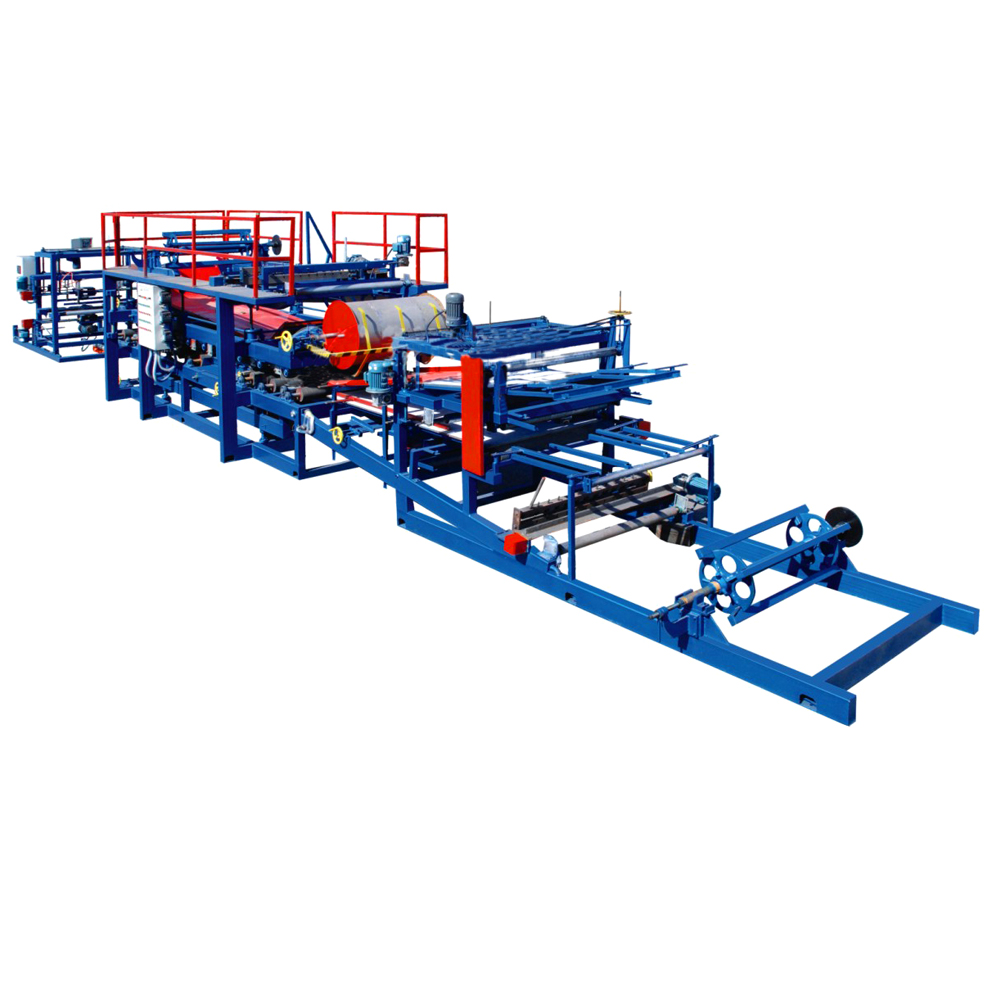

Sandwich Panel Roll Forming Machine
This roll forming machine is designed for manufacturing sandwich panels with sheet metal profiles. It progressively shapes metal sheets using multiple rollers and forming stations.
Technical Specifications
Overview
Automated Sandwich Panel Production Line
This industrial-grade roll forming machine is engineered for the high-efficiency production of sandwich panels and diverse sheet metal profiles. Utilizing an advanced PLC control system, it delivers high precision and stable output for construction materials. The comprehensive line integrates decoiling, forming, gluing, heating, and cutting stages to ensure consistent quality for varied architectural applications.
Technical Specifications
Production Capacity
4.5 m/min
Fastest Speed
2 m/min
Slowest Speed
Material Specifications
| Parameter | Range |
|---|---|
| Plate Thickness | 0.3 - 0.8 mm |

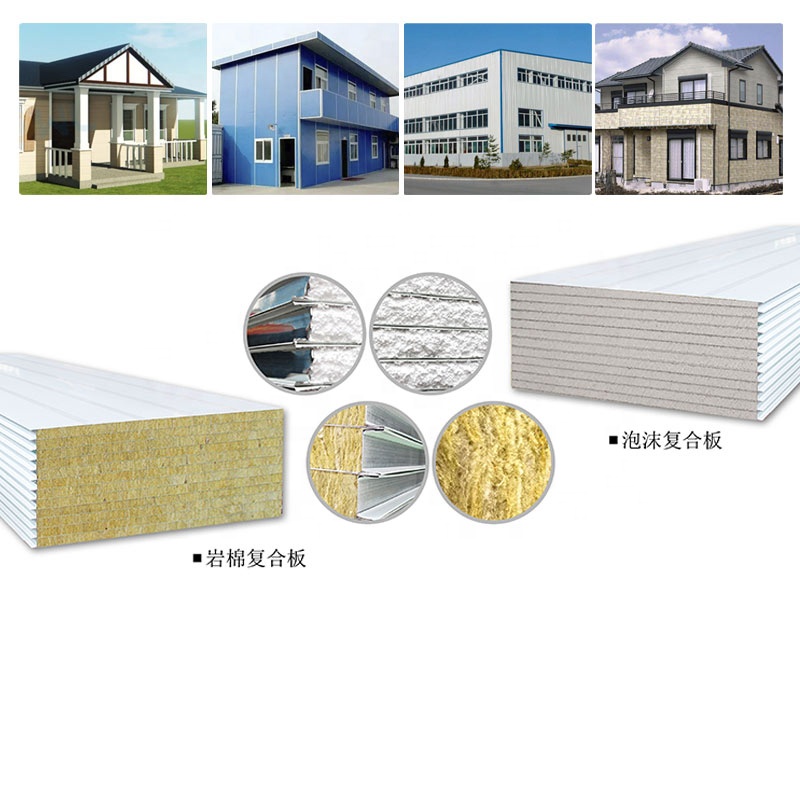

| Core Thickness | 20 - 300 mm |
- Compatible Core Materials
- EPSRock WoolGlass Silk Floss
System Requirements
- Total Power Consumption
- 30 KW
- Total System Weight
- 25 ton
- Overall Dimensions (L x W x H)
- 35000mm x 2500mm x 2600mm
Terms
Warranty Period
1 Year
- Delivery Lead Time
- 60 days after receipt of advance payment
