Technical Specifications
Product Overview

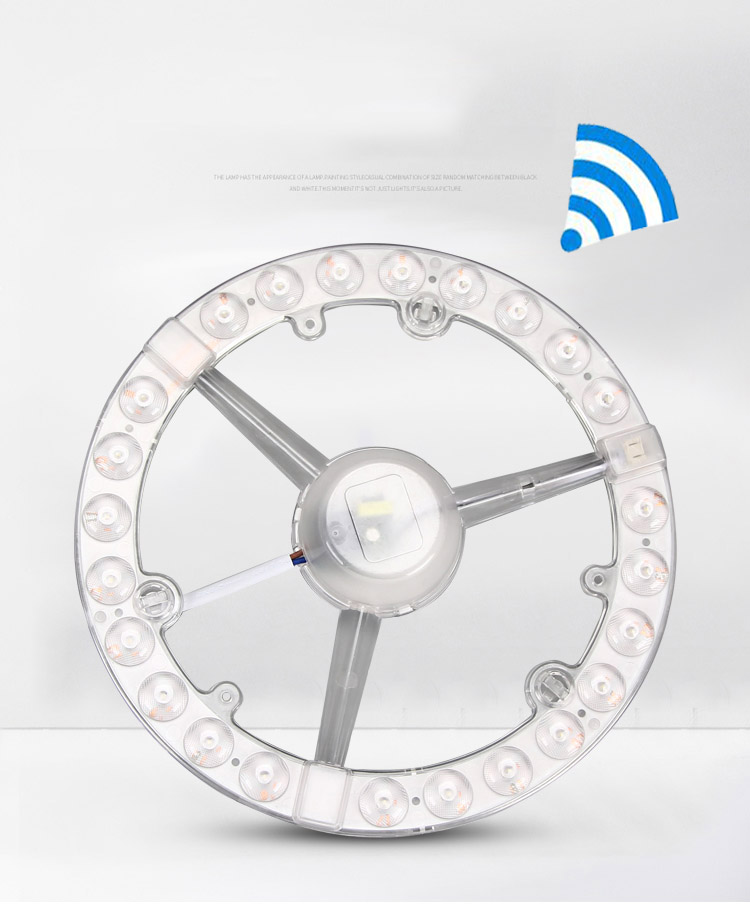

Smart Retrofit LED Module
This round LED retrofit module is designed for seamless integration into existing ceiling lamps, featuring a built-in microwave motion sensor for automated lighting control. The magnetic mounting system ensures quick, tool-free installation, making it an ideal upgrade for both residential and commercial ceilings. With customizable sensor modes and an optional daylight detection feature, it provides an energy-efficient solution for areas requiring automatic illumination.
Sensor Technology
Operating Modes
| Mode | Behavior |
|---|---|
| ON/OFF Mode | 100% brightness on motion, 0% (off) when idle |
| Full/Dim Mode | 100% brightness on motion, 20% standby when idle |
Sensor Specifications
20 seconds
Delay Time
10 lux
Daylight Threshold
- Daylight Sensor Enabled
- Yes
Installation & Design
- Mounting Method
- Magnetic
- Shape
- Round
Application & Usage
Business Uses
- Shops
- Offices
- Warehouses
- Storerooms
- Workshops
- Cable ways
- Substations
- Archives
- Domestic Uses
- CorridorCabinetsHallwayStairwaysAtticsBasementWarehouseClosetBathroomToiletChildren Room
Quality & Warranty
Warranty
2 Years Warranty
- Quality Control
- Strict sensor function testing and aging test performed on all units
