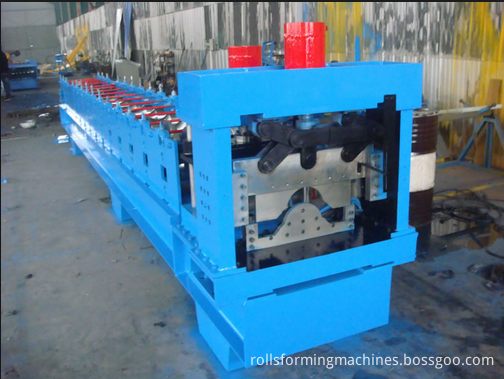

Roofing Ridge Cap Roll Forming Machine

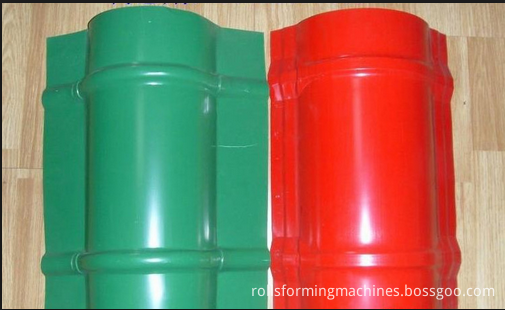

This roofing ridge cap roll forming machine has a coil width that typically ranges from 300-550mm. It continuously forms steel sheets to customer specifications and automatically cuts them to length.
Technical Specifications
Product Overview
Professional Ridge Cap Solution

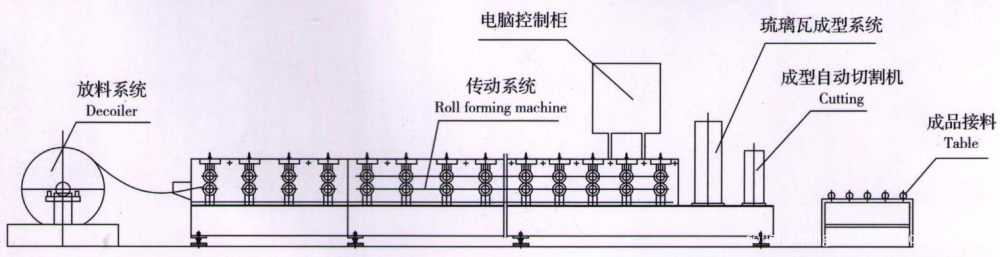

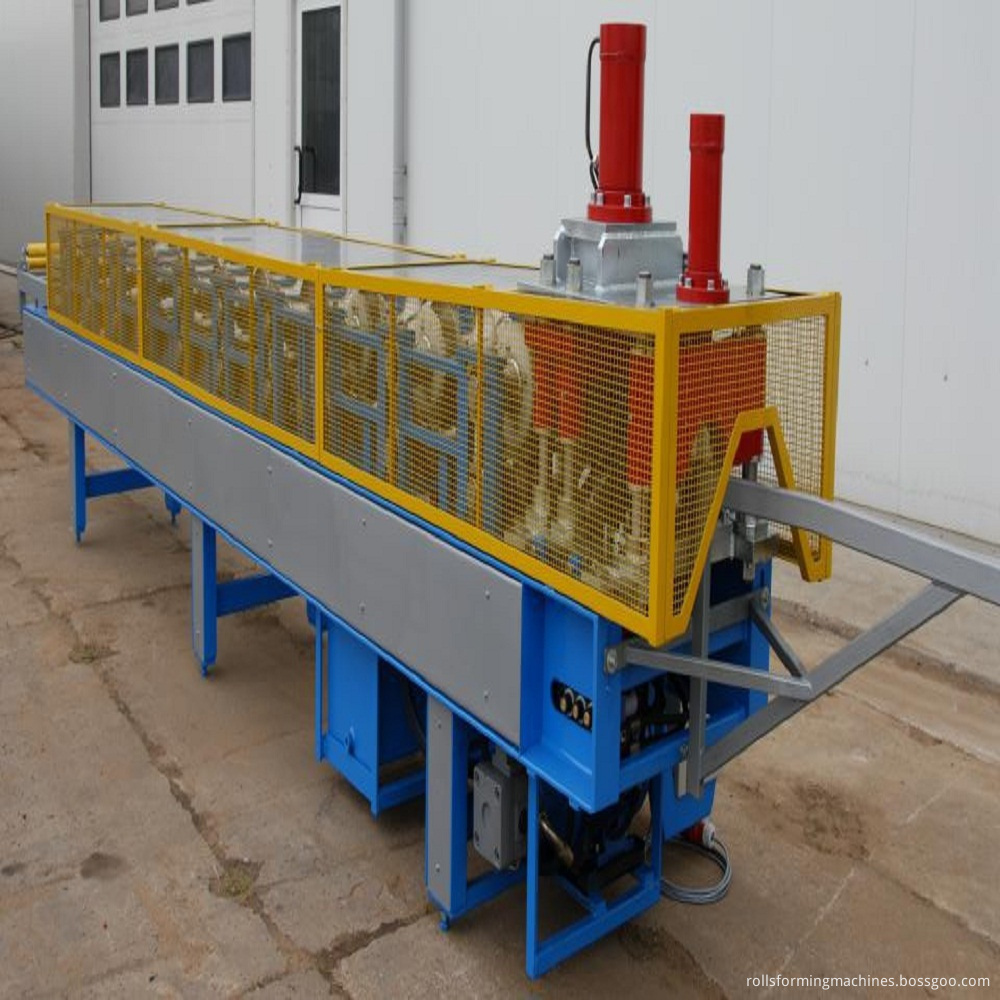

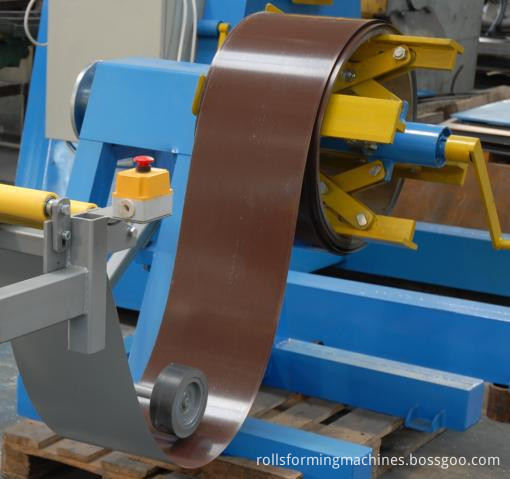

This automated roll forming machine is engineered for the high-precision production of roofing ridge caps. Designed for industrial-scale manufacturing, it features a robust 350 H-steel welded frame and reliable chain drive transmission for consistent operation. The system includes an automated uncoiler, a multi-station forming assembly, and a hydraulic cutting mechanism, ensuring uniform results with minimal noise and stable performance.
Technical Specifications
Raw Material Capacity
5 T
Loading Capacity
1,000 mm
Max Coil Width
0.8 mm
Max Thickness
Construction Details
| Component | Specification |
|---|---|
| Main Power | 3.2 kW |
| Roller Count | 11 |
| Shaft Diameter | 60mm |
| Frame Material | 350 H Steel |
| Roller Material | 45# steel with hard chrome |
Operating Features
- Equipment Highlights
- Automated Length ControlPLC SystemHydraulic CuttingLow Noise TransmissionStep-Forming Enabled
- Power Input
- 380V/50HZ 3Phase
