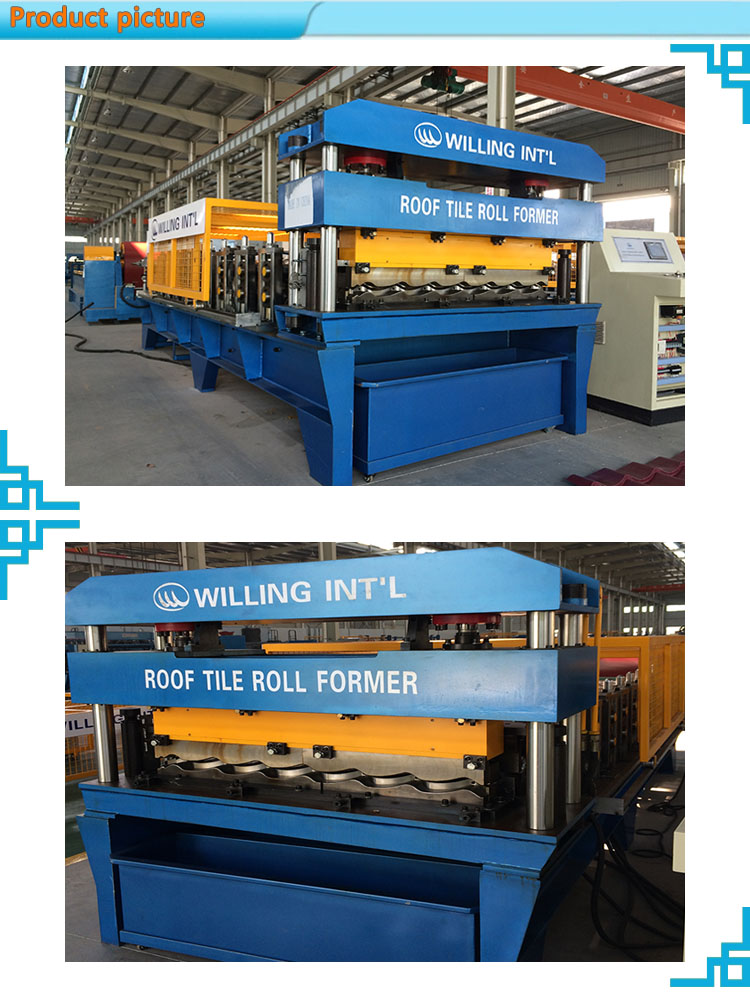

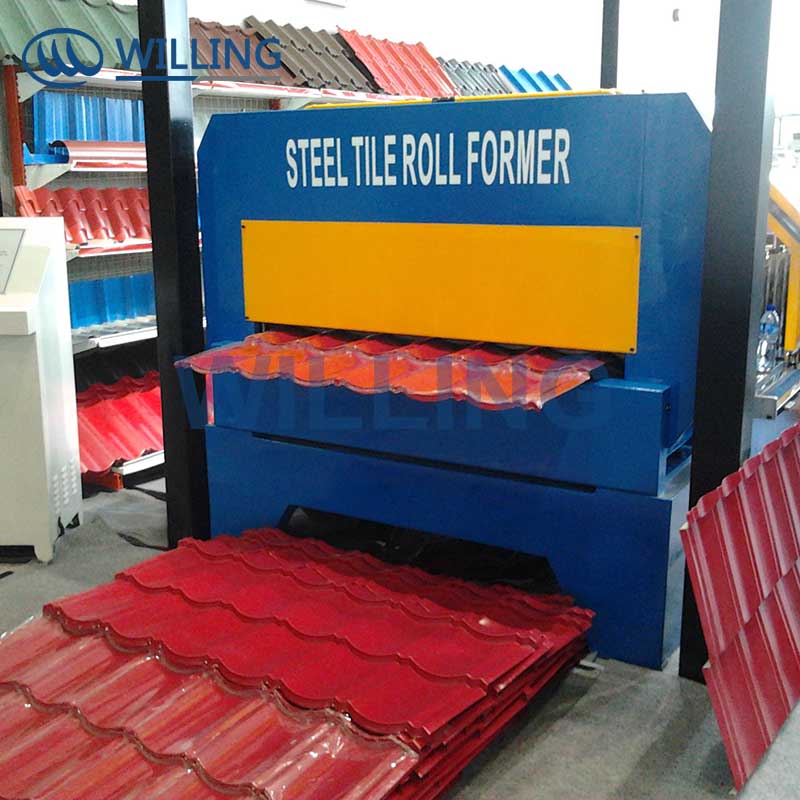

Roof Tile Roll Forming Machine
This machine is designed for shaping metal sheets into roof tiles. It ensures consistent dimensions and profiles for efficient, high-volume production.
Technical Specifications
Product Overview
High-Efficiency Roll Forming Solution
This professional-grade roof tile roll forming machine is engineered for the high-volume, precise production of metal roofing components. It features a robust, industrial construction designed for consistent performance and minimal material waste. The system integrates advanced PLC controls and hydraulic power to ensure high-speed, reliable manufacturing of varied roof tile profiles.
Technical Specifications
Performance Metrics
15 m/min
Max Forming Speed
5.5 kW
Main Motor Power
12 MPa
Hydraulic Pressure
5,000 kg
Total Weight
Material Specifications
| Parameter | Value |
|---|---|
| Thickness Range | 0.3 - 0.7 mm |
| Yield Stress | 230 - 550 MPa |
Construction Details

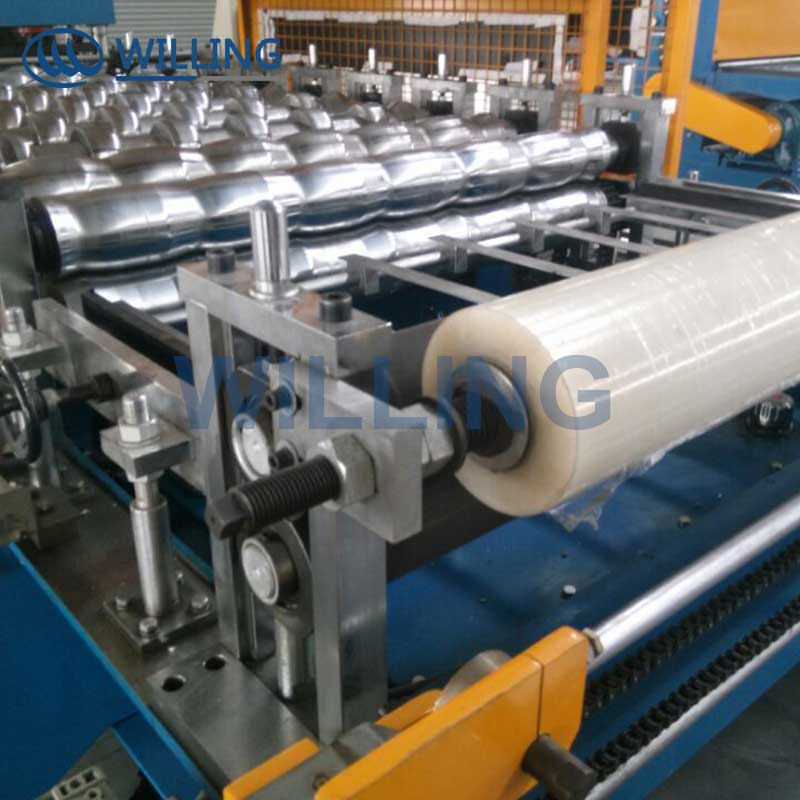

- Roller Material: 45# steel with chrome treatment
- Drive System: Chain transmission
- Control Interface: PLC with touch screen and physical buttons

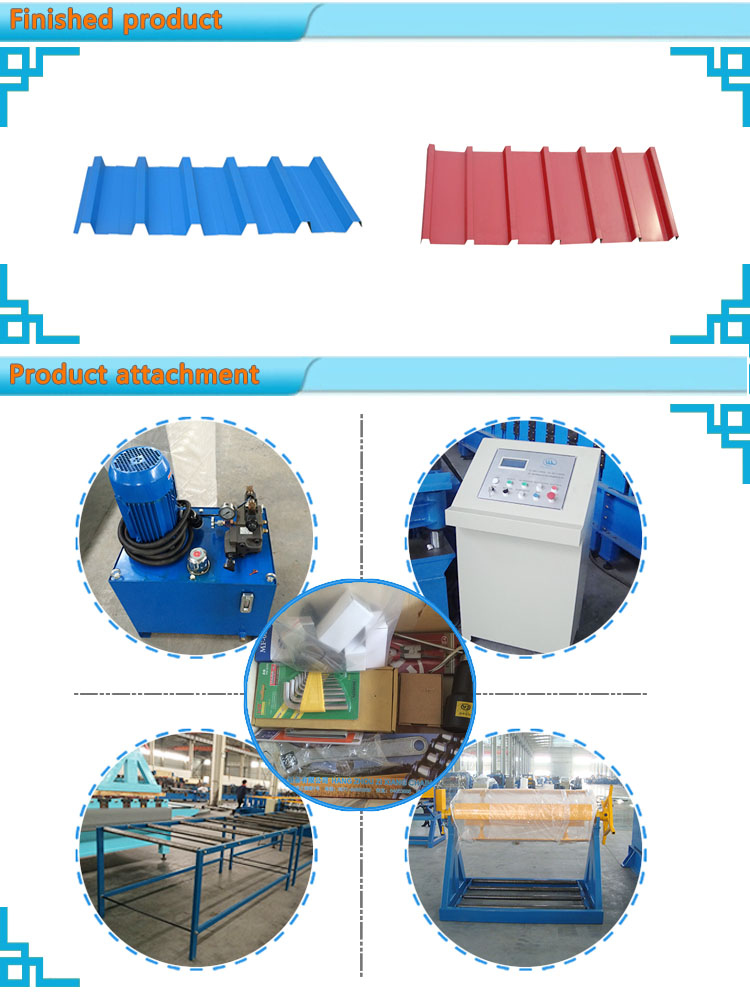

- Includes decoiler, forming system, cutting equipment, and panel supporter
Service & Support
- Warranty & Service
- 1-year guarantee24/7 remote technical supportOn-site installation support availableInstruction manuals and videos provided
