Technical Specifications
Product Overview
Professional Roll Forming Solution

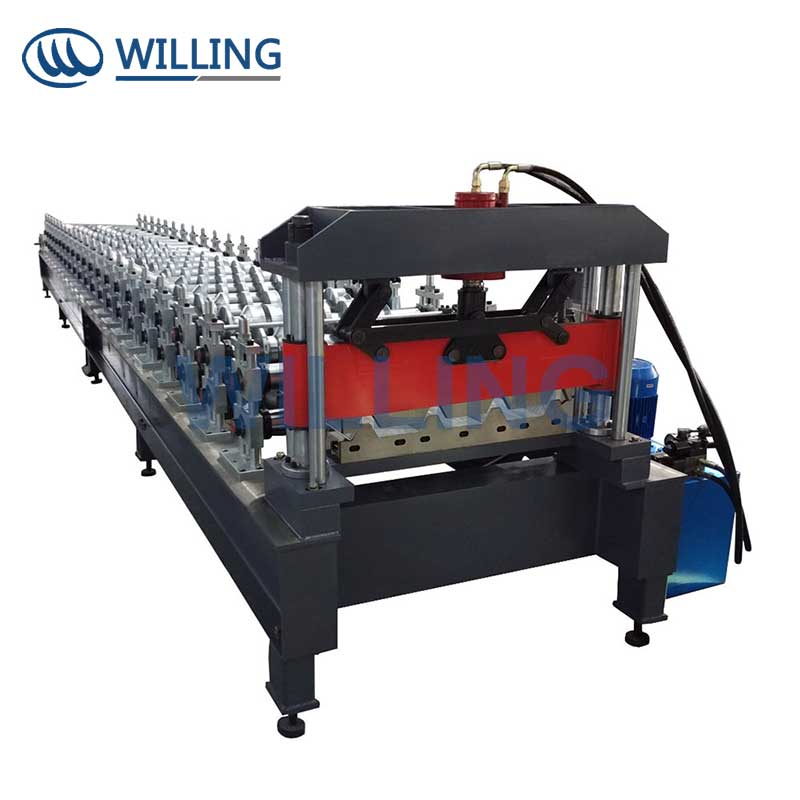

The WLFM series roll forming machine is engineered for the high-volume production of roof and wall panels. It incorporates a comprehensive setup including an uncoiler, infeed guides, and precision-driven forming stations to ensure consistent profile quality. With flexible PLC controls and a robust hydraulic cutting system, it offers precise length control and adaptable design capabilities for various building profiles.
Available Profile Models
WLFM25-205-820WLFM25-250-1000WLFM18-76-836
Technical Specifications
Material Specifications
| Parameter | Value |
|---|---|
| Material Type | Color steel sheet |
| Thickness | 0.3-0.7 mm |
| Yield Stress | 230-550 Mpa |
Power & Drive System
- Main motor power: 3 KW
- Hydraulic station motor power: 4 KW
- Total power: 7 KW
- Chain transmission type
- 45# steel rollers with chrome finish
Performance
Operational Metrics
15 m/min
Max. Forming Speed
6,000 kg
Total Machine Weight
- Control System
- PLC ControllerTouch screen interfaceButton operation12 Mpa hydraulic pressure
