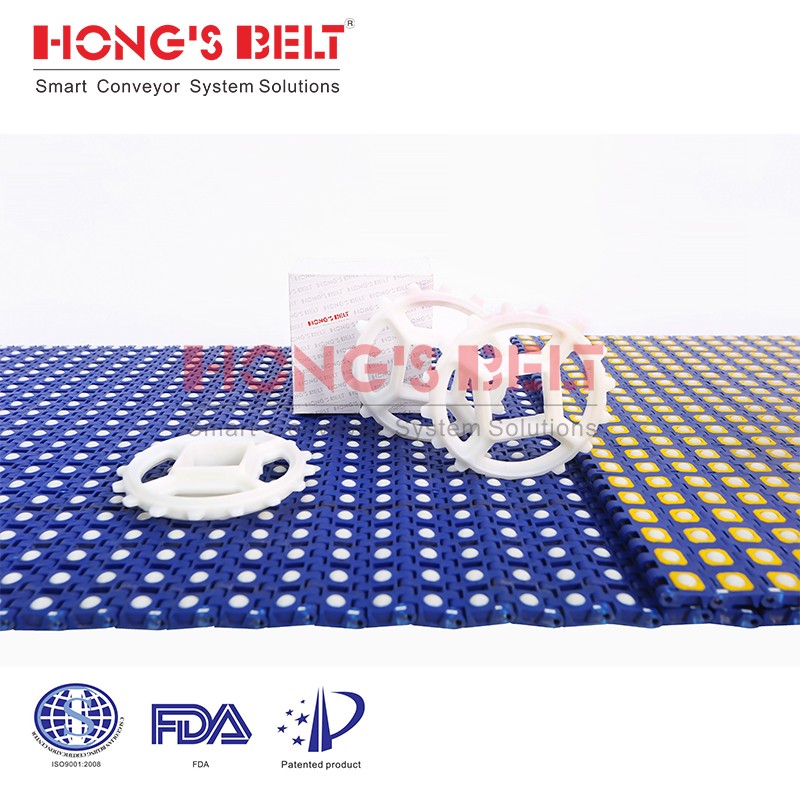

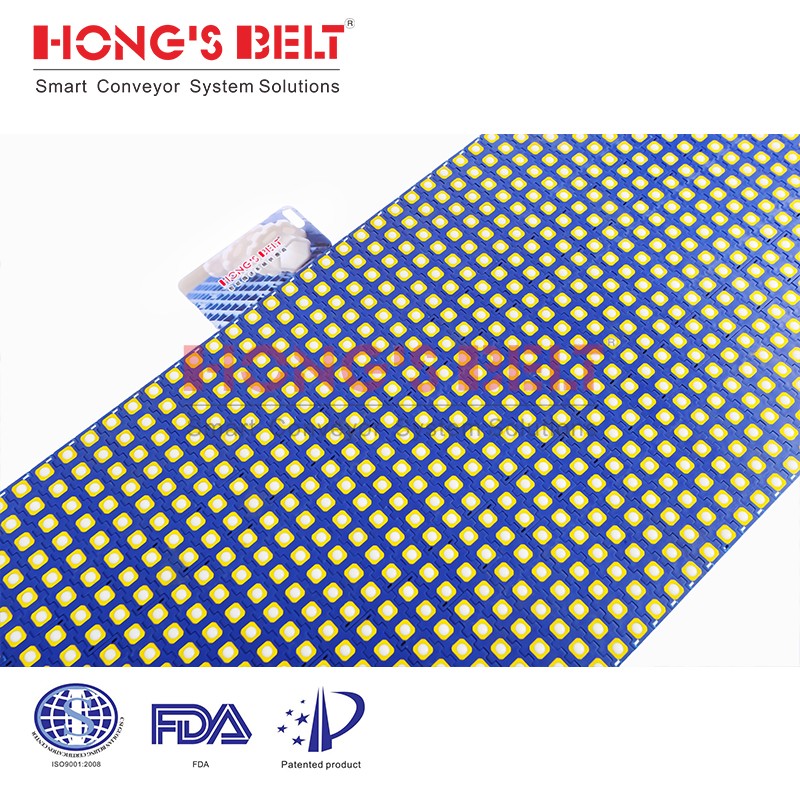

Roller Top Modular Plastic Conveyor Belt
This roller top modular plastic conveyor belt is designed for light duty sorting applications. The modular design allows for easy assembly and maintenance.
Technical Specifications
Overview
High-Efficiency Roller Top Conveyor Belt
This modular plastic conveyor belt is engineered specifically for light-duty sorting applications. Its specialized roller top surface facilitates smooth product transfer, significantly reducing friction and minimizing potential damage to delicate items. Designed for versatility and durability, the belt is suitable for a wide range of industries including food processing, packaging, and manufacturing, offering a maintenance-free solution that enhances operational efficiency.
Technical Specifications
Max Load Capacity
1.2 tons/sqm
Max Load
- Pitch
- 25 mm
- Thickness
- 12.7 mm
- Rod Diameter
- 4 mm
- Minimum Width
- 180 mm
- Open Area
- 0 %
- Working Temperature
- -40 to 260
Materials and Compliance
Available Colors
WhiteBlueGrayNatureDark-brown
- Material Composition
- PPPOMPEPA
- Regulatory Compliance
- FDA ApprovedEU Compliant
Configuration
Sprocket Compatibility
- 16T Sprocket
- 18T Sprocket
- Square Bore
- Round Bore
Belt Features
| Feature | Status |
|---|---|
| Flight | No |
| Side Guard | No |
| Curve Capability | No |
Applications
Suitable Industries
- Meat & Poultry Processing
- Seafood Processing
- Bakery & Snack Food
- Fruit & Vegetable Handling
- Automotive & Tire Manufacturing
- Packaging & Printing
- Postal & Logistics
- Corrugated Cardboard
- Can & PET Manufacturing
- Textile
