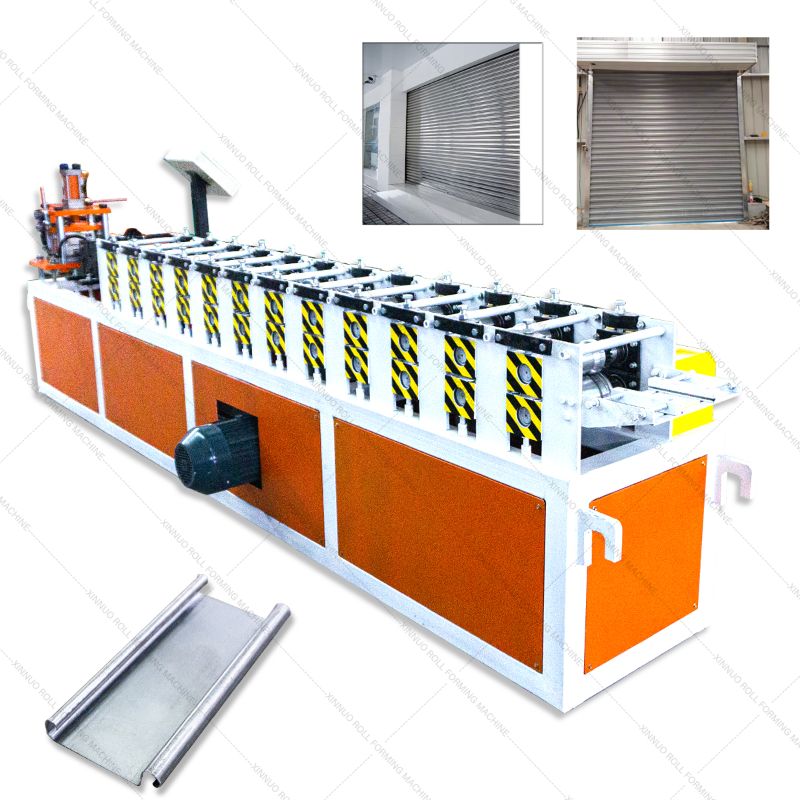

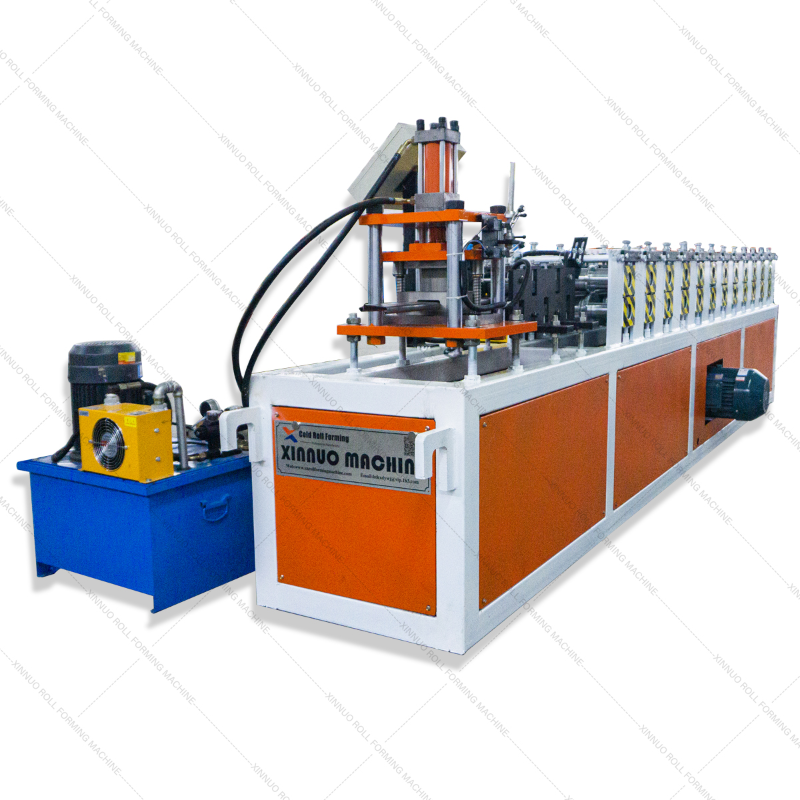

Roll-Up Shutter Door Forming Machine
This machine efficiently produces roll-formed metal profiles for roll-up shutter doors. It utilizes a series of shaped rollers to progressively bend metal strips into the desired profile.
Technical Specifications
Overview
High-Efficiency Shutter Door Production
This industrial cold roll forming machine is engineered for the high-precision manufacturing of metal profiles used in roll-up shutter doors. Combining a robust frame with an automated control system, it delivers consistent dimensional accuracy for both commercial and industrial door applications. The equipment is designed for reliable, continuous production with adjustable parameters to meet diverse material thickness and profile requirements.
Technical Specifications
Material Specifications
| Parameter | Value |
|---|---|
| Material Type | Color steel plate |
| Processing Thickness | 0.6 - 1.2 mm |
| Feeding Width | 1250 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12 |
Power Requirements
- Main Motor Power: 3kw
- Hydraulic Pump Power: 3kw
Mechanical Build
- Side Panel Thickness: 14mm
- Roller Diameter: 42mm
Performance Metrics
Performance Metrics
12 m/min
Max Production Speed
25 rows
Max Roller Stands
1 mm
Precision Tolerance
