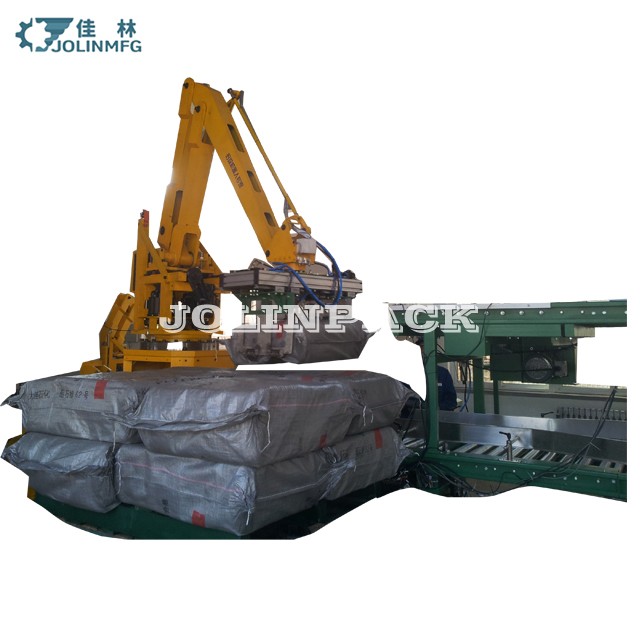

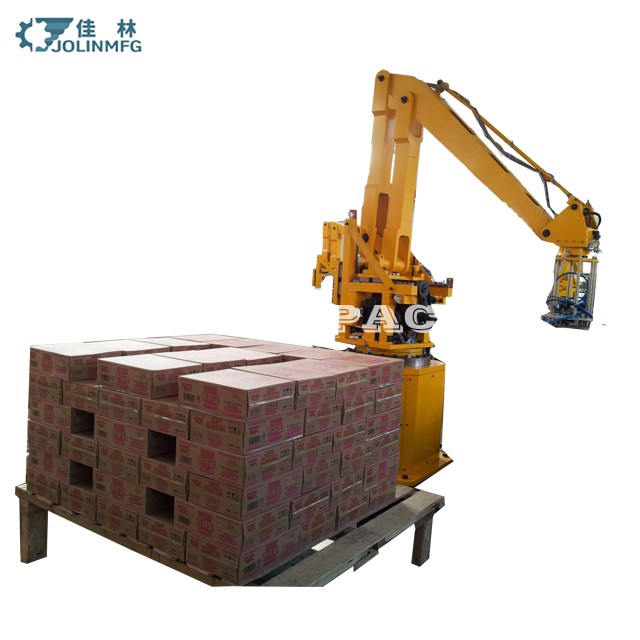

Robotic Palletizer for Bags and Bottles
This robotic palletizer automates the stacking of bags and bottles onto pallets. The system integrates a multi-axis robot arm with advanced control software for optimized pallet patterns.
Technical Specifications
Overview
Automated Palletizing Solution
This fully automatic robotic palletizing system is designed to streamline end-of-line packaging for bags, cartons, and bottles. By integrating advanced robotic arms with precise control systems, it automates the stacking process to increase throughput and reduce labor costs. The system is highly adaptable, featuring programmable palletizing modes and robust hardware to handle diverse industrial packaging requirements efficiently.
Performance Metrics
Throughput Capacity
30 cartons/min
Max Capacity
- Operating Noise
- 75 dB
Technical Specifications
- Power Supply
- 380V AC 50Hz
- Power Consumption
- 10 kW
- Pneumatic Pressure
- 0.5 - 0.6 MPa
- Air Consumption
- 45 NM3/Hour
Palletizing Capabilities
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
- Supported Packaging
- BagsCartonsBottles
System Components
Included Modules
- Group organizing & pushing machine
- Palletizing machine
- Pallet storing machine
- Empty pallet conveyor
- Ready pallet conveyor
Control System
- PLC
- Touch screen interface
- Pneumatic system
