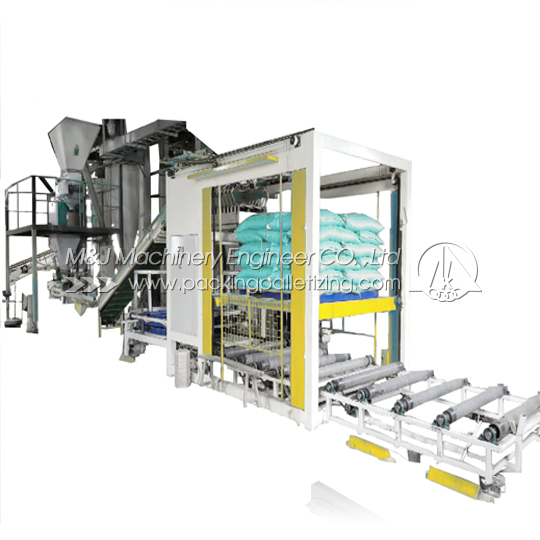

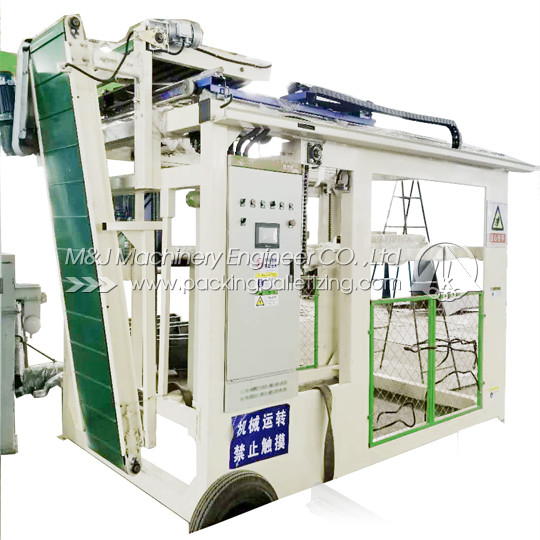

Automatic High Level Bag Palletizer
This high-level palletizing machine lifts and positions bags for organized stacking. It arranges, pushes, layers, and stacks bags according to a set program before outputting the completed pallet.
Technical Specifications
Overview
High-Efficiency Palletizing Solution
This automatic high-level bag palletizer is designed to streamline end-of-line packaging operations with high speed and precision. By transporting bags to a specific height before marshalling, layering, and stacking, it ensures stable and consistent pallet formation. It is highly suitable for industrial applications including fertilizer, flour, cement, rice, chemical raw materials, and feed stuffs.
Technical Specifications
Stacking Speed
- 600-800 bags/hour
- 800-1200 bags/hour
- 1200-2000 bags/hour
- Model
- MJ
- Stacking Height
- 1800 mm
- Minimum Stacking Height
- 1300 mm
- Compressed Air Pressure
- 0.5-0.8 MPa
Dimensions
- Machine Dimensions
- 7300 x 4500 x 3200 mm
- Applicable Pallet Size
- 1000-1200 mm x 1000-1200 mm
Features
Key Features
PLC ProgrammableTouch-screen InterfaceHigh-wear resistance chainImported pneumatic componentsAutomated pallet supply
