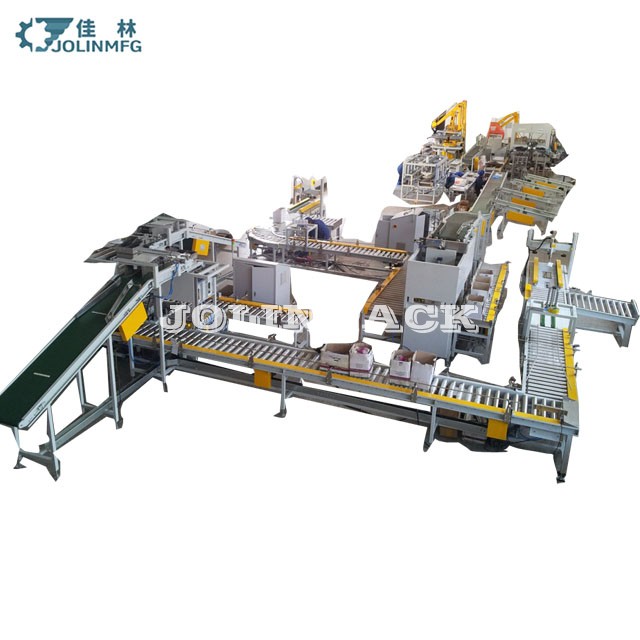

Robotic Pallet Stacking System
This automated system utilizes robotic arms and conveyor systems to efficiently stack and palletize products. It is configurable to handle various product sizes and pallet patterns.
Technical Specifications
System Overview
Automated End-of-Line Palletizing Solution
This automatic palletizing system is engineered for high-efficiency end-of-line packaging, integrating group organizing, bag/carton pushing, and robotic pallet stacking into a single workflow. The system features a robust control architecture including PLC and touch screen interfaces, ensuring precise and repeatable operations. Designed for scalability, it supports various palletizing modes to accommodate specific customer requirements and production line configurations.
- System Components
- Group Organizing UnitBag/Carton PusherPalletizing RobotPallet Storing UnitEmpty Pallet ConveyorReady Pallet Conveyor
Technical Specifications
Performance Metrics
30 cartons/min
Max Capacity
75 dB
Noise Level
Power Requirements
380 V AC
Voltage
50 Hz
Frequency
10 KW
Power Consumption
Pneumatic Specifications
0.6 MPa
Max Pressure
45 NM3/Hour
Air Consumption
Operational Details
Control System
- PLC Controller
- Touch Screen Interface
- Pneumatic System
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
