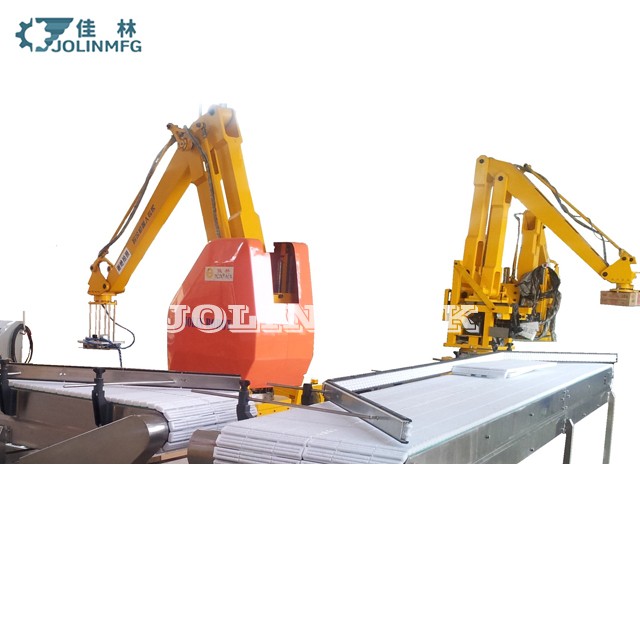

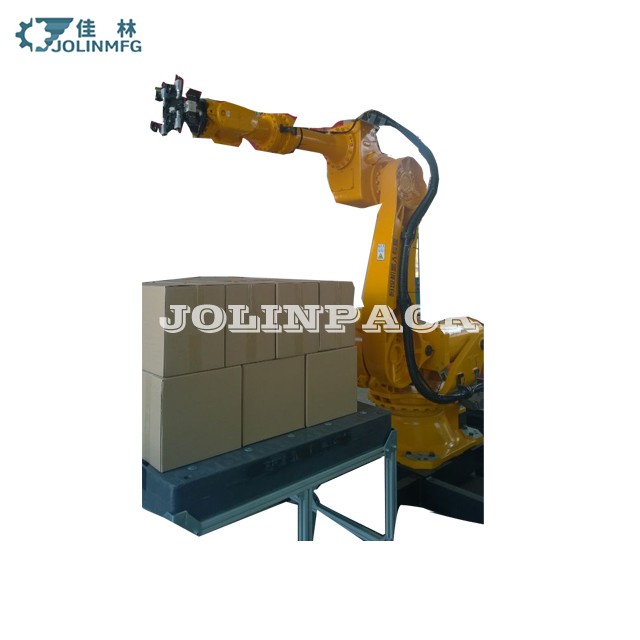

Automated Pallet Stacking Robot
This automated pallet stacking robot is designed for integration into packaging lines. It utilizes a multi-axis arm and robust gripper for precise and efficient handling of cartons and bags.
Technical Specifications
System Overview
Automated Palletizing Solution
This automated palletizing system is designed to streamline end-of-line packaging operations by integrating group organizing, bag/carton pushing, and pallet storage. The system features a robust conveyor setup and an advanced control system utilizing a PLC and touch screen interface. It is engineered to provide precise, customizable palletizing patterns for cartons, bags, bottles, and cans.
Technical Specifications
Performance Metrics
30 cartons/min
Max Capacity
10 KW
Power Rating
75 dB
Noise Level
Utility Requirements
| Parameter | Specification |
|---|---|
| Power Supply | 380V AC, 50Hz |
| Pneumatic Pressure | 0.5 - 0.6 MPa |
| Air Consumption | 45 NM3/Hour |
System Configuration
System Components
- Group organizing unit
- Bag/carton pushing machine
- Palletizing machine
- Pallet storing machine
- Empty pallet conveyor
- Ready pallet conveyor
- Control Features
- PLC ControlTouch Screen InterfacePneumatic System
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
