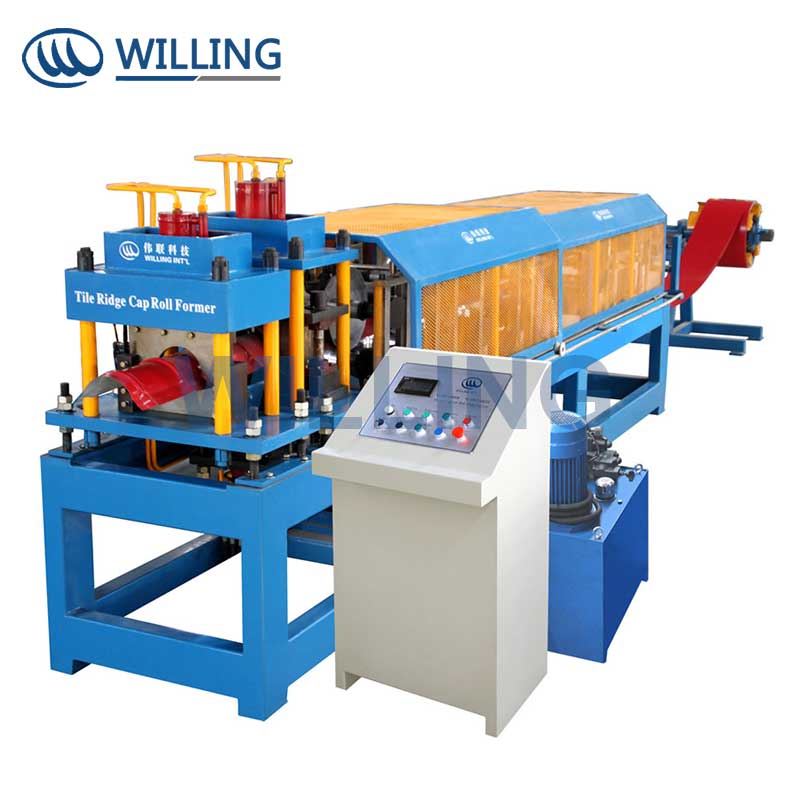

Ridge Cap Roll Forming Machine for Roofing
This ridge cap roll forming machine produces ridge caps for roofing applications. It utilizes forming rollers to shape metal sheets into the desired profile.
Technical Specifications
Product Overview
High-Performance Ridge Cap Roll Forming Solution
This professional-grade ridge cap roll forming machine is engineered for the efficient and precise manufacturing of roofing ridge caps. It features a robust steel frame and a high-precision hydraulic system to ensure stability and consistent product quality during high-volume production. Designed for versatility, it supports various metal materials and provides users with intuitive controls for parameter management and automated operation.
Technical Specifications
Performance Metrics
15 m/min
Max Forming Speed
0.7 mm
Max Material Thickness
550 Mpa
Max Yield Stress
5,000 kg
Total Machine Weight
Power Specifications
| Component | Power Rating |
|---|---|
| Main Motor | 5.5 |
| Hydraulic Station | 3 |
| Total Consumption | 8.5 |

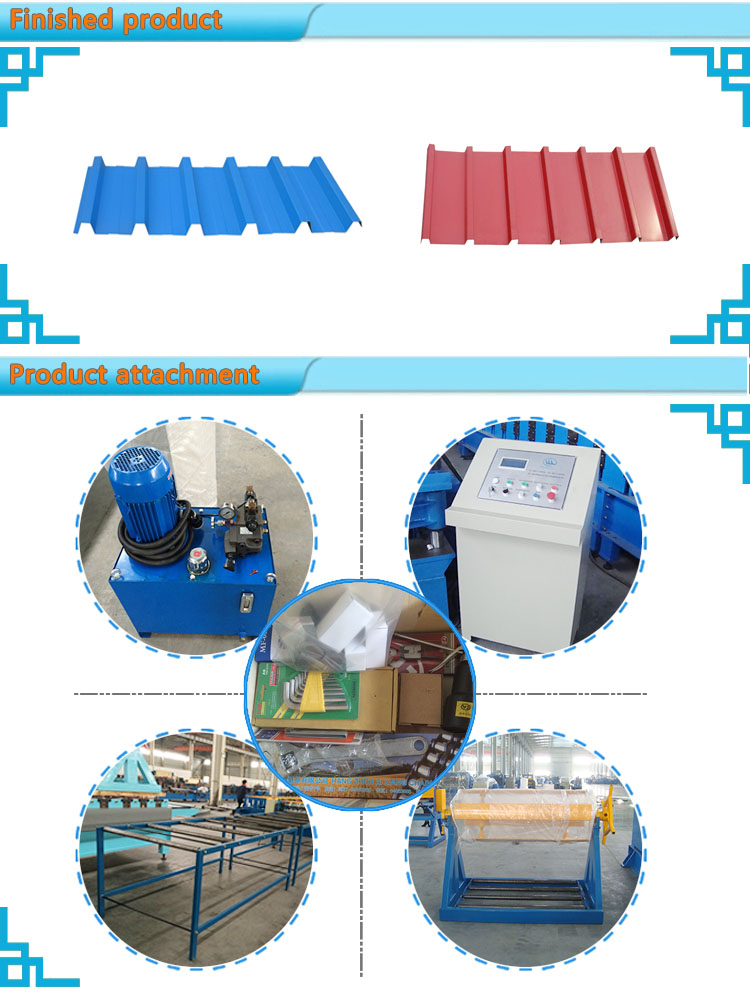

Key Components
- Uncoiler
- Adjustable Guide Device

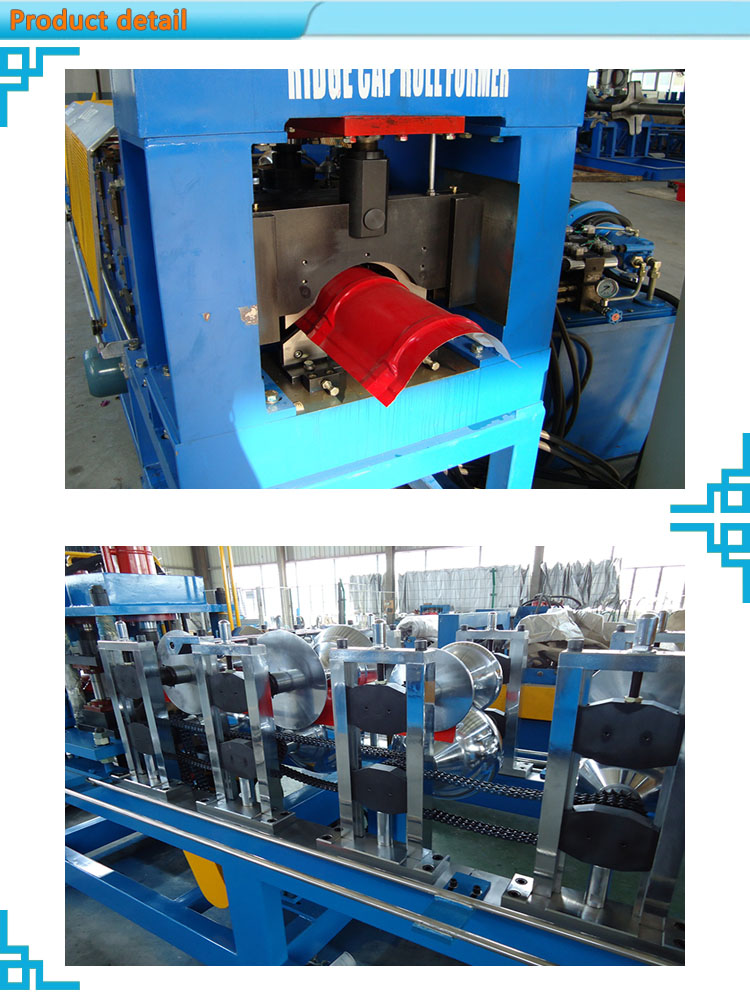

- Roll Forming System
- Hydraulic Cutting Equipment
- PLC Control Panel
- Panel Supporter
- Construction Details
- 45# Steel RollersChrome Treated RollersChain TransmissionHydraulic System 12Mpa
Service & Support
Support Package
- 1-year warranty for the whole machine
- 24/7 technical support (email, phone, messaging)
- Instruction manuals and operational videos provided
- On-site installation and training services available
