Ridge Cap Forming Machine

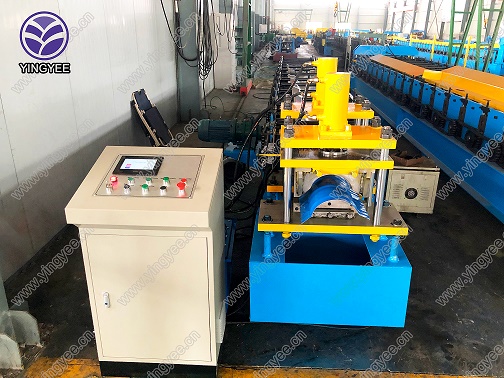

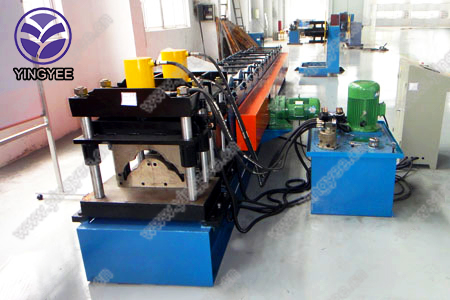

This ridge cap forming machine efficiently produces ridge caps for roofing applications. It shapes metal sheets into the desired profile using a series of rollers and includes a control panel for automated operation.
Technical Specifications
Product Overview
Precision Ridge Cap Production
This automated roll forming machine is engineered for the high-efficiency manufacturing of roofing ridge caps. It features a robust construction with a dedicated PLC control system for precise parameter adjustments and consistent quality. Equipped with a hydraulic cutting mechanism and a specialized feeding system, it is designed to process materials like galvanized steel and aluminum into accurate, ready-to-install profiles.
Technical Specifications
Forming Speed
6 m/min
Minimum Speed
8 m/min
Maximum Speed
- Motor Power
- 5.5 kW
- Roll Stations
- 13
- Supported Thickness
- 0.2 - 0.8 mm
- Compatible Materials
- PPGIGIAluminium
- Shaft Specifications
- 45# Steel, 75mm Diameter

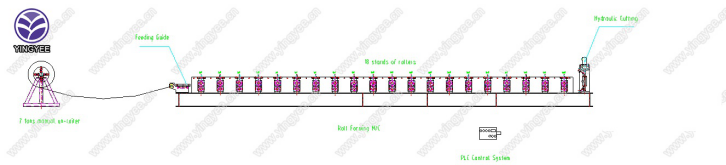

Machine Configuration
Included Components
- Manual Coiler
- Adjustable Input Equipment
- Main Roll Forming Machine with Chromed Plate
- Hydraulic Cutting System
- Hydraulic Station
- PLC Control System
