Technical Specifications
Product Overview
Professional Electrical Protection

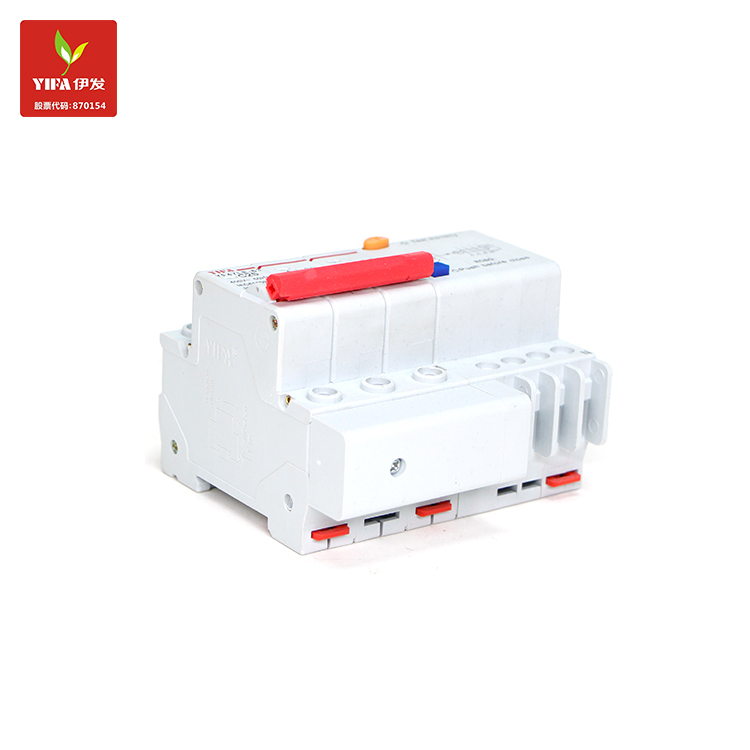

This residual current circuit breaker with overcurrent protection (RCBO) provides a comprehensive safety solution for architectural lighting and distribution systems. Designed for reliability, the device integrates protection against electric shock, overload, and short circuit faults into a single compact unit. It adheres to international safety standards, ensuring high performance for both residential and commercial electrical infrastructures.
Technical Specifications
Electrical Performance Metrics
400 V
Rated Voltage
50 Hz
Frequency
6,000 A
Breaking Capacity
Device Parameters
| Parameter | Details |
|---|---|
| Rated Currents (In) | 6 / 10 / 16 / 20 / 25 / 32 A |
| Poles Available | 1P, 2P, 3P, 4P |
| Power Factor (COSφ) | 0.7 |
| Leakage Current Options | 30 / 50 / 100 / 300 mA |
- Regulatory Standards
- IEC61009-1GB16917.1
Physical Attributes

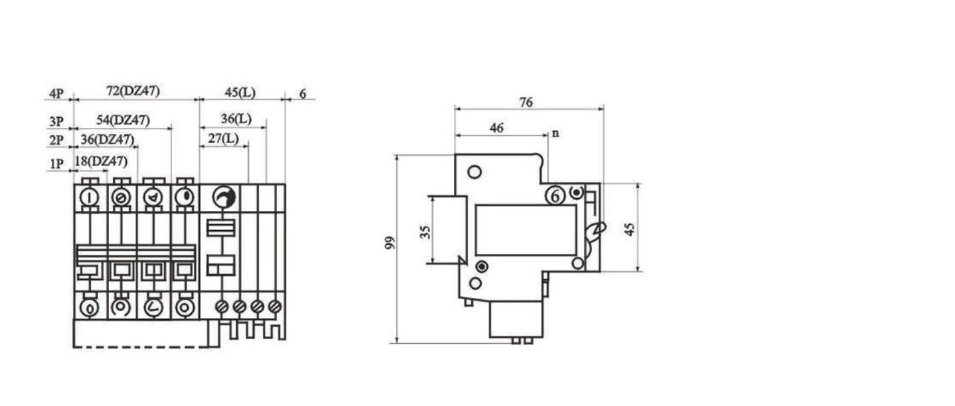

Dimensional Profile
- 1P: 18mm
- 2P: 36mm
- 3P: 54mm
- 4P: 72mm
- Overall Height: 99mm
- Depth: 76mm

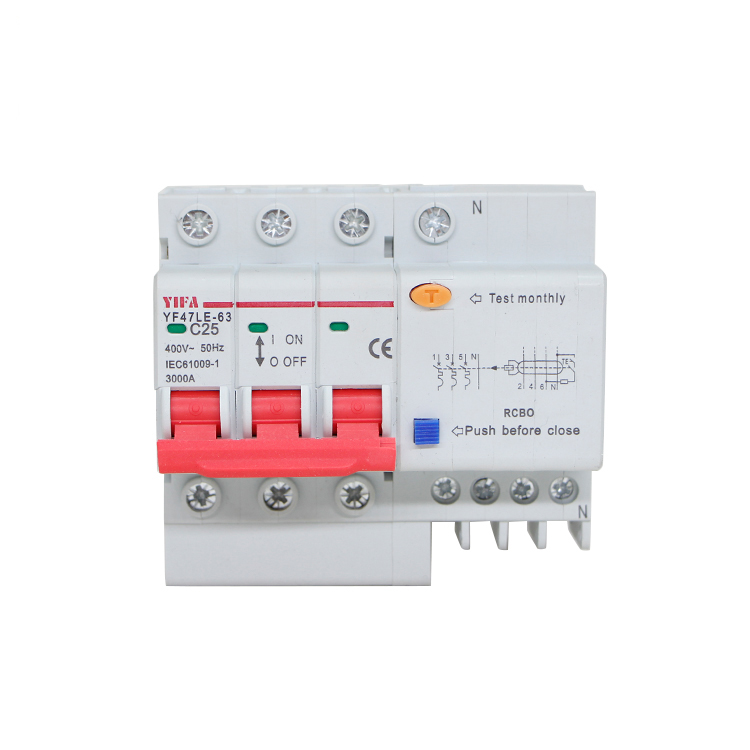

Safety Features
Test ButtonOn/Off IndicatorPush-to-close mechanismDIN rail mountable
