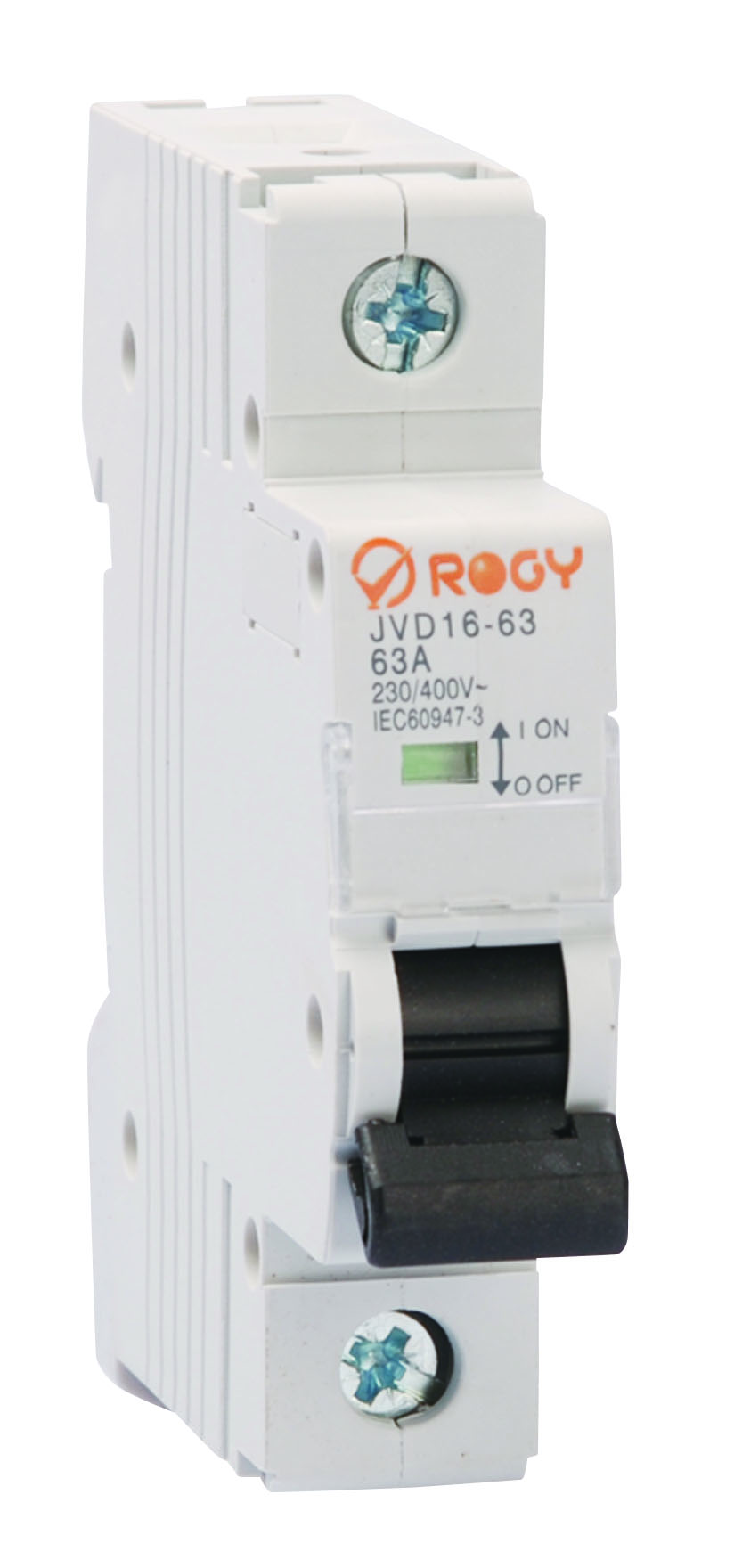

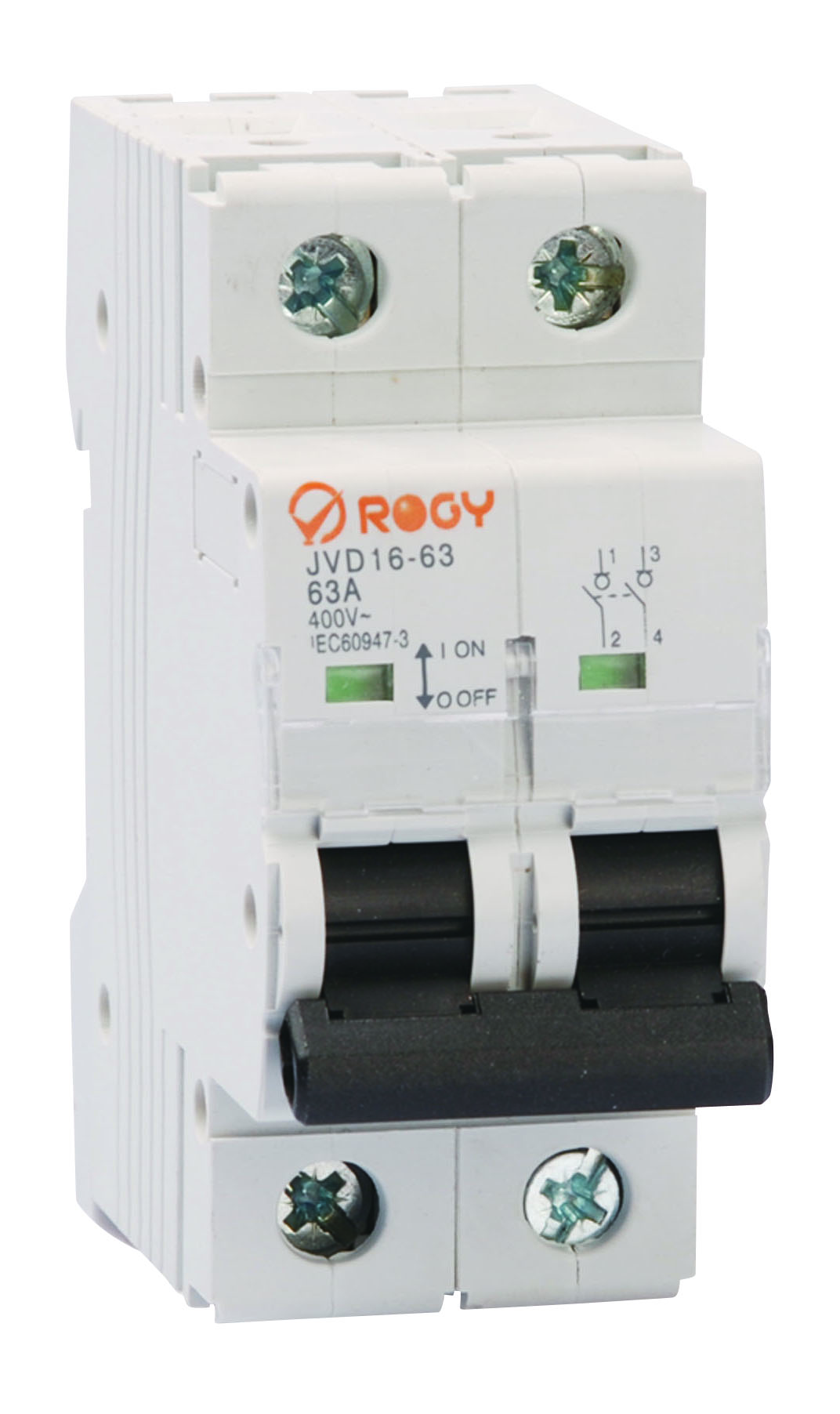

63A Miniature Circuit Breaker
This miniature circuit breaker is rated at 63A and 400V, suitable for residential, commercial, and industrial applications. It provides overload and short-circuit protection and complies with IEC60947-3 standards.
Technical Specifications
Product Overview
Professional Electrical Protection
The 63A Miniature Circuit Breaker is engineered to provide reliable switching and protection for electrical circuits in residential, commercial, and industrial environments. This versatile device supports quick-release stored energy operation and includes a padlockable mechanism for enhanced safety during maintenance. With robust short-circuit withstand capacity, it serves as an ideal main switch for modern electrical installations.
Standard Compliance
IEC 60947-3
Technical Specifications
Rated Current Options
- 16
- 25
- 40
- 63
Operating Voltage & Frequency
| Parameter | Rating |
|---|---|
| Rated Voltage | 230/400V AC |
| Rated Frequency | 50/60 Hz |
- Available Pole Configurations
- 1 Pole2 Pole3 Pole4 Pole
Performance Metrics
Performance Highlights
6 kA
Short-Circuit Making Capacity
10,000 cycles
Electro-mechanical Endurance
1 kA
Withstand Current (1sec)
