32A Earth Leakage Circuit Breaker
This mini circuit breaker provides earth leakage protection. It is designed to trip in response to earth leakage faults, preventing electrical shock.
Technical Specifications
Product Overview
Professional Earth Leakage Protection

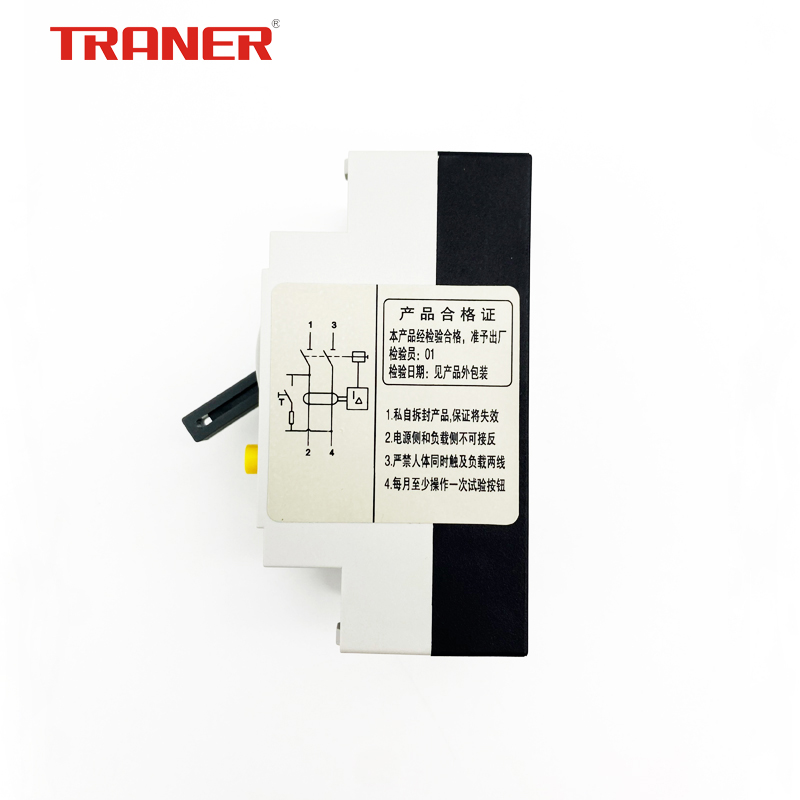

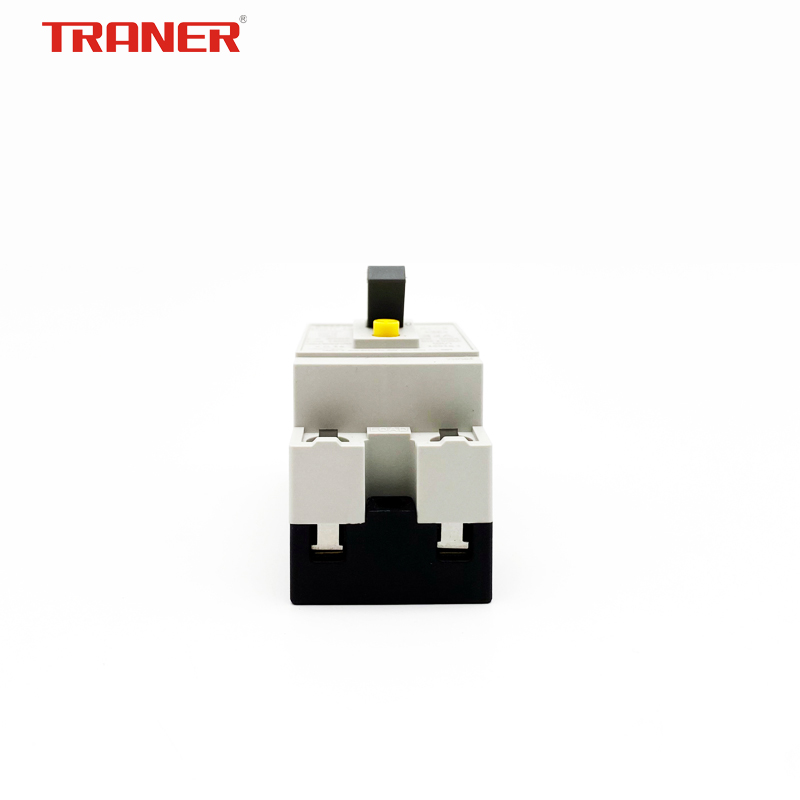

The TNB1L-32(b) is a high-performance miniature safety breaker designed to provide critical earth leakage and ground fault protection in electrical systems. Featuring a compact and patent-protected design, this unit allows for efficient assembly in residential, commercial, and industrial distribution boards. It is engineered to meet rigorous international safety standards, ensuring reliable performance in various power distribution environments.
Key Features
- Advantages
- Compact SizeEasy AssemblyPatent DesignGround Fault Protection
Technical Specifications
Rated Current Options
- 16A
- 20A
- 25A
- 32A
Operating Parameters
230 V AC
Rated Voltage
30 mA
Max Residual Current
0.1 s
Off-time
Operational Endurance
| Type | Operations |
|---|---|
| Electrical | 1,000 |
| Mechanical | 2,000 |
Certifications
Compliance
CECCCIEC/EN 61008-1GB 16916.1
