Remote Electromagnetic Flowmeter with LCD
This electromagnetic flowmeter is a remote type with a liquid crystal display. It is designed for metering conductive liquids and water with stainless steel 304 construction and RS485 signal output.

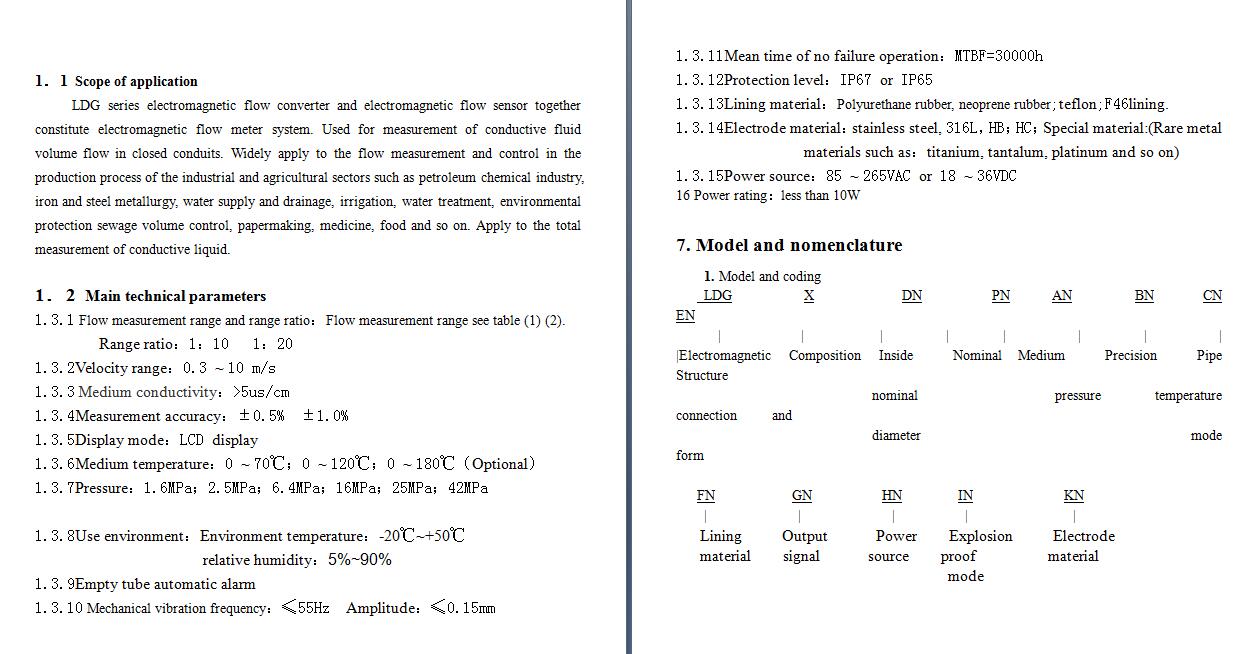

Technical Specifications
Overview

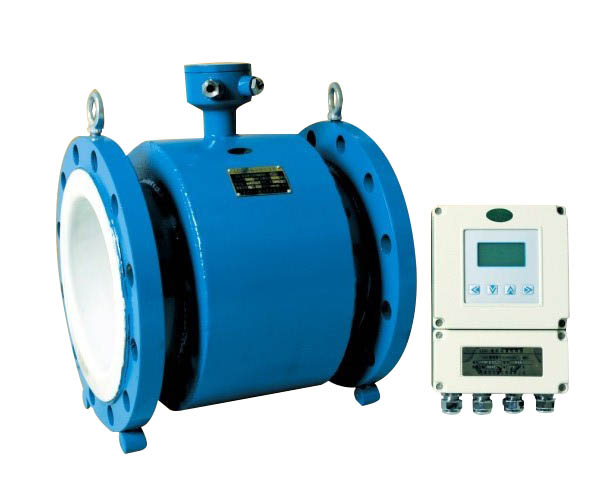

Remote Electromagnetic Flowmeter
This remote-type electromagnetic flowmeter is designed for precise volumetric flow measurement of conductive liquids in closed conduits. Featuring a separated sensor and converter design with an integrated LCD display, it offers flexible installation options for industrial and agricultural applications. Built with robust materials like 304 stainless steel and advanced lining options, this unit provides reliable performance in corrosive environments, including water treatment, chemical processing, and sewage management.
Performance Metrics
Key Performance Metrics
0.5 %
Accuracy
30,000 h
MTBF
10 W
Max Power
- Velocity Range
- 0.3 - 10 m/s
- Minimum Medium Conductivity
- 5 us/cm
Technical Specifications
Protection Level
IP65IP67
Power Source Options
- 85-265 VAC
- 18-36 VDC
- Output Signals
- RS-4854-20mADC2kHz
Materials & Compatibility
Lining Materials
- Polyurethane rubber
- Neoprene rubber
- Teflon (PTFE)
- F46
Electrode Materials
- Stainless Steel 316L
- Hastelloy HB
- Hastelloy HC
- Titanium
- Tantalum
- Platinum
Operational Limits
Nominal Pressure Ratings
- 1.6 MPa
- 2.5 MPa
- 6.4 MPa
- 16 MPa
- 25 MPa
- 42 MPa
- Medium Temperature
- 0-70°C0-120°C0-180°C
