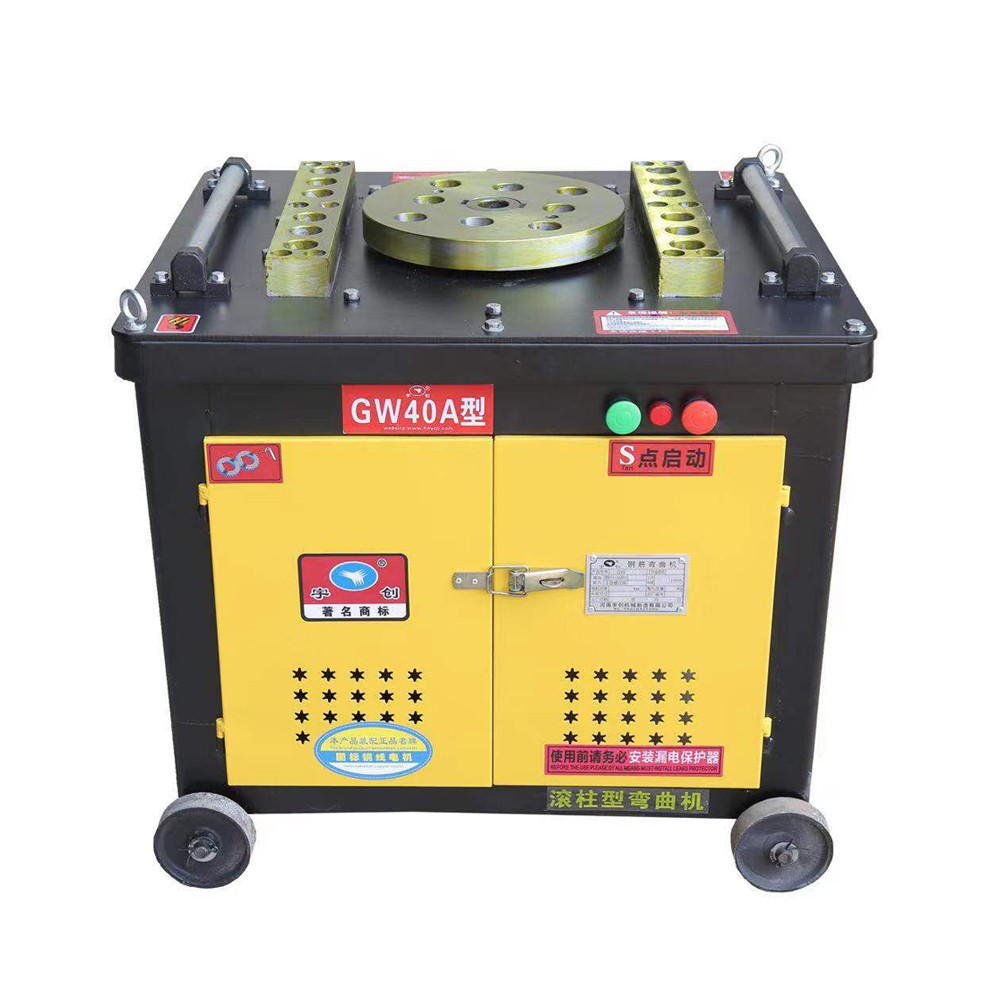

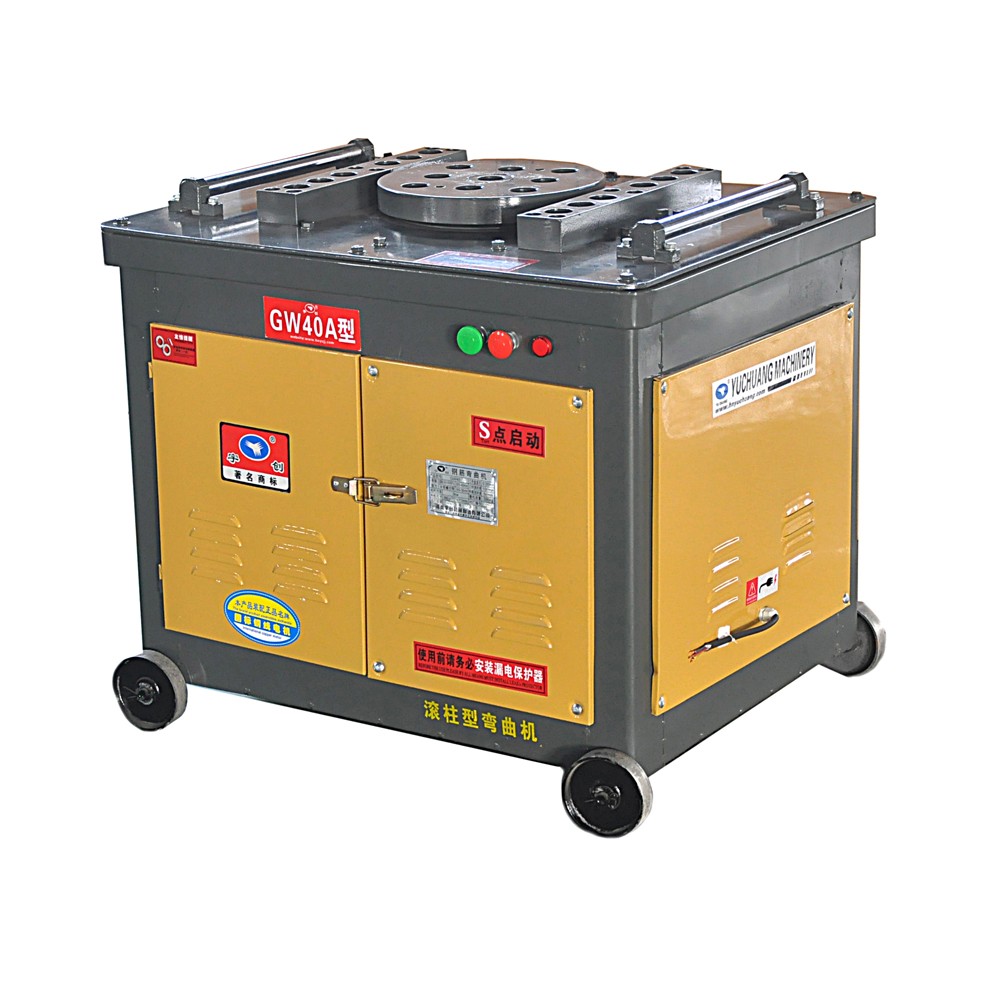

Rebar Bending Machine
This rebar bending machine is a durable and reliable product for steel processing. It efficiently bends steel bars for use in construction and metal fabrication.
Technical Specifications
Product Overview
Professional Grade Rebar Processing
This robust rebar bending machine is engineered for durability and reliable performance in demanding construction environments. Featuring high-quality components like a cast-iron transmission case and precision-forged steel gears, it delivers consistent results when processing heavy-duty steel bars. Designed for efficiency, the system includes a foot-switch operation to streamline workflow and improve operator productivity while maintaining precise control.
Technical Specifications
Model Specifications
| Model | Bending Range | Motor Power | Net Weight |
|---|---|---|---|
| GW42 | 6-40mm | 3KW | 350kg |
| GW50C | 6-50mm | 4KW | 375kg |
| GW50E | 6-50mm | 4KW | 395kg |
- Noise Level
- 75 dB
Construction & Materials
Core Component Materials
- Transmission case: HT250
- Gears: QT 500-7 nodular cast iron
- Gear shaft: 45 carbon steel forged
- Bending mold: Cr12 with heat treatment
Electrical Quality
Schneider Electric components
Performance
Max Bending Diameter (Q235)
50 mm
Max Bar Diameter
- Key Operational Features
- Foot-switch controlLow noiseStable operationEasy reset
