Technical Specifications
Product Overview
Positive Displacement Flow Metering

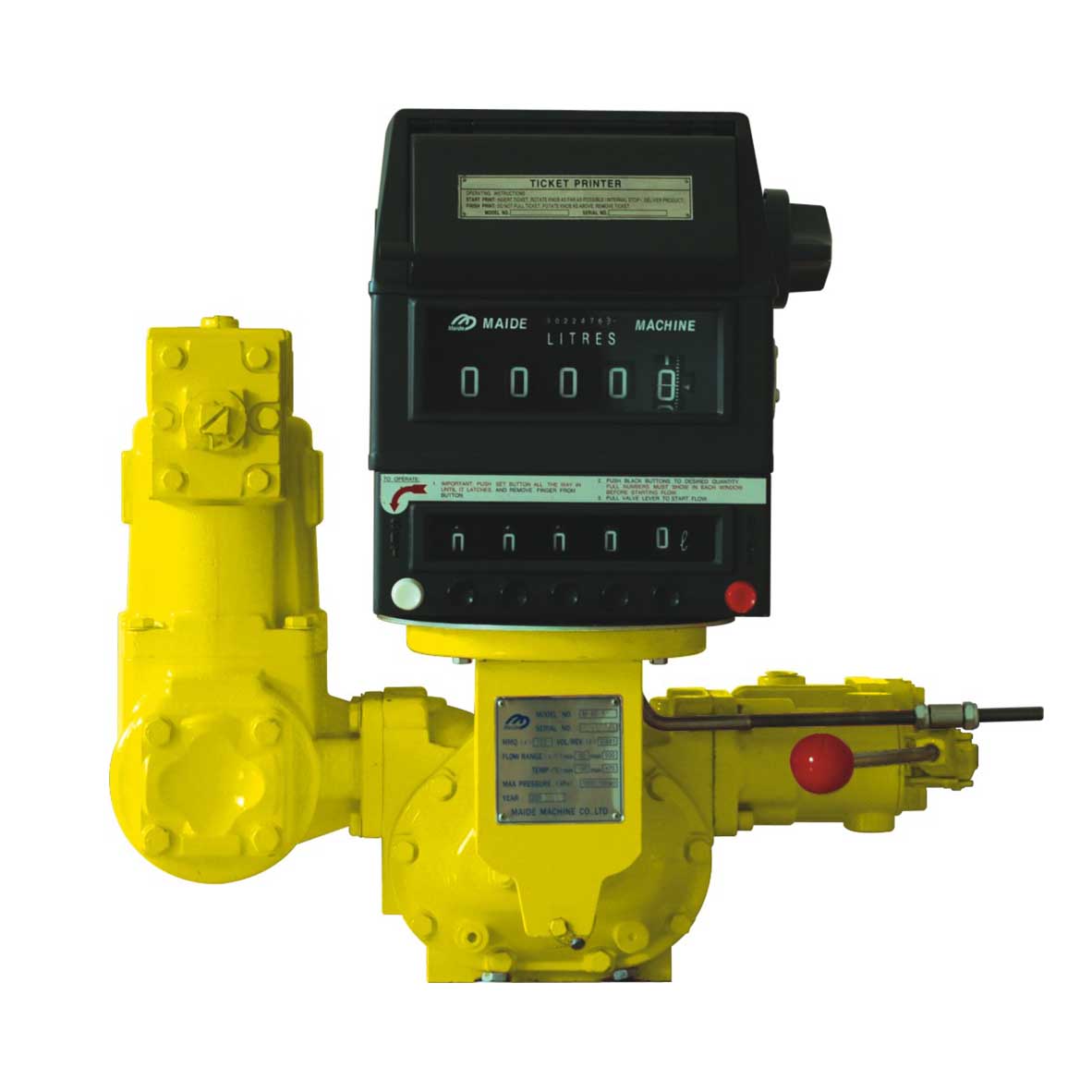

This series of positive displacement meters is engineered for highly accurate liquid metering in both transfer and process control applications. The robust design utilizes two bladed displacement rotors and a central blocking rotor, ensuring a continuous capillary seal without metal-to-metal contact. Equipped with a ticket printer and preset functionality, it provides reliable transaction documentation and precise volume control for industrial fluid management.
Performance Specifications
Flow Rate Capacities
| Model | Size | Flow Range |
|---|---|---|
| M-40-1 | 1.5 inch | 23-230 L/min |
| M-50-1 | 2 inch | 38-380 L/min |
| M-80-1 | 3 inch | 76-760 L/min |
| M-100-1 | 4 inch | 130-1300 L/min |
| M-150-1 | 6 inch | 230-2300 L/min |
- Maximum Pressure
- 10 Bar
- Repeatability
- 0.05 %
Technical Features
Strainer Mesh Compatibility
| Liquid Type | Mesh Size |
|---|---|
| Diesel | 80 Mesh |
| Gasoline | 40 Mesh |
Available Units
- Liter
- US Gallon
- Flange Connections
- ANSINPTBSPF
