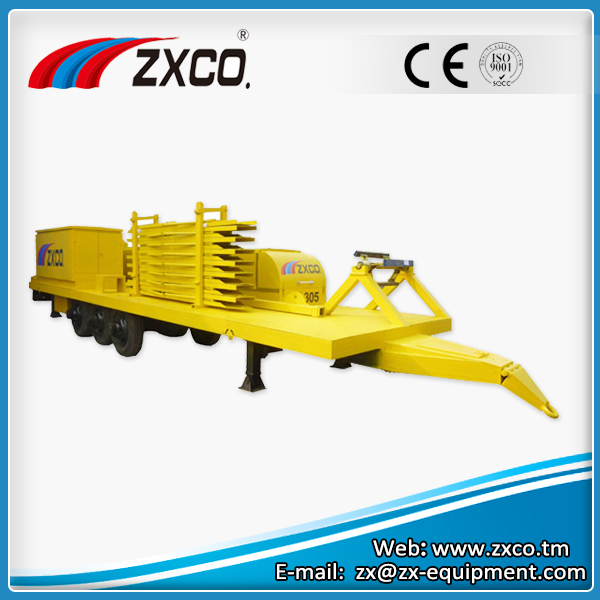

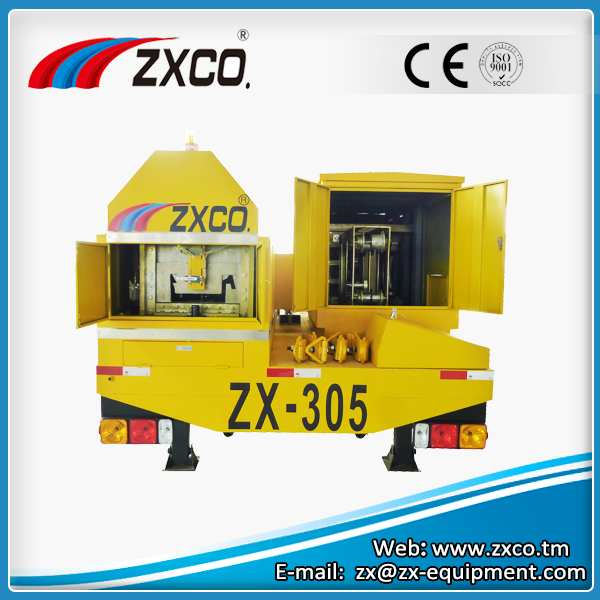

Prepainted Span Arch Roofing Sheet Roll Forming Machine
This machine forms pre-painted metal sheets into arched profiles for roofing. It is engineered for high-volume production and consistent quality of self-supporting arch roofing systems.
Technical Specifications
Product Overview
Large Span Arch Roofing Solution
This automated roll forming machine is engineered for the high-efficiency production of curved arch roofing sheets. It provides a robust, mobile solution for construction projects, enabling on-site fabrication of durable roofing panels with integrated color finishes. Designed for precision and reliability, the system supports versatile structural spans up to 26 meters.
Technical Specifications
Material Capabilities
- Coil thickness: 0.6-1.5mm
- Feeding width: 600mm
- Effective width: 305mm
- Groove depth: 109mm
- Span range: 4-26m
Core Components
| Component | Material |
|---|---|
| Roller | 45# steel |
| Roller Shafts | 45# steel |
| Cutting Blade | Cr12MoV |
- Mounting Dimension
- 8800mm x 2200mm x 2080mm (extendable to 10800mm)
- Total Weight
- 9000 kg
- Control System
- PLC
Power and Performance
Power Ratings
13.5 kw
Main Power
5 kw
Forming Power
5.5 kw
Bending Power
3 kw
Electric Cutting
Working Speeds
- Straight sheet: 15m/min
- Arch sheet: 13m/min
- Sewing: 10m/min
Certifications
- Certifications
- CEISO 9001-2008
Accessories
Standard Accessories
| Name | Amount | Usage |
|---|---|---|
| Sewing machine | 2 | Assembling the sheets |
| Core shaft | 1 | Coil support |
