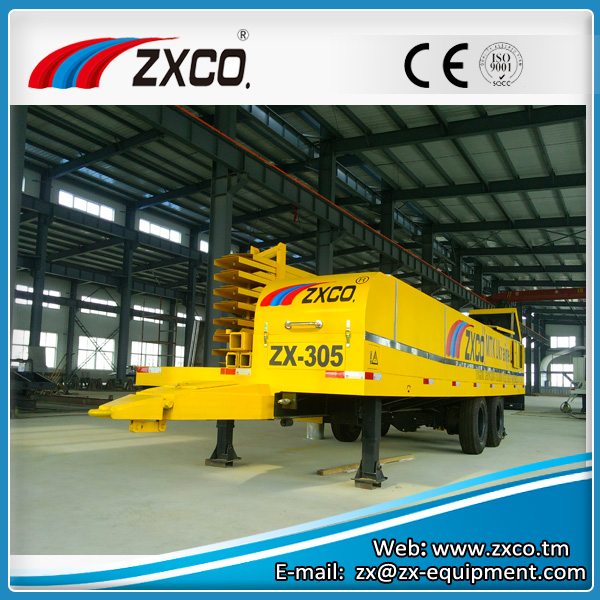

Pre-Painted Roofing Sheet Roll Forming Machine
This roll forming machine is designed for manufacturing pre-painted span arch roofing sheets with consistent accuracy. Its robust construction ensures durability and precision forming capabilities.
Technical Specifications
Overview
High-Efficiency Span Arch Roofing Solution

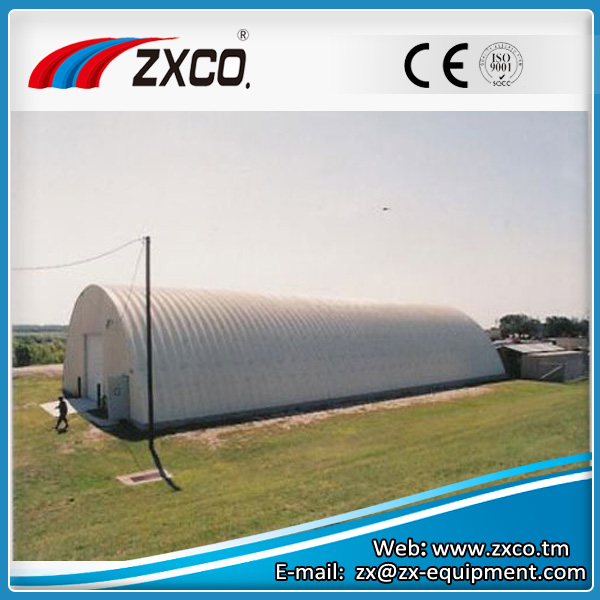

This advanced roll forming machine is engineered for the high-speed production of durable pre-painted span arch roofing sheets. Featuring an automated PLC-controlled system, it ensures precision and consistency for large-scale construction projects requiring spans of up to 26 meters. The robust design supports a wide range of coil thicknesses, making it a versatile and cost-effective asset for professional roofing manufacturers.
Certifications
- Compliance & Standards
- CEISO 9001:2008
Technical Performance
Operating Speeds
15 m/min
Straight Sheet
13 m/min
Arch Sheet
10 m/min
Sewing
Forming Capabilities
- Feeding Width: 600mm
- Effective Width: 305mm
- Groove Depth: 109mm
- Span Capacity: 4-26m
- Roller Steps: 13
Mechanical Specifications
Power Consumption
- 13.5
- 5
- 4
- 1.5
- 3
Material Specifications
| Component | Material |
|---|---|
| Rollers | 45# Steel |
| Roller Shafts | 45# Steel |
| Cutting Blade | Cr12MoV |
Accessories
Included Components
- 2 Sewing machines
- 2 Core shafts
- 1 Coil cradle
- 8 Straight sheets cradles
- 8 Arch sheets cradles
- 3 Driving chains
- Instruction manual & VCD guide
