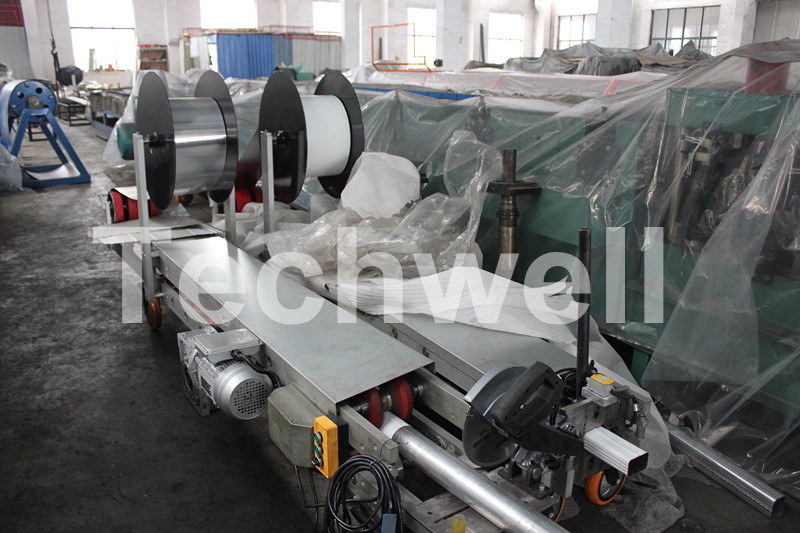

Portable Downpipe Forming Machine
This portable machine is designed for efficient on-site production of downspouts and rainspouts. It shapes metal strips into the desired downpipe profile using rollers, forming dies, and an adjustable feeding mechanism.
Technical Specifications
Overview
Professional Portable Downpipe Solutions
This portable downpipe forming machine is engineered for efficient on-site fabrication of downspouts and rainspouts. Designed for versatility, it handles various materials including aluminum, steel, and copper, ensuring consistent, high-quality output. The system features a robust frame and Urethane drive rollers for smooth, non-twisting operation, making it an essential tool for professional metal roofing and gutter installation projects.
Performance & Capacity
Production Speed
30 ft/min
Standard Speed
60 ft/min
Max Optional Speed
Material Thickness
- Aluminum: .019 - .024 in.
- Steel: 29 - 26 ga.
- Copper: 16 oz.
- Compatible Materials
- AluminumSteelCopper
Technical Specifications
Electrical System
110V220VForward/ReverseEntrance JOG
- Drive System
- Urethane top and bottom drive rollers
- Frame Construction
- 1" x 5" Aluminum side blocks
Configuration
Available Pipe Sizes
- 2" x 3"
- 3" x 3"
- 3" x 4"
- Round 4"
- Automation & Control
- Semi-automatedLength controlLimit switch
- Cutoff Mechanism
- Hand operated Quadra-shear with built-in crimper or cutoff saw
Warranty & Support
- Warranty
- 1 year limited parts warranty
