Technical Specifications
Overview

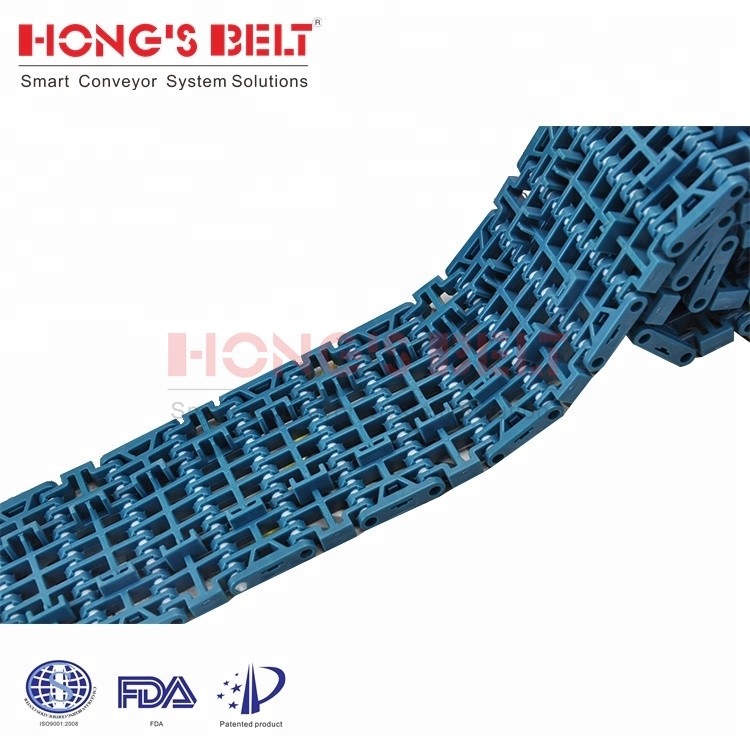

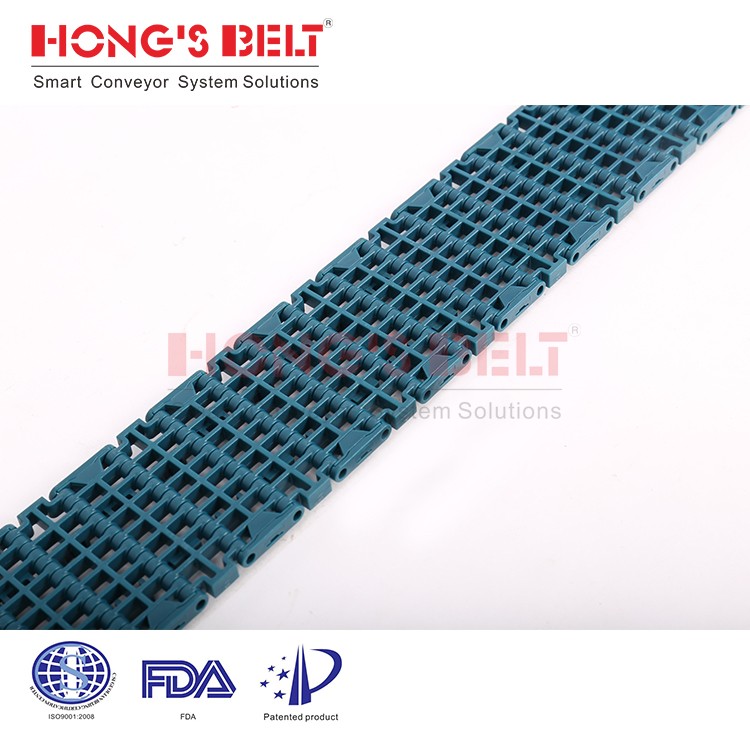

High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is engineered specifically for demanding applications in the food and beverage industry. Designed for durability and hygiene, it features an open-grid surface that facilitates efficient cleaning and drainage. With a high load capacity of up to 1.2 tons per square meter and resistance to extreme temperatures, it provides a reliable, maintenance-free solution for various production environments.
Technical Dimensions
- Pitch
- 25.4 mm
- Thickness
- 8.6 mm
- Minimum Width
- 84 mm
- Rod Diameter
- 4.5 mm
- Open Area
- 42 %
Material & Compatibility
Approvals
FDAEU
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Performance Metrics
Maximum Load Capacity
1.2 tons/m²
Max Load
- Working Temperature
- -40°C to 260°C
Configuration
Sprocket Specifications
- Sprocket Sizes: 12T-2R, 18T-2R, 20T-2R
- Bore Types: Square bore, Round bore
Belt Features
| Feature | Status |
|---|---|
| Flight | No |
| Side Guard | No |
| Curve | No |
