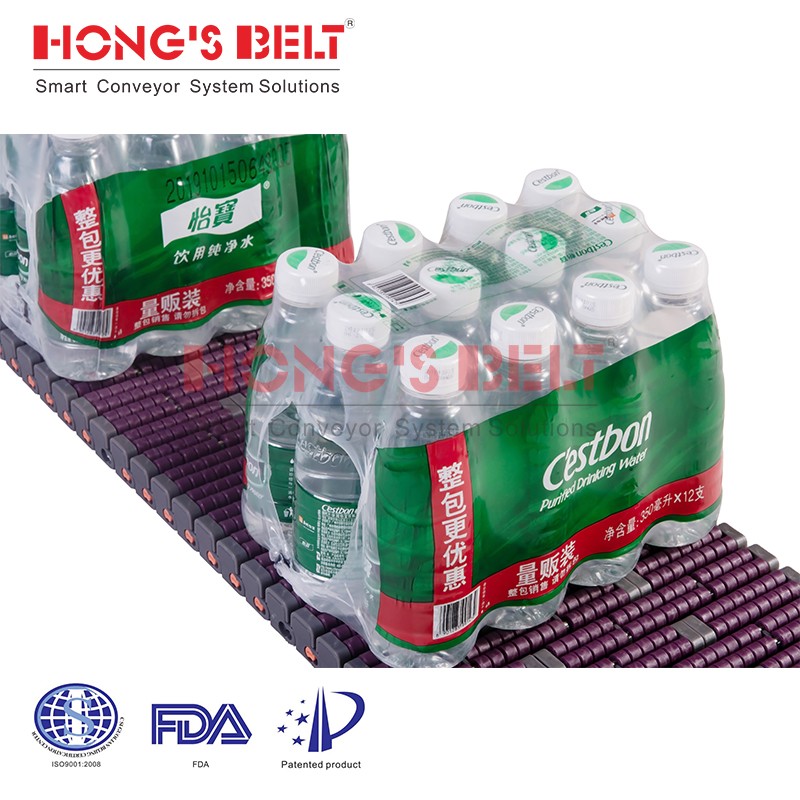

Modular Plastic Conveyor Belt for Beverage Packing
This modular plastic conveyor belt is designed for beverage packing lines. It provides a reliable and efficient solution for conveying packaged beverages.
Technical Specifications
Overview

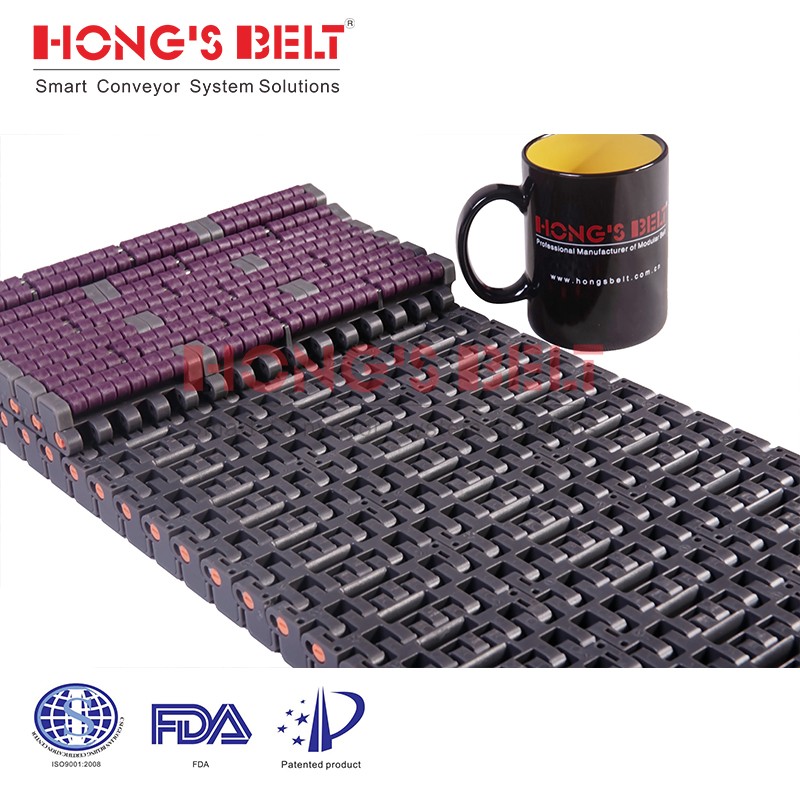

Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered specifically for high-efficiency beverage packing lines. Designed for durability and reliability, it features a robust modular construction that facilitates easy assembly, maintenance, and cleaning. The belt is constructed from food-grade materials, ensuring compliance with safety standards, and is capable of handling significant loads in demanding industrial environments.
Technical Specifications
Max Load Capacity
1.2 tons/sqm
Load Capacity
- Model Type
- HS-LBP1005
- Pitch
- 25.4 mm
- Thickness
- 25.6 mm
- Minimum Width
- 85 mm
- Rod Diameter
- 6 mm
- Open Area
- 0%
- Working Temperature
- -40°C to 260°C
Features & Compliance
Material Options
PPPOMPEPA
Available Colors
WhiteBlueGrayNatureDark-brown
- Certifications
- FDAEU
Applications
Industry Applications
- Meat (beef & pork)
- Poultry
- Sea Food
- Bakery
- Snack Food
- Fruit & Vegetables
- Automotive
- Tire Manufacturing
- Packaging
- Printing/Paper
- Postal
- Corrugated Cardboard
- Can Manufacturing
- PET Manufacturing
- Textile
