Pipe Roll Grooving Machine
The pipe roll grooving machine creates grooves in pipes for plumbing and fire protection systems. It provides a method for preparing pipes for mechanical couplings without welding or threading.
Technical Specifications
Product Overview
High-Efficiency Pipe Grooving Solution

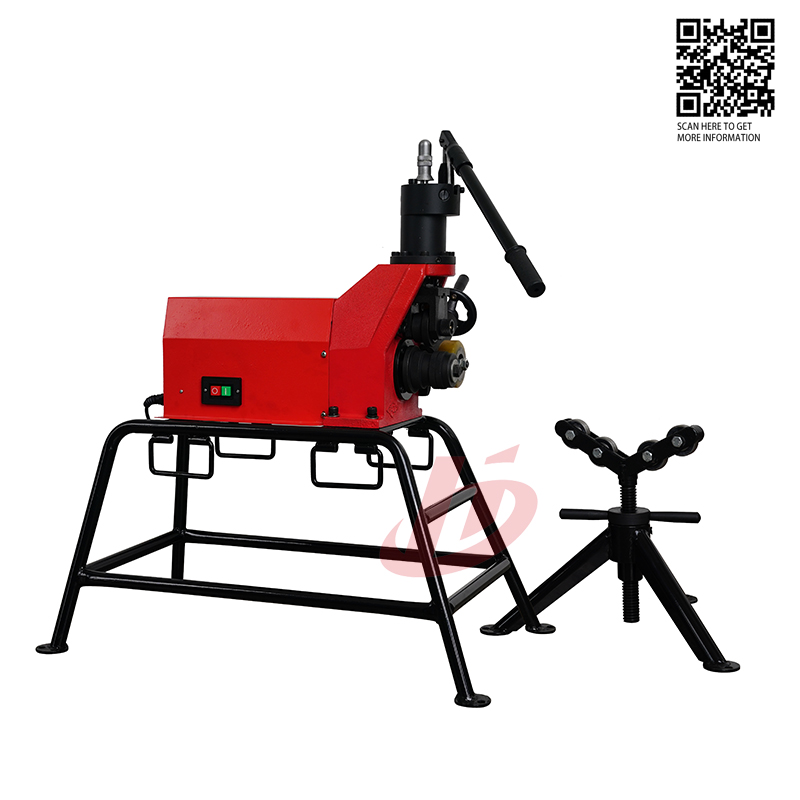

The G08C Pipe Roll Grooving Machine is a high-performance tool engineered for precision grooving on 2"-8" schedule 40 steel pipes. Equipped with a powerful 750W induction motor, it delivers consistent results at 23 rpm while maintaining quiet and steady operation. This robust unit is designed to streamline pipe preparation for fire protection and mechanical piping systems, offering a reliable alternative to traditional welding methods.
Technical Specifications
Performance Metrics
750 W
Power Output
23 rpm
Rotation Speed
- Grooving Capacity
- 2"-8" SCH40 steel pipes
- Max Wall Thickness
- 8 mm
Physical Dimensions
Dimensions and Weight
| Metric | Value |
|---|---|
| Gross Weight | 82 Kg |
| Net Weight | 65 Kg |
| Physical Size | 90 x 52 x 62 cm |
Configuration Options
Power Configurations
| Code | Voltage | Frequency |
|---|---|---|
| 08C20 | 220V | 50Hz |
| 08C10 | 110V | 60Hz |
Standard Equipment
Package Contents
- 1 set of 2"-6" schedule 10/40 Roll Set
- 1 set of 8" schedule 10 Roll Set
- 1 set of stand
