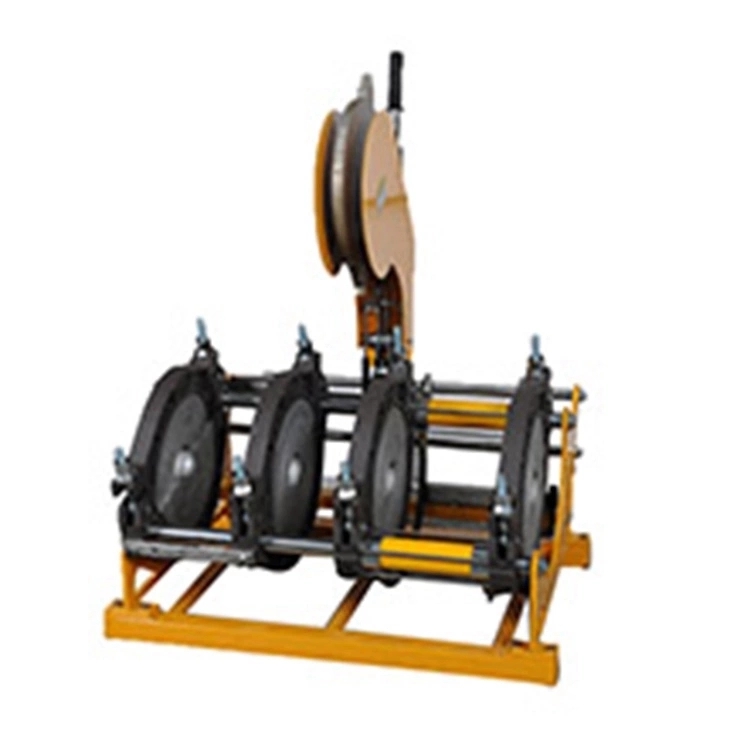

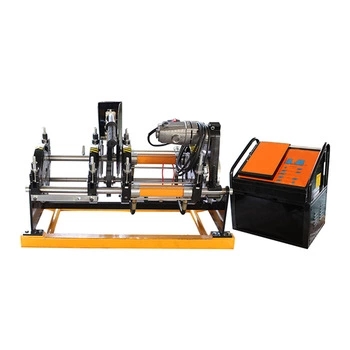

HDPE PE Pipe Welding Machine
This machine is designed for electrofusion and butt fusion welding of HDPE and PE pipes. It provides reliable performance for creating strong and leak-proof pipe connections in various applications.
Technical Specifications
Overview
Professional Pipe Welding Solution
This versatile welding machine is engineered for high-performance electrofusion and butt fusion of HDPE and PE pipes. Featuring a robust frame and precise control systems, it ensures consistent, leak-proof joints for critical infrastructure projects including water supply, gas distribution, and industrial piping. Designed for both workshop and on-site environments, it combines ease of operation with reliable temperature and pressure regulation.
Technical Specifications
Power Consumption
2 kW
Heating Plate
1.1 kW
Milling Cutter
0.75 kW
Hydraulic Station
3.45 kW
Total Power
Performance Metrics
| Parameter | Value |
|---|---|
| Max Heating Plate Temperature | 270°C |
| Surface Temp Difference (170-250°C) | ≤ ±5°C |
| Pressure Adjustment Range | 0.4-6 Mpa |
| Working Voltage | 220V / 50Hz |
- Welding Range
- 63mm75mm90mm110mm125mm140mm160mm180mm200mm
Features & Applications
Key Features
- Robust frame for enhanced stability
- Precise alignment mechanisms
- Integrated control panel for temperature and timing
- Suitable for both electrofusion and butt fusion
- Portable design for on-site and workshop use
Application Areas
Water SupplyGas DistributionIndustrial Piping
