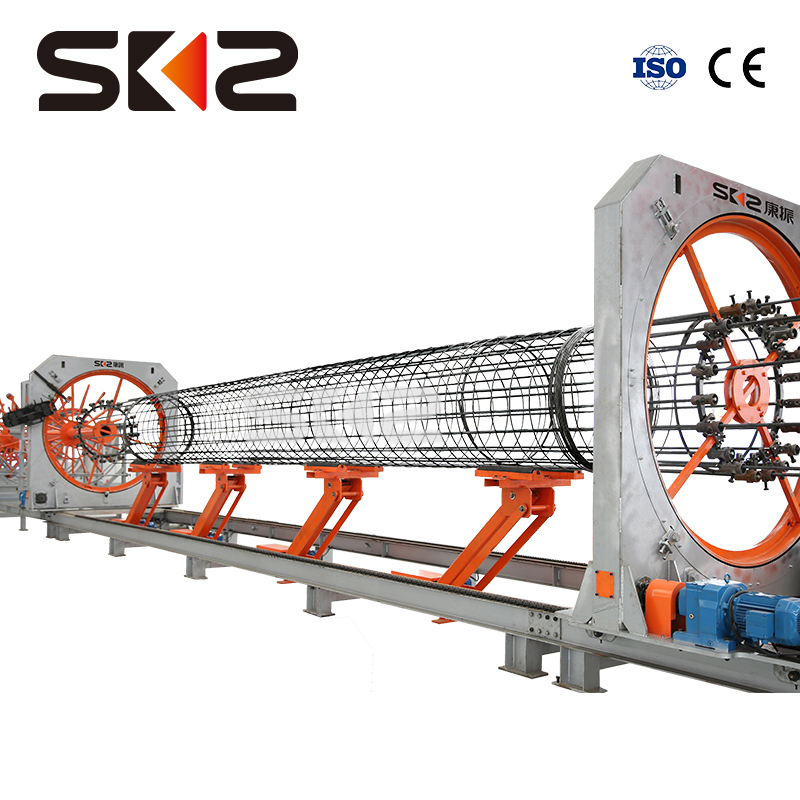

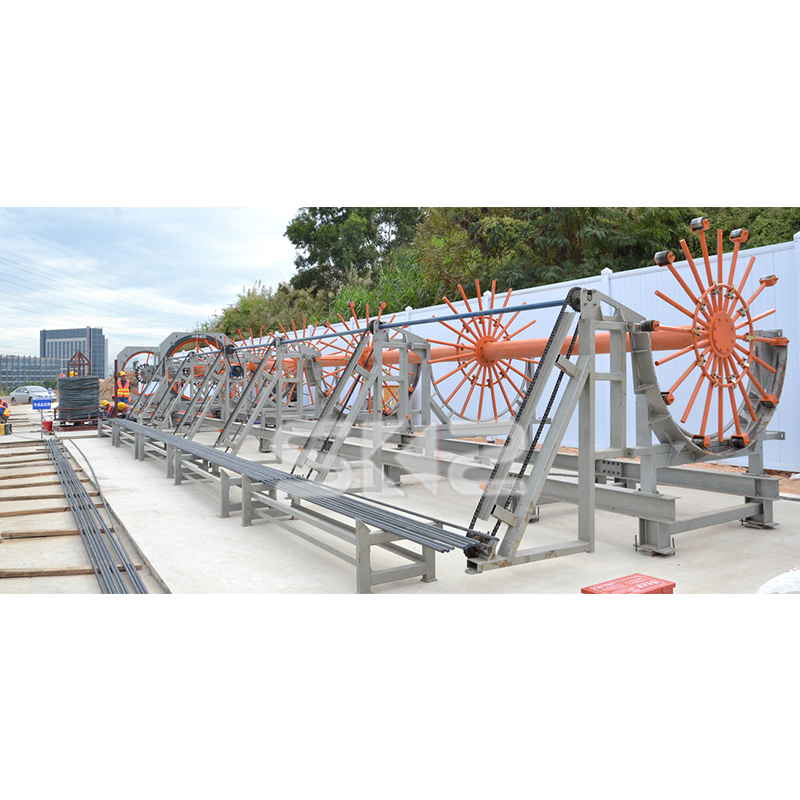

Pile Cage Production Machine
This machine is engineered for the automated production of reinforcing steel cages used in concrete piling and construction. It integrates welding technology and mechanical components to fabricate cylindrical cages with consistent quality and dimensional accuracy.
Technical Specifications
Overview
High-Efficiency Pile Cage Fabrication
The KZ1500X is an automated solution designed for the precise production of reinforcing steel cages used in concrete piling and construction. By integrating advanced welding technology and mechanical control, it ensures uniform spacing between main bars and spirals, significantly improving machining accuracy. This system allows for operation by a single person, reducing labor requirements while minimizing material waste by eliminating the need for spiral overlaps.
Technical Specifications
Cage Dimensions
800 mm
Min Diameter
2,000 mm
Max Diameter
12 m
Max Length
Capacity & Performance
| Parameter | Value |
|---|---|
| Max Cage Weight | ≤4500 kg |
| Main Bar Diameter | Φ16-Φ36 mm |
| Spiral Diameter | Φ6-Φ12 mm |
| Spiral Spacing | 50-500 mm |
| Walking Speed | 1.1 m/min |
| Rotating Speed | 2-5 r/min |
Physical Attributes
Physical Dimensions & Weight
26,500 mm
Length
7,000 mm
Width
2,700 mm
Height
11,000 kg
Main Weight
Certifications & Compliance
Certifications
CEISO
Key Features
Operational Benefits
- High machining accuracy
- Uniform spacing between main bars and spirals
- Single-operator control
- Material savings (approx. 1% reduction in spiral usage)
- Reduced construction costs
