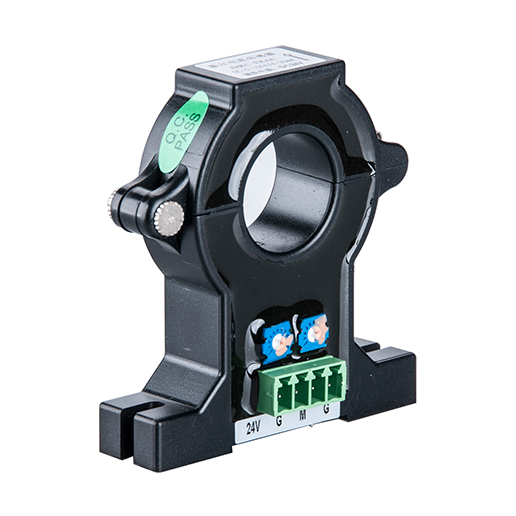

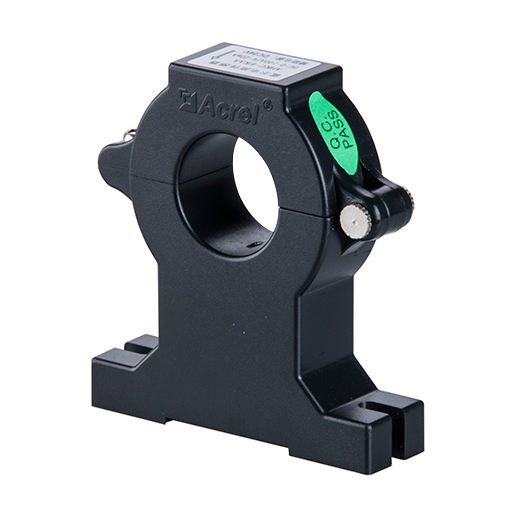

Open Loop Hall Effect Current Sensor
This open-loop current sensor is based on the Hall effect principle and measures AC and DC currents. It provides electrical isolation between the primary and secondary circuits, with an analog output signal proportional to the measured current.
Technical Specifications
Overview
Open Loop Hall Effect Current Sensor
This open-loop Hall effect current sensor is engineered for the precise isolation and conversion of AC, DC, and complex pulse signals. It provides a reliable interface for AD, DSP, and PLC systems, making it an essential component for power monitoring, inverter systems, and motor drives. With its compact design and high-precision output, it ensures seamless integration into demanding industrial control environments.
Performance Metrics
Rated Input Range
50 A
Minimum Input
500 A
Maximum Input
- Rated Output
- 4-20mA
Technical Specifications
- Auxiliary Power Supply
- 12V24V
- Measuring Aperture
- 20 mm
Key Features
Key Advantages
- Quick response time
- Wide measurement range
- High precision and linearity
- Strong overload capacity
- Excellent anti-interference performance
- Compact package size
- Low power consumption
Applications
Typical Applications
Current MonitoringBattery ManagementInvertersSolar PowerDC Motor DrivesElectroplatingWeldingUPS Systems
