Technical Specifications
Overview
Advanced IoT Energy Management
The DEM-6MC is a high-precision multi-function energy meter designed for comprehensive power monitoring and prepaid management in residential and industrial settings. It features a Class 0.2 precision module for real-time acquisition of three-phase electrical data, including harmonics and unbalance. With versatile wireless connectivity options like 4G, WiFi, and IoT, it enables seamless remote monitoring and centralized control for modern energy infrastructure.
Performance Metrics
Key Performance Metrics
0.2 Class
Accuracy Class
63 th
Harmonic Measurement
Measurement Capabilities
Measured Parameters
- Three-phase voltage
- Current
- Active/Reactive Power
- Energy consumption
- Current unbalance
- 63rd Harmonics
Connectivity & Communication
- Wireless Communication Options
- WiFi4GZigbeeLoRaNB-IoT
- Wired Communication
- RS485 (MODBUS-RTU)
Control & Management
Prepaid Management
- Automatic tripping when credit expires
- Power restoration via DI input
- Remote command restoration

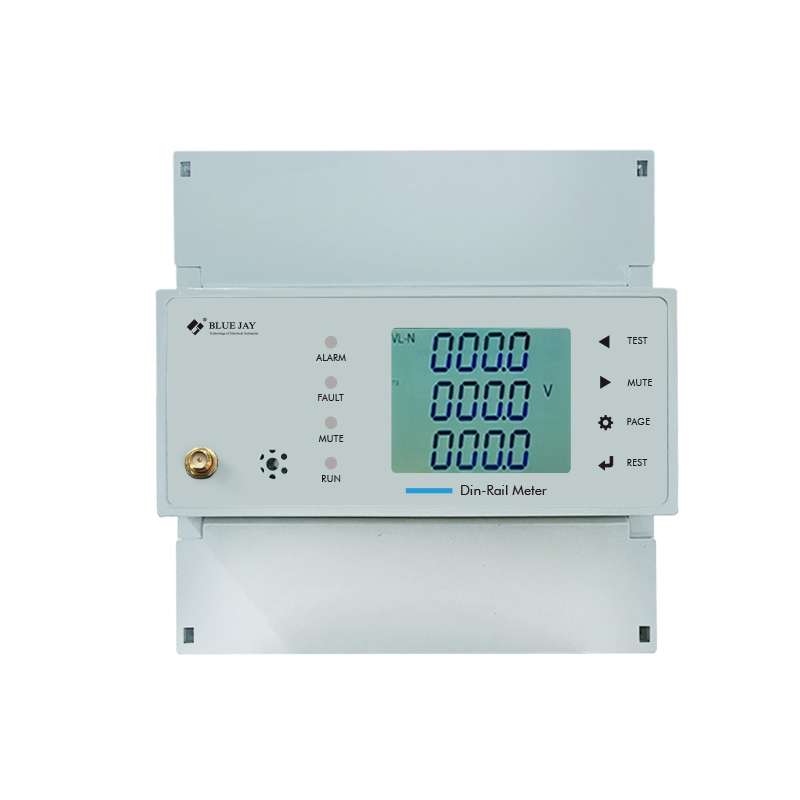

Interface & Operation
HMI Features
- Sound and light alarm system
- Manual mute function
- Manual reset option
- Page navigation buttons
- Status Indicators
- ALARMFAULTRUNTEST

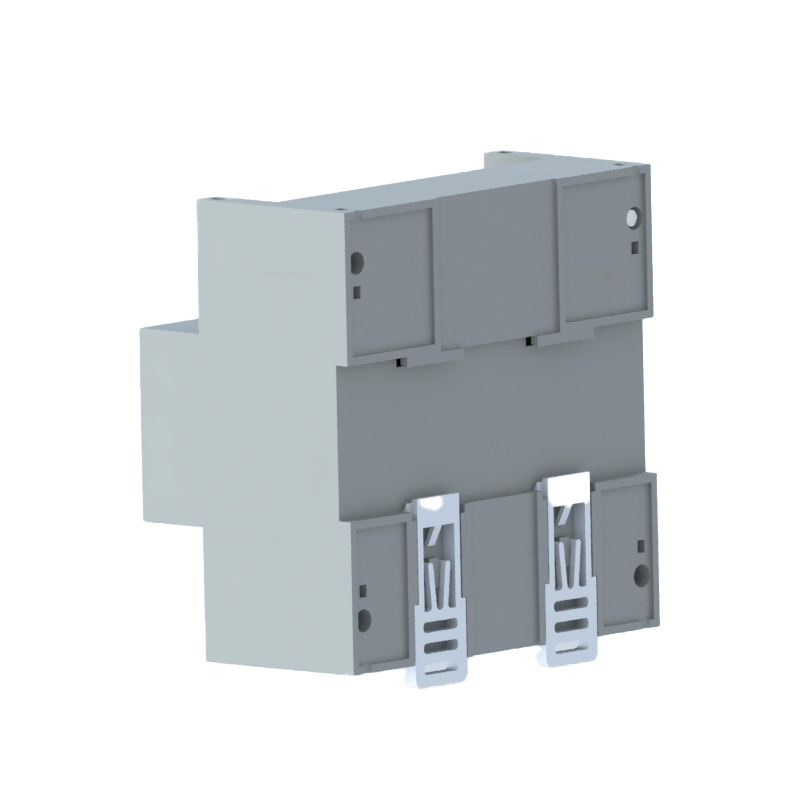

Installation
Mounting Type
DIN-Rail Mounting
