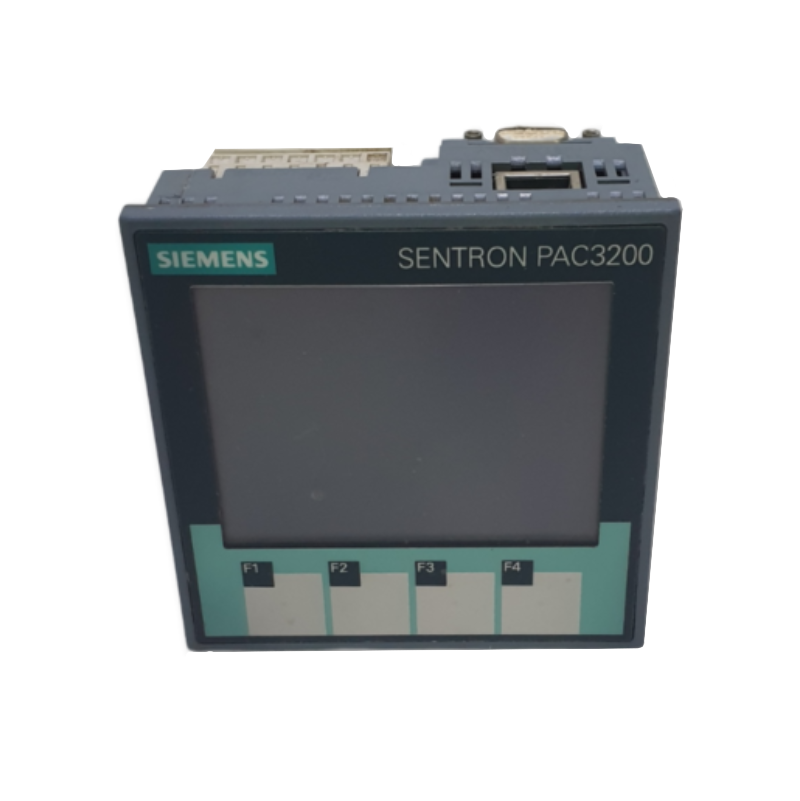

Multifunction Power Meter
This multifunction power meter is designed for accurate measurement and monitoring of electrical parameters in industrial and commercial applications. It measures voltage, current, power, energy, frequency, and power factor, providing comprehensive energy data for efficient energy management.
Technical Specifications
Overview
Compact Power Monitoring Solution
This multifunction power meter is a compact, powerful monitoring device designed for industrial, commercial, and government applications. It serves as an ideal replacement for traditional analog volt and amp meters, capable of tracking over 50 electrical parameters. With support for multiple communication protocols, it integrates seamlessly into building automation and energy management systems to support cost allocation and efficiency programs.
Key Features
Communication Protocols
Modbus RTUModbus TCPPROFINETPROFIBUS-DP
- Suitable Applications
- Industrial ControlBuilding AutomationEnergy MonitoringCost AllocationLEED Certification SupportSCADA Systems
Electrical Specifications
Voltage Measurement Range
40 V
Min Voltage (L-N)
480 V
Max Voltage (L-N)
831 V
Max Voltage (L-L)
Current Measurement Range
1 %
Min Current
120 %
Max Current

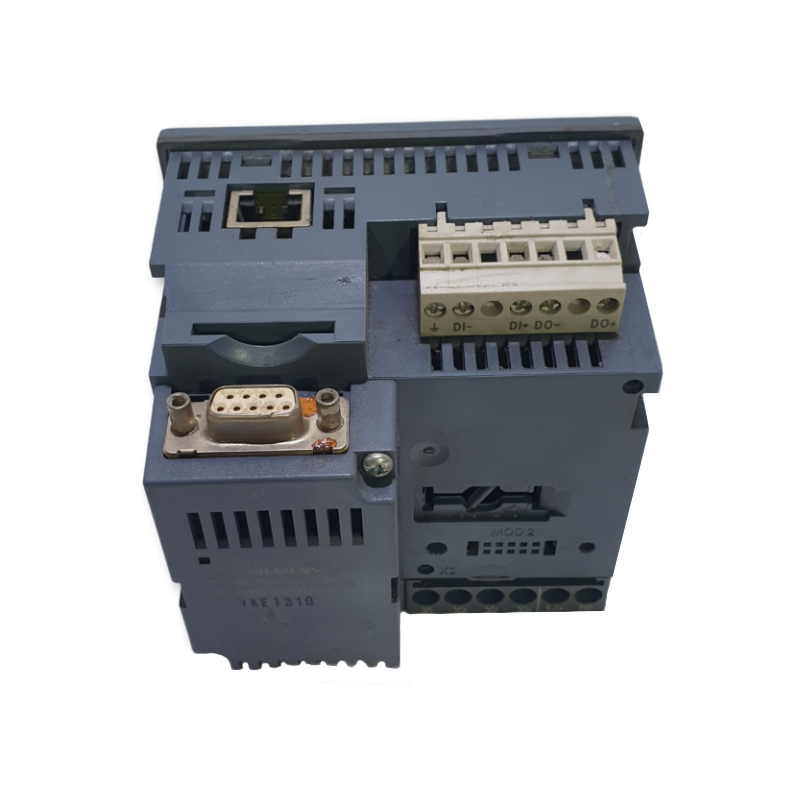

Digital Inputs & Outputs
Digital Input Characteristics
| Parameter | Value |
|---|---|
| Signal <1> Recognition | 13 V |
| Signal <0> Recognition | 8 V |
| Rated DC Voltage | 24 V |
| Input Delay Time (Max) | 5 ms |
Digital Output Characteristics
| Parameter | Value |
|---|---|
| Output Current (Signal 0 Max) | 0.2 mA |
| Output Current (Signal 1 Min) | 27 mA |
| Output Current (Signal 1 Max) | 27 mA |
| Output Current (DC Max) | 100 mA |
| Output Delay (Max) | 5 ms |
