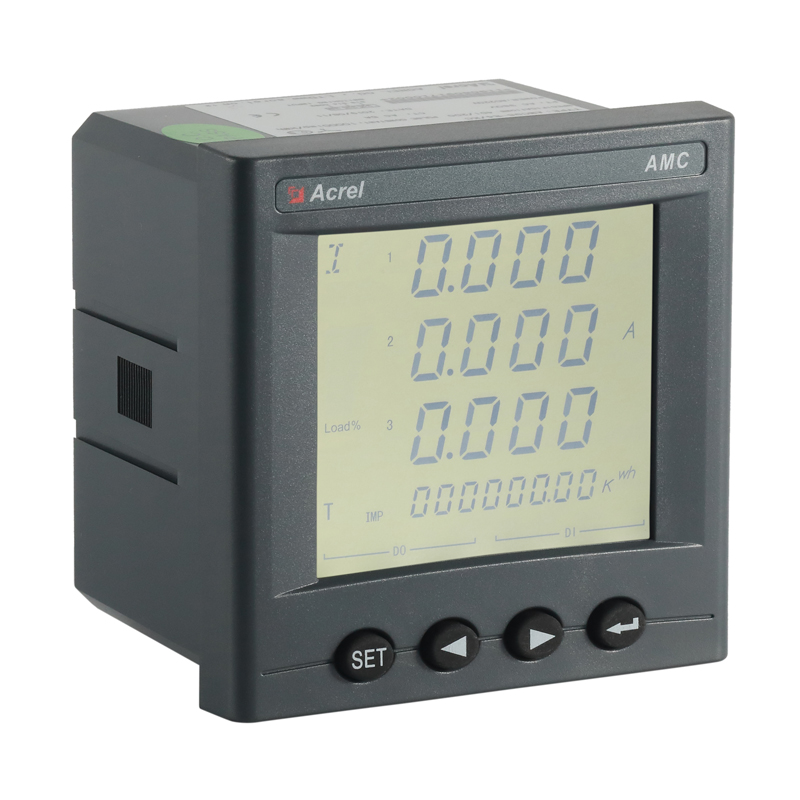

Multifunction Panel Energy Meter with Harmonics Measurement
This multifunction panel energy meter is designed for comprehensive energy monitoring and management. It features true RMS measurements and THD with 2-31st harmonics.
Technical Specifications
Overview
Advanced Multifunction Energy Monitoring
This programmable intelligent three-phase energy meter utilizes advanced AC sampling technology to provide precise monitoring of voltage and current across grid systems. Designed for industrial and commercial applications, it facilitates comprehensive energy management through real-time display and seamless integration with control systems. The device supports harmonic analysis up to the 31st order and offers flexible input/output configurations for enhanced operational control.
Technical Specifications
- Active Energy Accuracy
- Class 0.5
- Frequency Range
- 55 Hz
- Auxiliary Power Supply
- AC/DC 85~265V
- Pulse Output Range
- 1600-160000 imp/kWh
Power Consumption
Power Consumption Details
0.5 VA
Voltage Circuit
0.5 VA
Current Circuit
10 VA
Auxiliary Supply
Capabilities

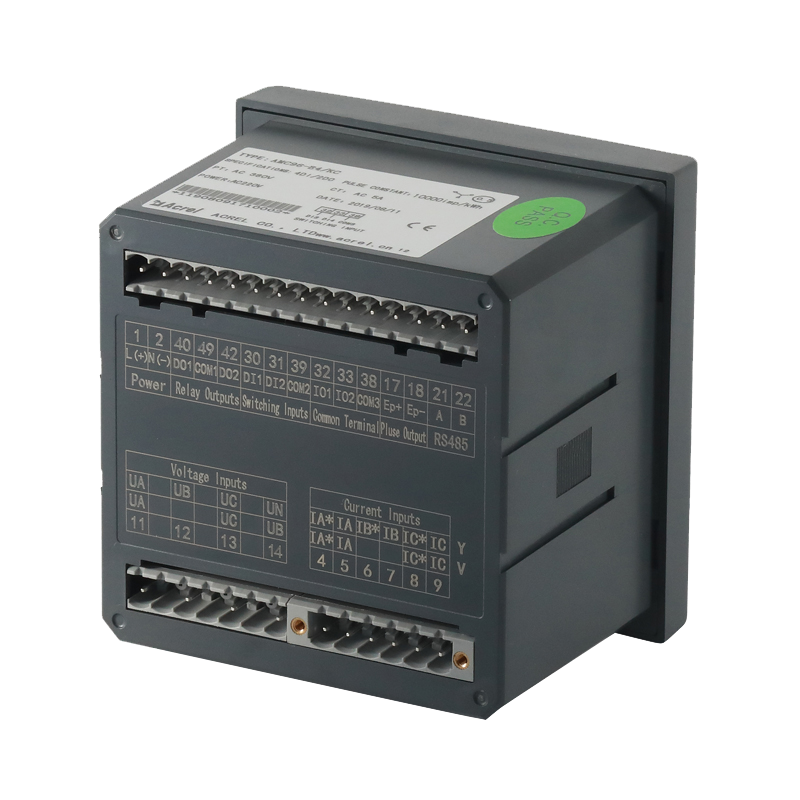

I/O Configurations
- Optional 4DI & 2DO
- Optional 2DI & 2DO & 2AO
- Standard Energy Pulse Output
- Measurement Capabilities
- True RMSTHD Measurement2-31st HarmonicsMax/Min LogTimestamping
