Technical Specifications
Overview

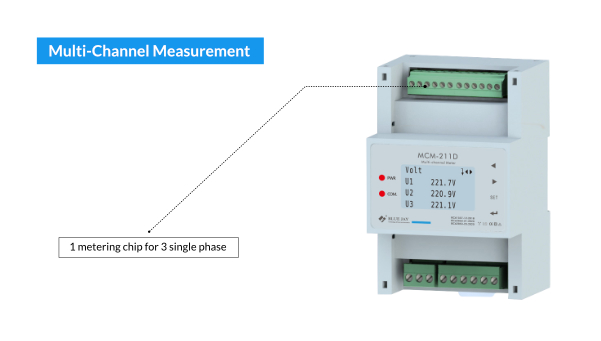

Multi-Channel Energy Monitoring

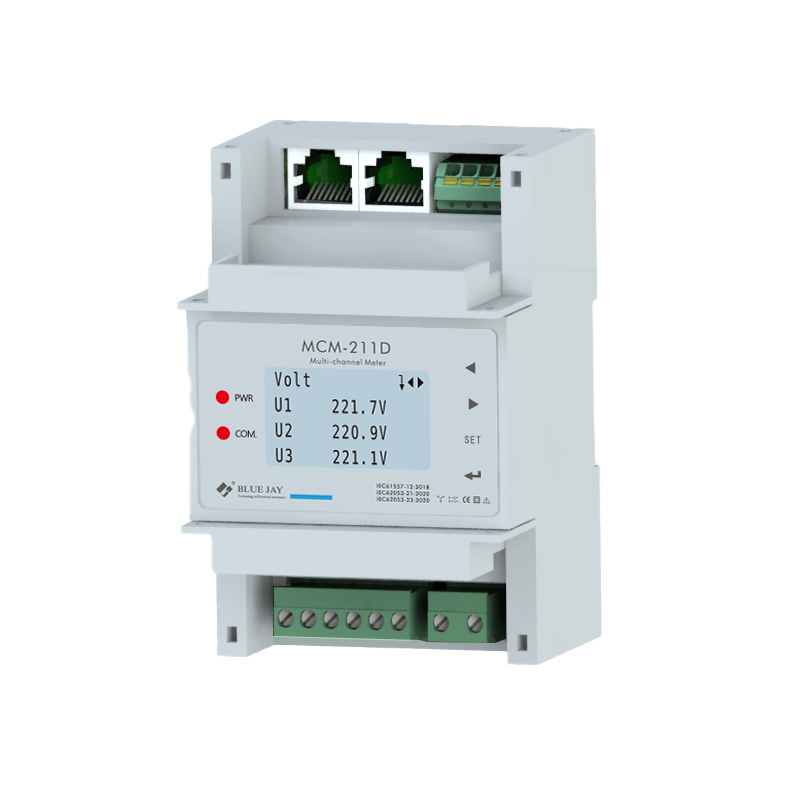

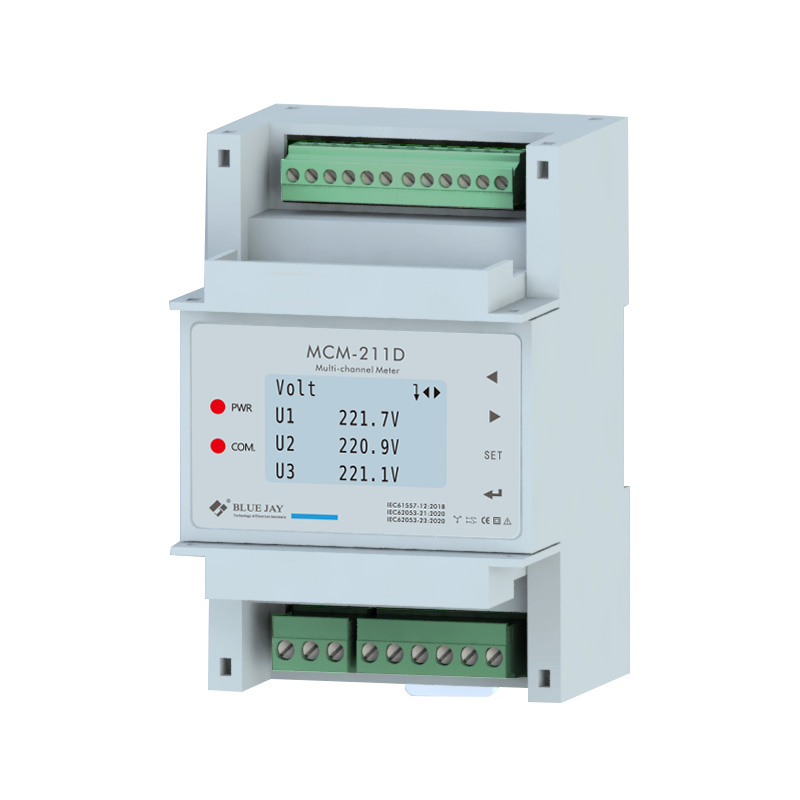

The MCM211D is a specialized energy meter engineered for industrial environments, capable of measuring three independent single-phase circuits simultaneously with a single metering function. It offers flexible current measurement support via 333 mV/100mA current transformers and ensures robust performance with CAT III 300V certification. Designed for seamless system integration, it features optional RS-485 or Ethernet connectivity for reliable data transmission in complex network setups.
Technical Specifications
- Measurement Channels
- 3 channels
- Circuit Type
- Single-phase

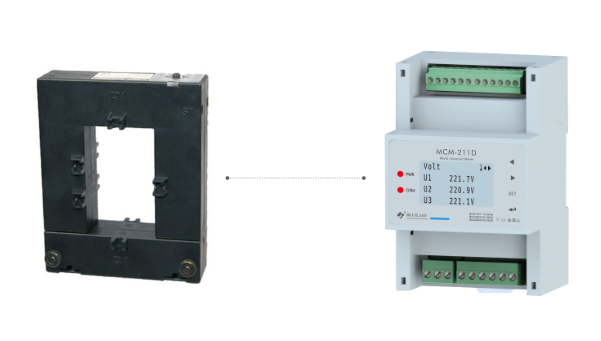

- Compatible Current Transformers
- 333 mV / 100 mA
Safety & Standards
Safety Rating
CAT III 300V
- Dielectric Strength
- 4 kV
- Compliance Standards
- IEC61557-12-2018IEC62053-21-2020IEC62053-23-2020

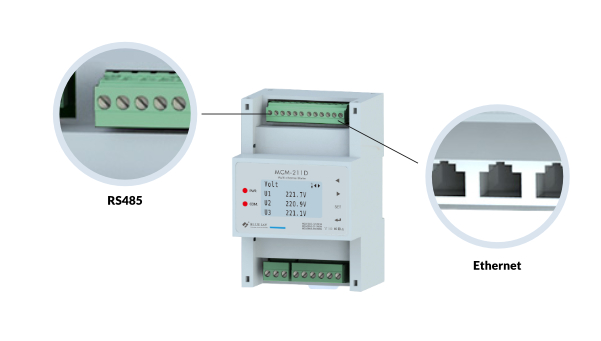

Connectivity
Communication Interfaces
- RS-485
- Ethernet
