MT-52 Welding Electrode
The MT-52 welding electrode is designed for high-efficiency welding, featuring a titanium iron powder type coating. It is suitable for flat or fillet position welding and can be used with both AC and DC power sources.

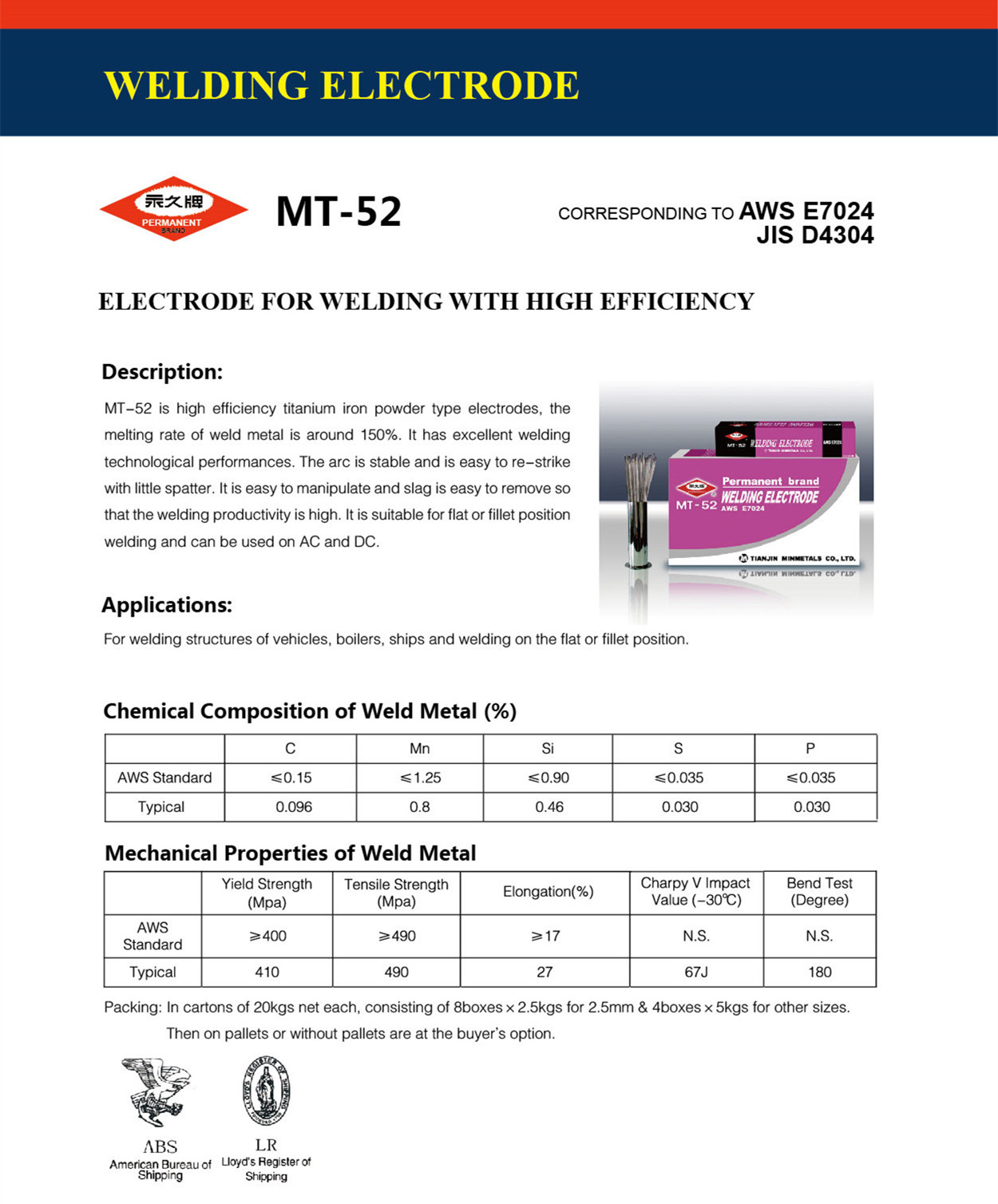

Technical Specifications
Product Overview
High-Efficiency Welding Electrode
The MT-52 is a high-efficiency, titanium iron powder type electrode engineered for superior welding performance. It features a high melting rate of approximately 150%, providing excellent arc stability and minimal spatter for increased productivity. Designed for ease of use, it allows for simple slag removal and is suitable for both AC and DC power sources in flat or fillet welding positions.
Technical Specifications
Mechanical Properties
| Property | Typical Value |
|---|---|
| Yield Strength | 410 MPa |
| Tensile Strength | 490 MPa |
| Elongation | 27% |
| Charpy V Impact (-30°C) | 67 J |
| Bend Test | 180 degrees |
Typical Chemical Composition (%)
| Element | Content |
|---|---|
| Carbon (C) | 0.096% |
| Manganese (Mn) | 0.8% |
| Silicon (Si) | 0.46% |
| Sulfur (S) | 0.030% |
| Phosphorus (P) | 0.030% |
- Compliance Standards
- AWS E7024JIS D4304
Performance Metrics
Key Performance Metrics
Usage & Applications
Common Applications
- Vehicle structures
- Boilers
- Shipbuilding
- General welding
- Power Source Compatibility
- ACDC
- Suitable Welding Positions
- FlatFillet
Logistics
Standard Packaging
Supplied in 20kg net weight cartons. The 2.5mm electrodes are packed as 8 boxes x 2.5kg, while other sizes are packed as 4 boxes x 5kg. Pallets are available as an optional add-on.
