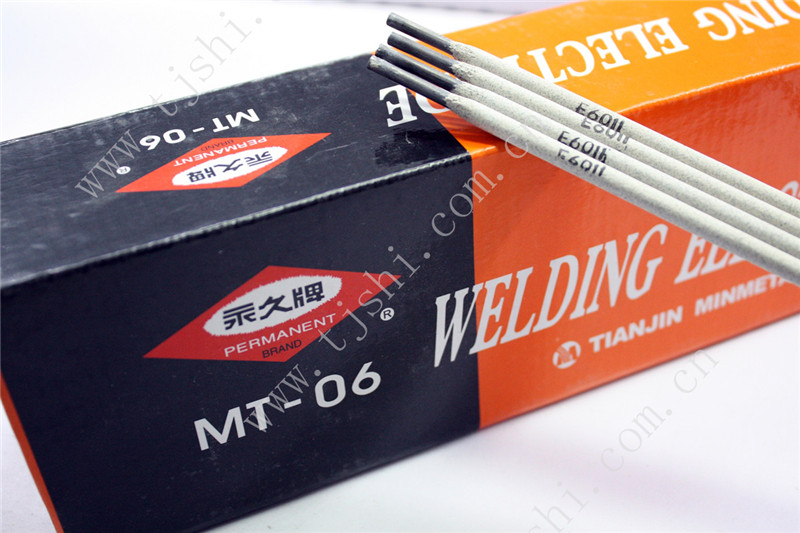

MT-06 Welding Electrode
The MT-06 welding electrode is designed for welding low carbon steel. It provides a deep penetrating, forceful arc, making it suitable for use in all welding positions, including overhead and vertical.

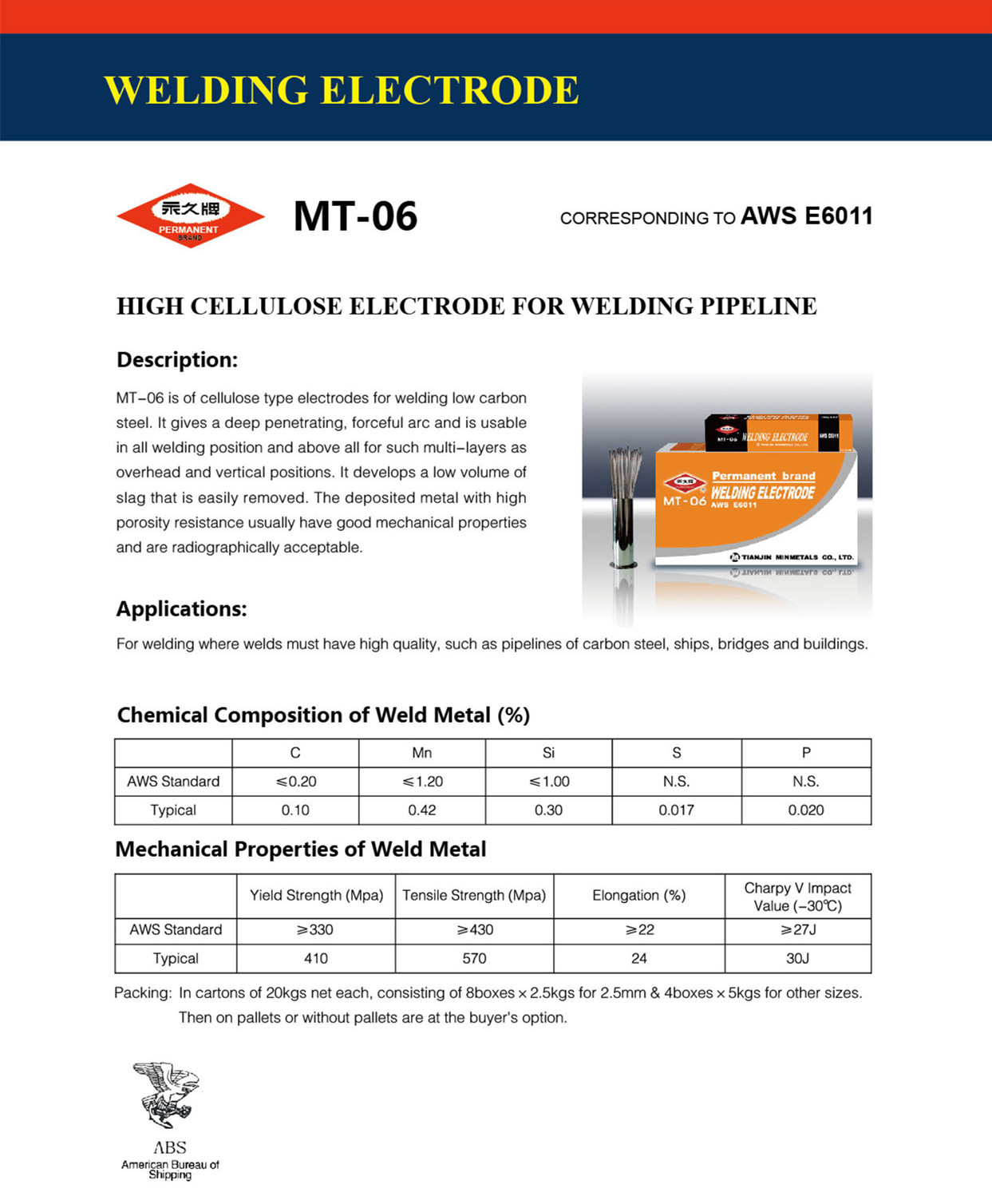

Technical Specifications
Product Overview
High-Performance Cellulose Electrode
The MT-06 is a high-quality cellulose-type welding electrode specifically engineered for welding low carbon steel. It features a deep-penetrating, forceful arc that ensures consistent performance across all welding positions, including vertical and overhead applications. Designed for multi-layer welding, it produces minimal, easily removable slag and offers excellent mechanical properties, making it an ideal choice for critical infrastructure projects.
Technical Specifications
Chemical Composition
| Element | Typical Value (%) |
|---|---|
| Carbon (C) | 0.1 |
| Manganese (Mn) | 0.42 |
| Silicon (Si) | 0.3 |
| Sulfur (S) | 0.017 |
| Phosphorus (P) | 0.02 |
Mechanical Properties
410 MPa
Yield Strength
570 MPa
Tensile Strength
24 %
Elongation
30 J
Impact Value (-30°C)
- AWS Standard
- E6011
Application & Performance
Suitable Applications
- Carbon steel pipelines
- Shipbuilding
- Bridge construction
- Building structures
- Welding Positions
- All positionsOverheadVertical
Logistics & Packaging
Box Configuration
- 8 boxes x 2.5kg (for 2.5mm electrodes)
- 4 boxes x 5kg (for other sizes)
- Standard Packing
- 20kg net cartons
