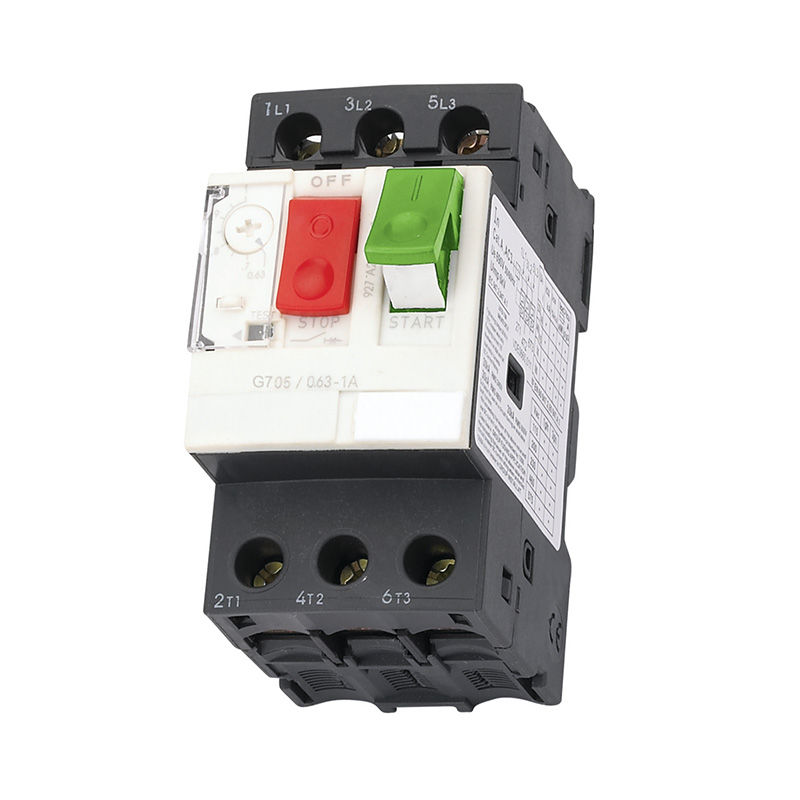

Motor Protection Circuit Breaker with Adjustable Current
This motor protection circuit breaker is designed for overload and short-circuit protection in electrical circuits. It features adjustable current settings and start and stop buttons for easy operation.
Technical Specifications
Product Overview
Reliable Motor Protection
This motor protection circuit breaker is engineered to provide comprehensive safety for electric motors, offering essential protection against overloads and short circuits. It features a user-friendly design with manual start and stop controls, making it suitable for a wide range of industrial and commercial electrical applications. With adjustable current settings and adherence to international safety standards, this device ensures consistent performance and operational reliability.
Technical Specifications
Adjustable Current Range
0.63 A
Min Current
1 A
Max Current
Ingress Protection Rating
IP55
- Compliance Standards
- IEC 947-2IEC 947-4-1CE
Connectivity

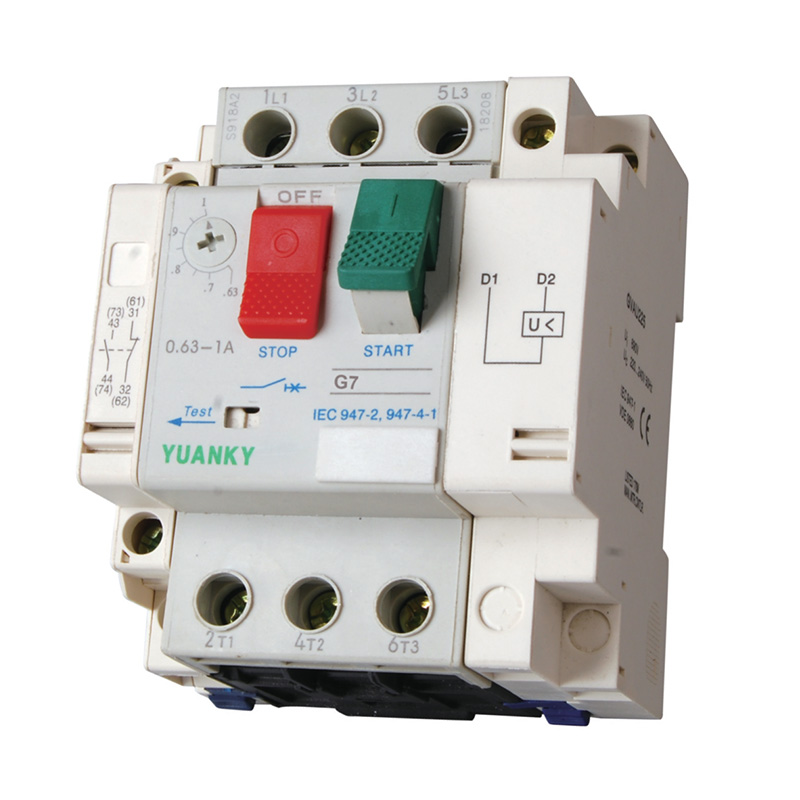

Terminal Layout
| Connection Type | Terminals |
|---|---|
| Line Connections | 1L1, 3L2, 5L3 |
| Load Connections | 2T1, 4T2, 6T3 |
| Undervoltage Release | D1, D2 |
Operational Controls
- Manual Start Button
- Manual Stop Button
- Test Function
