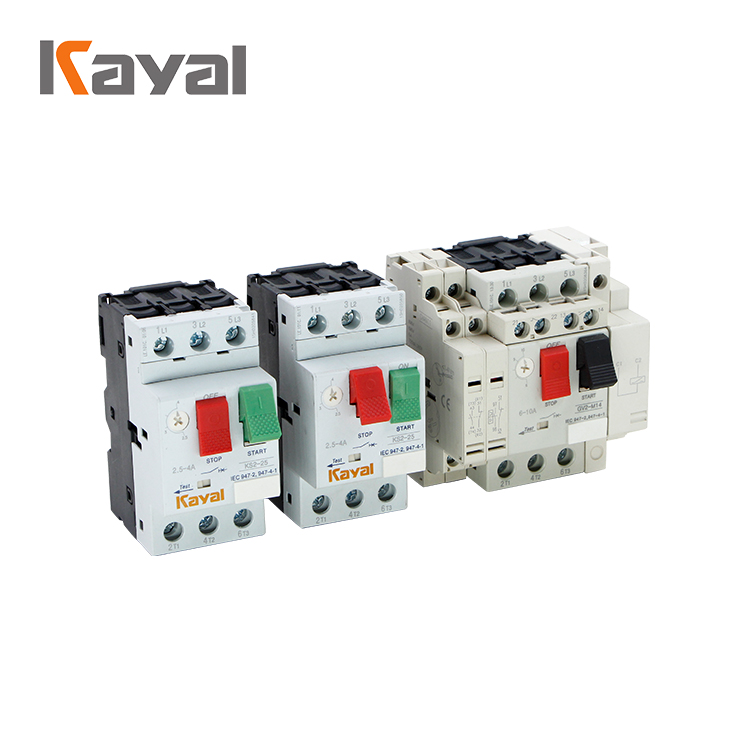

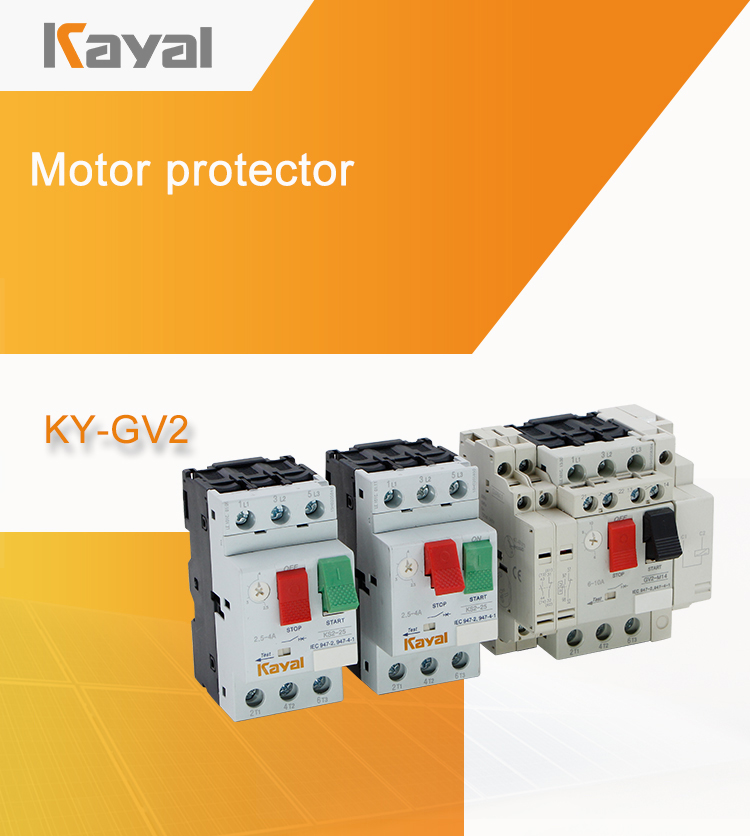

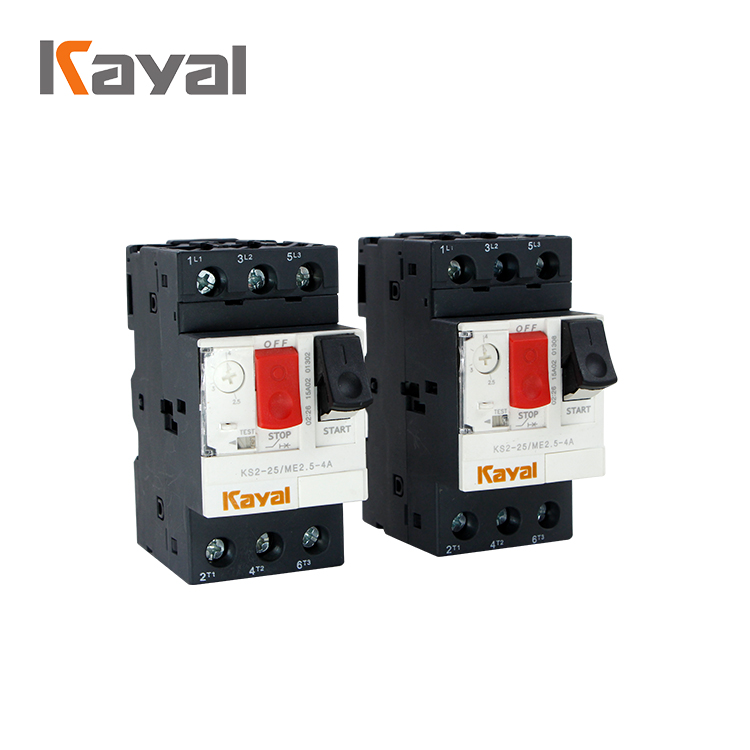

Motor Protection Circuit Breaker
This motor protection circuit breaker is designed for overload and short circuit protection of motors in AC power circuits up to 660V. It can also be used as a full voltage starter to start and cut off the motor under AC3 load.
Technical Specifications
Product Overview
Professional Motor Protection
This motor protection circuit breaker is designed to provide reliable overload and short-circuit protection for electric motors. Engineered for versatility, it functions as a full-voltage starter capable of starting and cutting off motors under AC3 load conditions. It is an essential safety component for power distribution networks and industrial automation systems, ensuring consistent performance and equipment longevity.
Technical Specifications
Load Category
AC-3
- Operating Frequency
- 50/60 Hz
- Maximum Voltage
- 660 V
- Current Range
- 0.1 - 80 A
Key Features

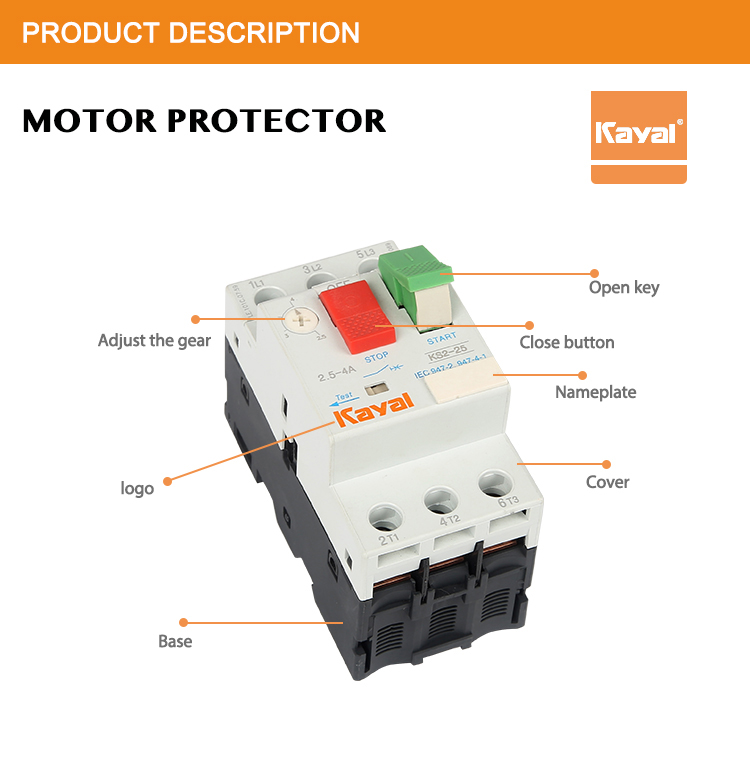

- Safety & Control
- Overload ProtectionShort Circuit ProtectionManual Start/StopTest FunctionAdjustable Current Settings
Applications
Typical Installation Environments
- Industrial Automation Systems
- Distribution Boxes
- Elevator Control Rooms
- Telecommunications Facilities
- Building Automation Systems
- Medical Equipment Power Centers
