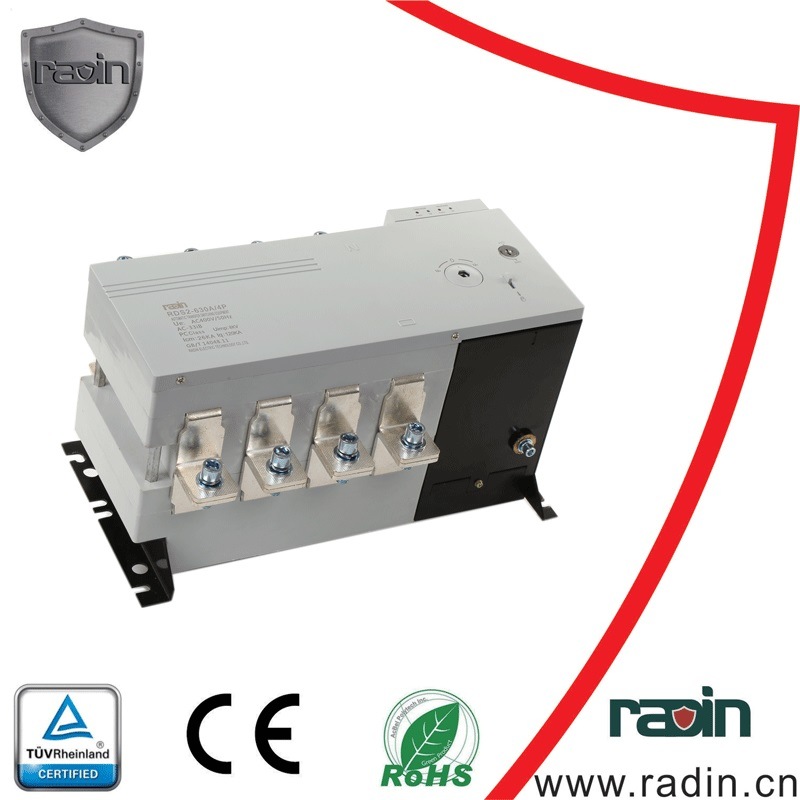

Automatic Transfer Switch
This PC class automatic transfer switch adopts a two-in-one-out design for easy wiring. It can be forced to the "0" position under emergency situations to match fire-linkage requirements.
Technical Specifications
Product Overview
Reliable Power Continuity
This automatic transfer switch is designed to ensure seamless power continuity for critical infrastructure and distribution systems. Engineered for robustness and advanced control, it facilitates reliable switching between power sources. The unit supports comprehensive monitoring and protection features, making it an ideal solution for demanding electrical environments.
Technical Specifications
- Rated Voltage
- 400 V
- Rated Frequency
- 50 Hz
- Impulse Withstand Voltage (Uimp)
- 6 kV
- Conditional Short-Circuit Current (Icm)
- 8 kA
- Rated Short-Time Withstand Current (Iq)
- 120 kA
Compliance & Standards
Equipment Class
PC ClassAC-33iB
- Certifications
- CETÜV RheinlandROHSGB/T14048.11
Control & Features
Key Control Capabilities
- Motor control voltage
- Voltage measuring
- Phase missing detect
- Generator control
- Fire-linkage control
- RS485 communication
- Frequency protection
- Engine exerciser
Operational Modes
- Transfer Delay Function
- Recovery Delay Function
- Under voltage transfer
- Over voltage transfer
