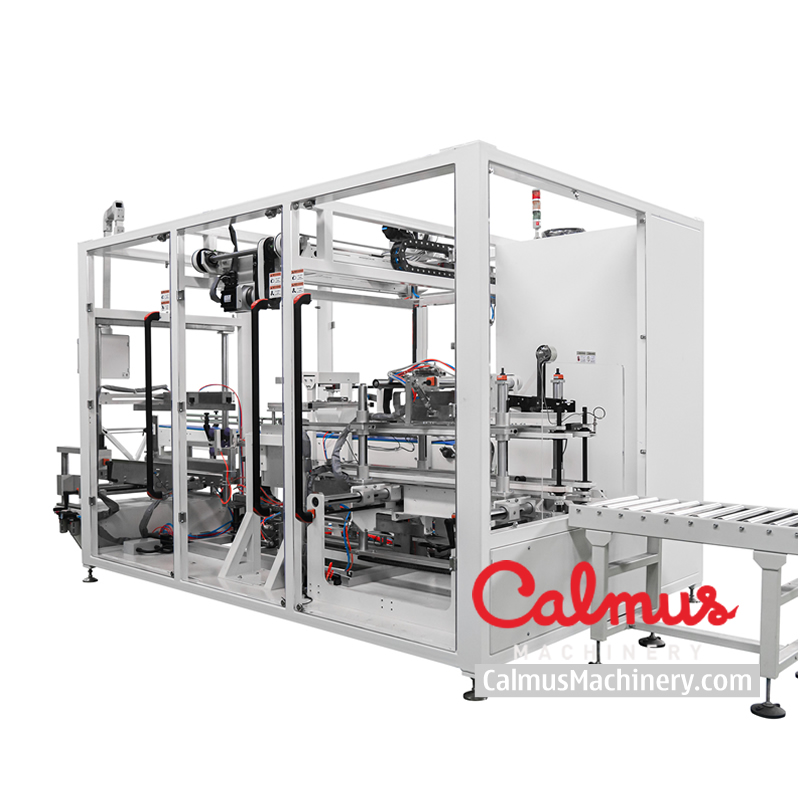

Monoblock Bag-in-Box Cartoning Machine
This monoblock cartoning machine is designed for bag-in-box packaging, integrating forming, loading, and sealing processes into a compact unit. It is easy to install and optimizes production with a smaller footprint.
Technical Specifications
Product Overview
Fully Automatic Monoblock Packaging
This fully-automatic form-load-seal monoblock cartoning machine is engineered for efficient bag-in-box packaging. It streamlines the production process by erecting flat-fold cartons, sealing the bases, loading filled bags, and sealing the tops with tape or hot-melt glue in a single, compact unit. Designed for versatility, the system can be customized to accommodate bag-in-box sizes ranging from 3 to 25 litres.
Technical Specifications
Production Capacity
5 boxes/min
Min Capacity
10 boxes/min
Max Capacity
- Power Consumption
- 5 kW
- Power Supply
- 3 phases, customized voltage
- Compressed Air Requirement
- 0.6-0.8 MPa
Physical Dimensions
- System Dimensions
- 5,300 x 2,800 x 2,800 mm
Operational Features
Safety and Monitoring
- System pause on empty consumables
- Alerts for tape/glue depletion
- Automatic process flow
- Key Capabilities
- Form-Load-Seal 3-in-1Compact FootprintEasy InstallationAutomatic AlertsCustomizable Size
