Automatic Carton Palletizer

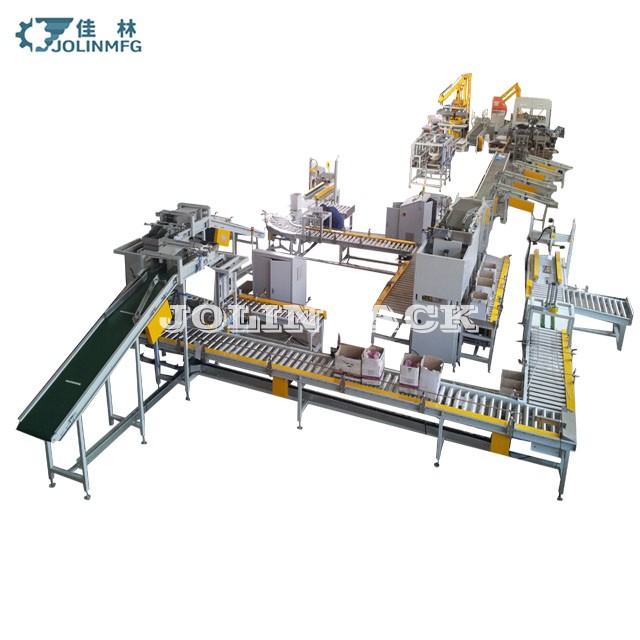

This automatic palletizer is designed for efficiently stacking cartons and cases onto pallets. It integrates a group organizing machine, palletizing machine, pallet storing machine, and conveyor systems.
Technical Specifications
Overview
High-Efficiency End-of-Line Palletizing Solution
This automatic carton palletizing system is designed to streamline end-of-line packaging by integrating group organizing, pushing, and stacking functions into a single automated workflow. Controlled by a sophisticated PLC and touch-screen interface, it ensures precise handling of bags and cartons while reducing manual labor requirements. The robust mechanical structure and pneumatic systems provide a reliable, high-throughput solution for demanding industrial environments.
Performance Metrics
Key Performance Indicators
30 units/min
Maximum Capacity
10 KW
Power Consumption
75 dB
Noise Level
Technical Specifications
- Processing Capacity
- 15-30 cartons or bags per minute
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
- Power Requirement
- 380V AC, 50Hz
Pneumatic System
- Pneumatic Pressure
- 0.5MPa - 0.6MPa
- Air Consumption
- 45 NM3/Hour
System Components
Integrated Modules
- Group organizing & pushing machine

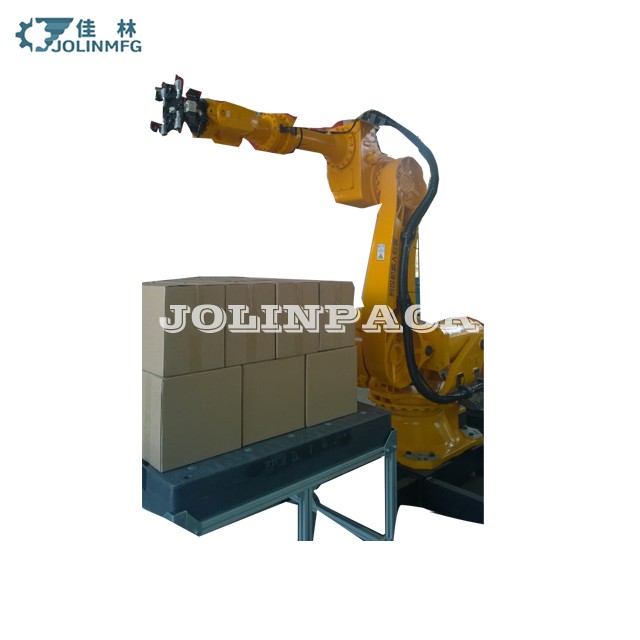

- Palletizing robot unit
- Pallet storage magazine
- Empty pallet conveyor
- Ready pallet discharge conveyor
Control & Operation
- Control System Components
- PLCTouch ScreenPneumatic Control
- Palletizing Configuration
- Customizable based on customer requirements
Safety & Compliance
Safety Equipment
- Light curtains
- Emergency stop buttons
- Hazard warning indicators
