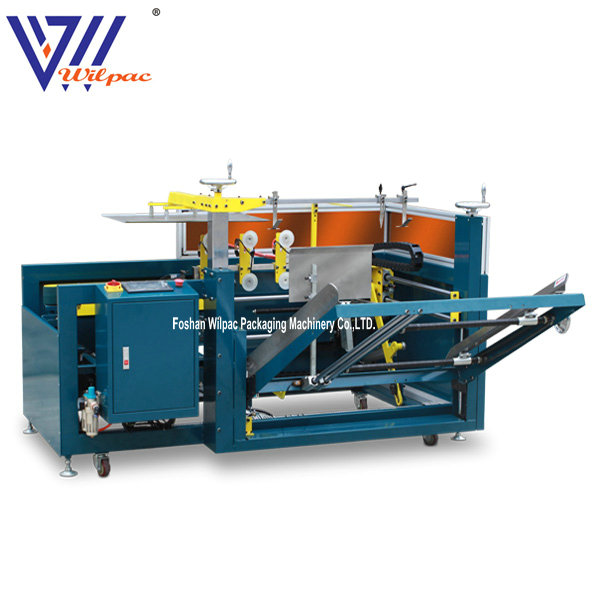

Automatic Carton Erector and Sealer
This automatic machine erects and seals cardboard cartons for efficient packaging. It features adjustable parameters to accommodate various carton sizes and shapes.
Technical Specifications
Overview
High-Efficiency Automatic Carton Processing
This automatic carton erector and sealer is engineered using advanced international technologies to provide a reliable solution for high-volume packaging lines. It features a vertical storage mode that allows for continuous feeding without stopping the machine, significantly boosting operational efficiency. Designed for durability and precision, the system integrates carton erecting, bottom folding, and sealing into a single, seamless process.
Performance Metrics
Performance Highlights
12 cartons/min
Max Opening Speed
450 kg
Machine Weight
2,000 W
Power Rating
Technical Specifications
- Model
- WP-CS
- Carton Inventory Capacity
- 1000 mm
- Required Air Pressure
- 6 Kg/cm³
- Air Consumption
- 450 NL/min
Dimensions & Compatibility
- Applicable Carton Sizes (L*W*H)
- (250~450) * (150~400) * (100~400) mm
- Compatible Tape Widths
- 48mm60mm75mm
- Machine Dimensions
- 2000 * 1900 * 1450 mm
Operational Features
Core Capabilities
- Vertical carton paper storage for non-stop feeding
- One-time shaping of fold bottom and sealing bottom
- Manual adjustment for size changes (1-2 minutes)
- Plexiglass protection cap for operator safety
- Independent operation or integration into automatic lines
Safety & Construction
Plexiglass ShieldPneumatic ComponentsVibration-Free OperationCompact Design
Utility Requirements
Power Requirements
| Parameter | Value |
|---|---|
| Voltage | 220V |
| Frequency | 50/60Hz |
| Power | 2000W |
