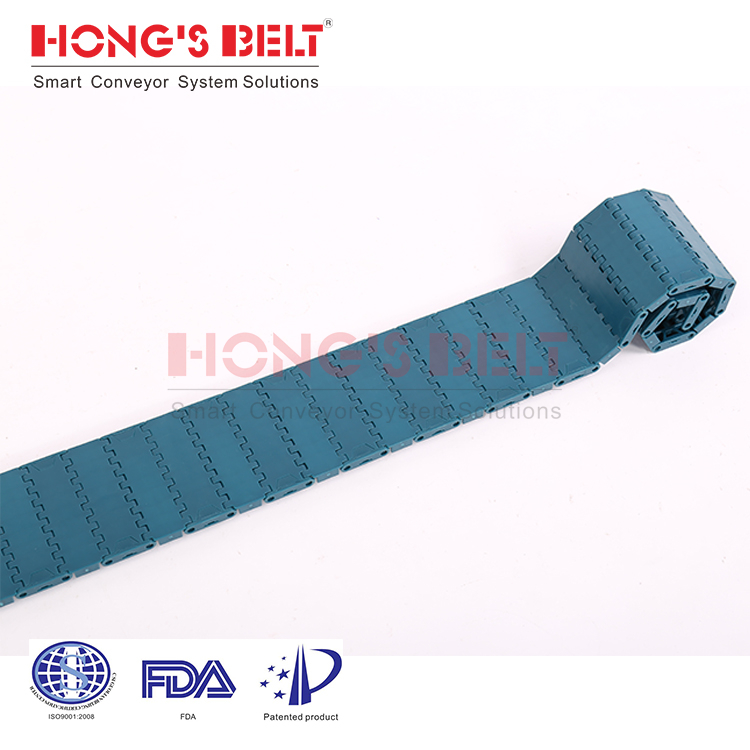

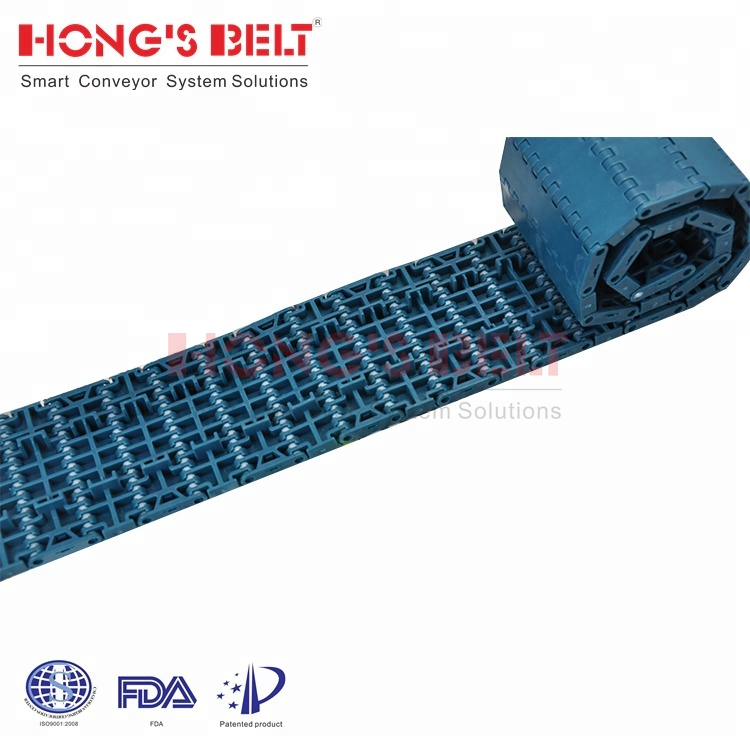

Modular Plastic Conveyor Belt for Beverage Industry
This modular plastic conveyor belt is designed for the beverage industry. It provides a reliable and efficient solution for conveying bottles, cans, and other beverage containers.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is engineered specifically for the rigorous demands of the beverage and food processing industries. It features a robust design that supports heavy loads while offering excellent resistance to wear, chemicals, and temperature fluctuations. With a maintenance-free structure and easy-to-clean properties, this belt helps optimize production efficiency and ensures high standards of hygiene in manufacturing environments.
Technical Specifications
Available Colors
WhiteBlueGrayNatureDark-brown
- Pitch
- 25.4 mm
- Thickness
- 8.6 mm
- Minimum Width
- 85 mm
- Rod Diameter
- 4.5 mm
- Open Area
- 0%
- Available Materials
- PPPOMPEPA
Performance & Features
Maximum Load Capacity
1.2 tons/m²
Max Load
Design Features
- Floating in water
- Food defrosting capable
- Maintenance free
- Easy to clean
- Working Temperature
- -40°C to 260°C
- Certifications
- FDAEU Approved
Compatibility
Sprocket Configuration
| Component | Specification |
|---|---|
| Sprocket Sizes | 12T-2R, 18T-2R, 20T-2R |
| Bore Types | Square, Round |
Applications
Industry Applications
- Meat & Poultry
- Seafood
- Bakery
- Snack Food
- Fruit & Vegetables
- Automotive
- Packaging
- Printing/Paper
- Can Manufacturing
