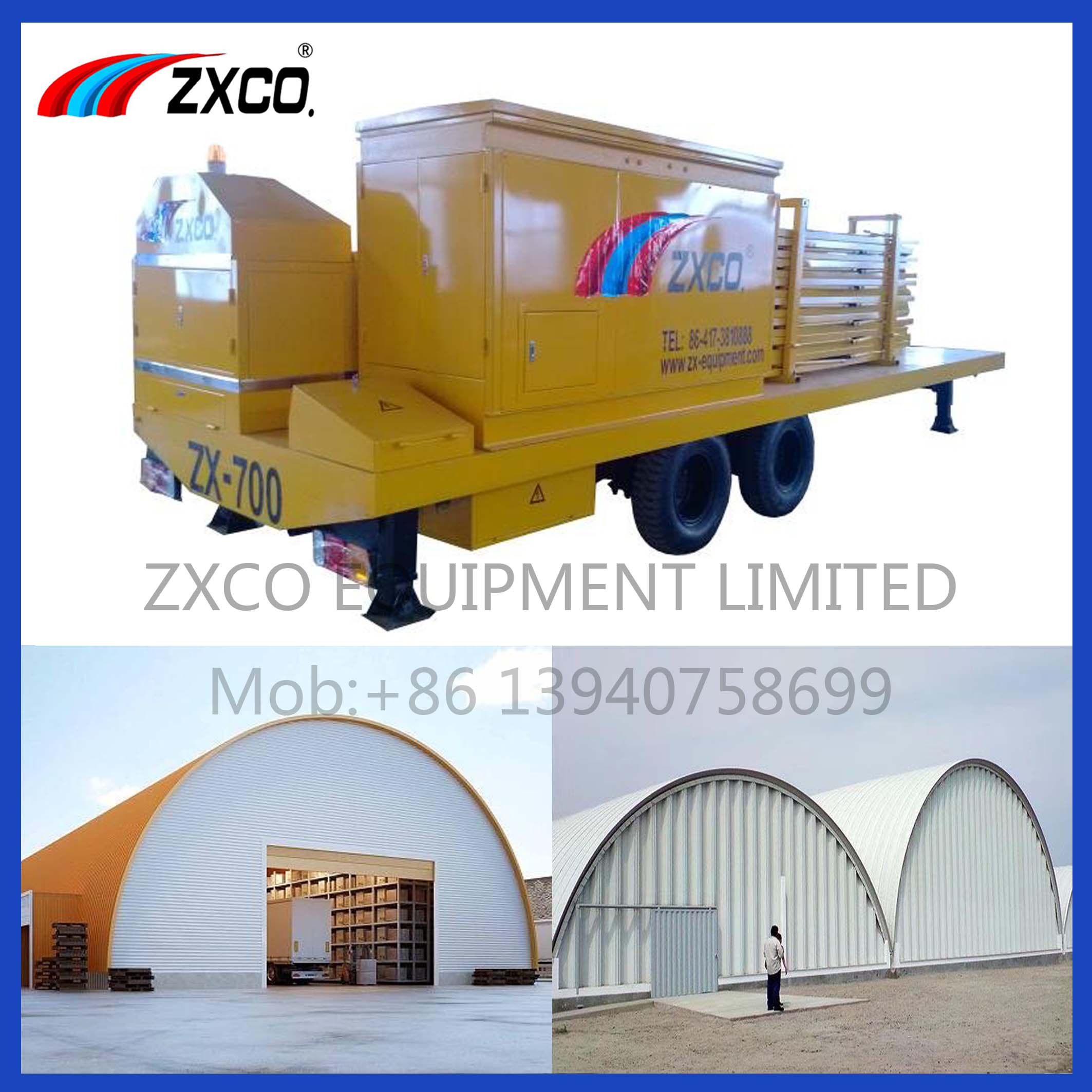

Mobile Steel Arch Roll Forming Machine
This mobile unit is designed for efficient production of curved steel structures used in arched buildings and shelters. Equipped with a roll forming system, it shapes steel sheets into desired profiles for large, self-supporting structures.
Technical Specifications
Product Overview
Mobile Arch Roll Forming Solution
This mobile steel arch roll forming machine is engineered for the efficient, on-site production of curved steel structures. By transforming PPGI sheets into interlocking arch grooves, it enables the rapid construction of large-span buildings without the need for traditional frame architecture. This system is highly versatile, offering a cost-effective and durable solution for diverse construction projects requiring wide, clear-span spaces.
Technical Specifications
- Model
- ZX-700
- Board Width
- 914 mm
- Effective Width
- 700 mm
Performance Metrics
Proper Span Range
7 m
Minimum Span
24 m
Maximum Span
- Material Usage Rate
- 76.6 %
Key Features
Construction Advantages
- Fast construction speed
- Low cost
- Long service life
- Large span capability
- Minimal internal supports required
- Capabilities
- Mobile DeploymentOn-site ProductionTrailer MountedInterlocking Arch SystemSelf-Supporting Structures
