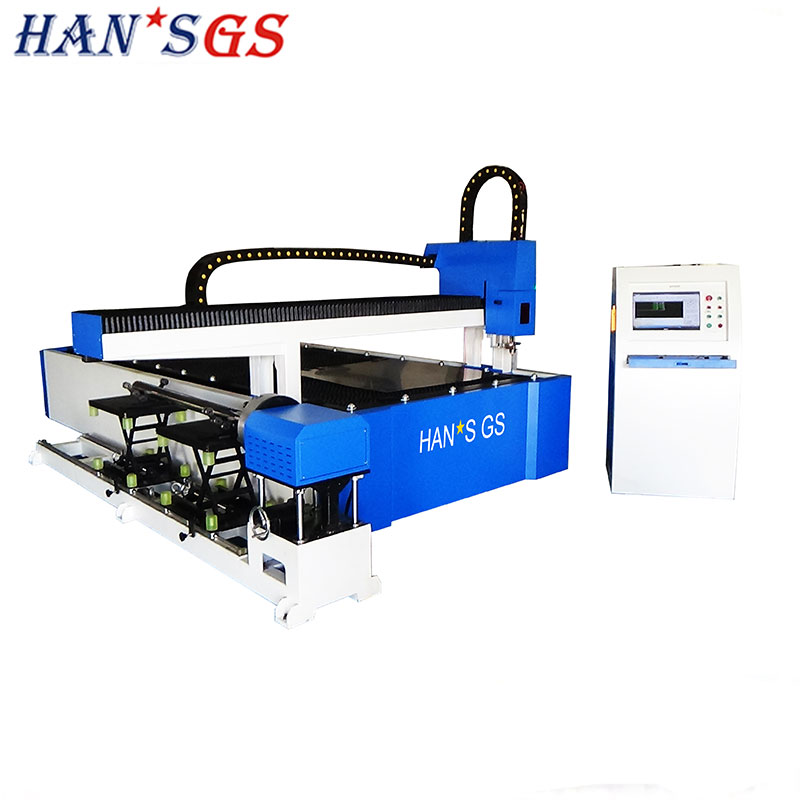

Metal Tube Fiber Laser Cutter
This fiber laser cutter is designed with a machine bed gantry and double drive servo motor. The crossbeam is made of high-intensity aluminum for light weight and rigidity.
Technical Specifications
Overview

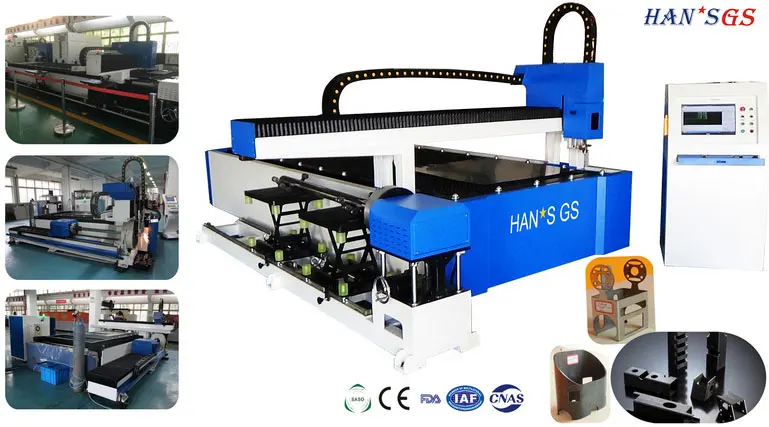

High-Performance CNC Metal Tube & Plate Fiber Laser Cutter
This versatile fiber laser cutting system is engineered for high-precision processing of both metal tubes and plates. Featuring a robust gantry design with a double rack and guide system, it ensures exceptional stability and shock resistance during high-speed operations. The machine utilizes a high-intensity aluminum crossbeam and a precision-milled welding frame to deliver long-term movement precision and reliability for industrial fabrication.
Technical Specifications
Laser Source Output Power
- 500W
- 1000W
- 1500W
- 2000W
- 3000W
Cutting Area (L * W)
- 3000 * 1500 mm
- 4000 * 1500 mm
- 6000 * 1500 mm
- Available Models
- GS-LFTP3015GS-LFTP4015GS-LFTP6015
Tube Processing Capabilities
- Maximum Tube Diameter
- 200 mm
- Max Tube Processing Length
- 3 m

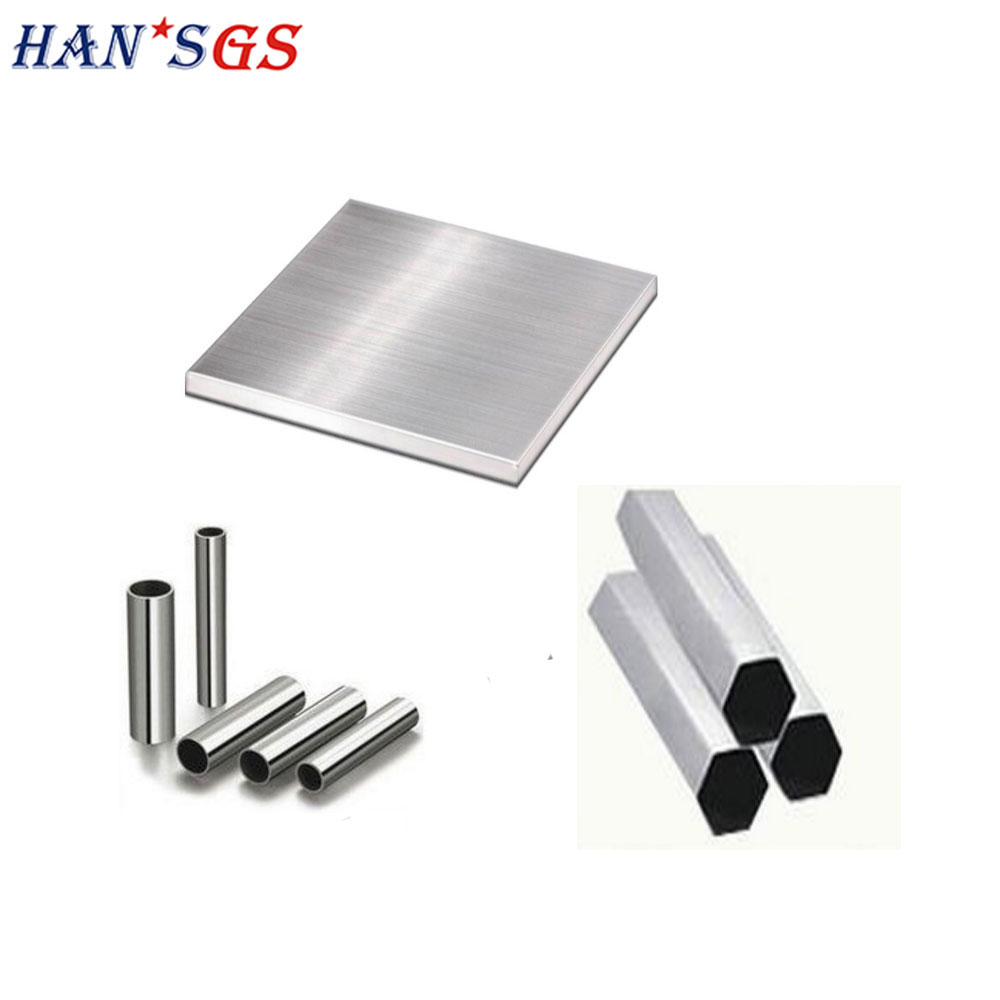

- Supported Tube Profiles
- Round TubeSquare TubeHexagonal TubeU-shaped Profile
Mechanical Design
Machine Bed & Gantry
- Gantry design with double rack and guide
- Double drive with servo motor
- Integral cast aluminum crossbeam
- Welding type frame with manual aging treatment
- Precision processed by gantry type milling machine
- Linear Guide System
- High-precision square linear guides for low wear and long service life.
Compliance & Safety
Certifications
CEFDAIAFCNAS
